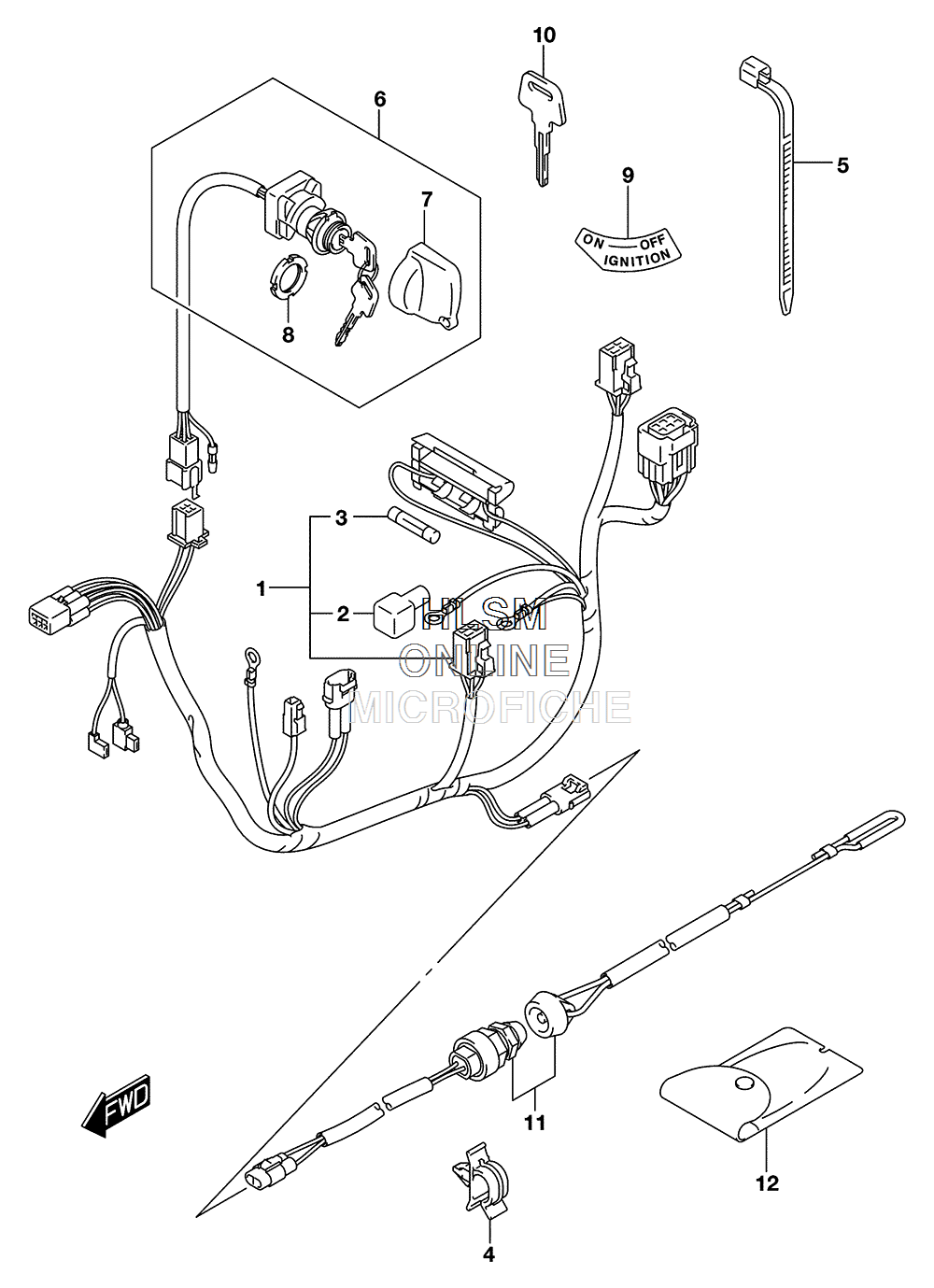

ELECTRICAL - WIRING HARNESS для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
136610-43G00 HARNESS, WIRINGHARNESS, WIRING
-
233624-03A00 ...CAP, BATTERY...CAP, BATTERY
-
309481-10001 ...FUSE (10A)...FUSE (10A)
-
409403-10319 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
509407-14403 CLAMP, WIRING HARNESS (L:125)CLAMP, WIRING HARNESS (L:125)
-
637110-40B00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
737142-19B00 ...MASCOT, KEY...MASCOT, KEY
-
837112-24500 ...NUT, IGNITION...NUT, IGNITION
-
937139-40B03 PLATE, CONTROL IDENTIFIPLATE, CONTROL IDENTIFI
-
1037146-19B00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
1037146-19B10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
-
1037146-19B20 KEY, BLANK (TYPE:E) (OPT)KEY, BLANK (TYPE:E) (OPT)
-
1037146-19B30 KEY, BLANK (TYPE:F) (OPT)KEY, BLANK (TYPE:F) (OPT)
-
1137820-43G00 SWITCH ASSY, EMERGENCYSWITCH ASSY, EMERGENCY
-
1237910-04200 CASE, EMERGENCY SW STARTINGCASE, EMERGENCY SW STARTING
