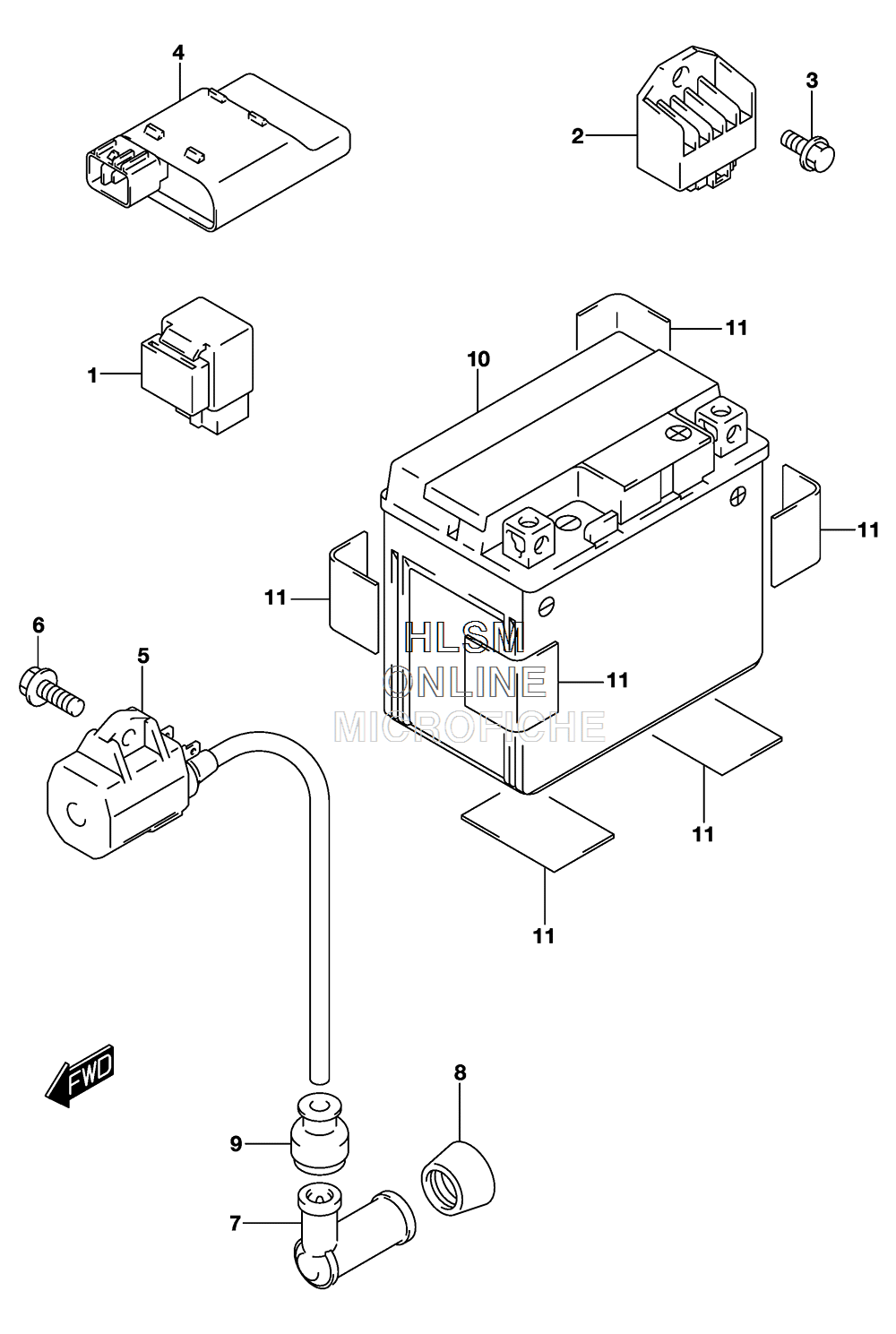

ELECTRICAL для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
131800-40B01 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
232800-41H00 RECTIFIER ASSYRECTIFIER ASSY
-
301550-0612B BOLT, RECTIFIERBOLT, RECTIFIER
-
432900-43G10 CDI UNITCDI UNIT
-
533410-36G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
602162-0620B SCREW, IGNITIOIN COIL EASCREW, IGNITIOIN COIL EA
-
733510-22010 CAP, SPARK PLUGCAP, SPARK PLUG
-
833541-38210 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
933542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1033610-40B20 BATTERY ASSY (YTX5L-BS,12V4AH)BATTERY ASSY (YTX5L-BS,12V4AH)
-
1133652-36100 CUSHION, BATTERY (30X40X2)CUSHION, BATTERY (30X40X2)
