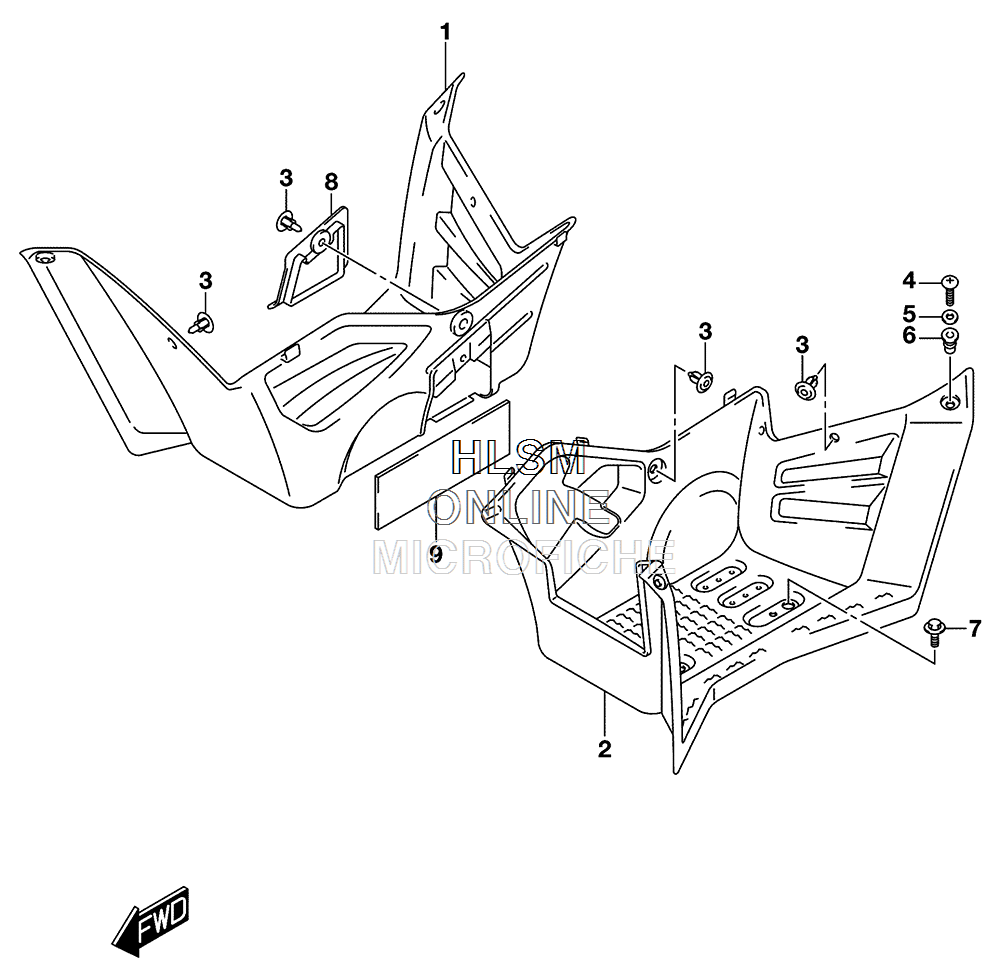

FOOTREST W/MUDGUARD для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
147111-43G00-291 COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
247211-43G00-291 COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
309409-07333 CLIPCLIP
-
402142-0520B SCREWSCREW
-
508322-0105B WASHERWASHER
-
609159-05019 NUTNUT
-
709111-06081 BOLTBOLT
-
847121-43G00 LID, RIGHT HANDLID, RIGHT HAND
-
963262-43G00 SHIELD, COVERSHIELD, COVER
