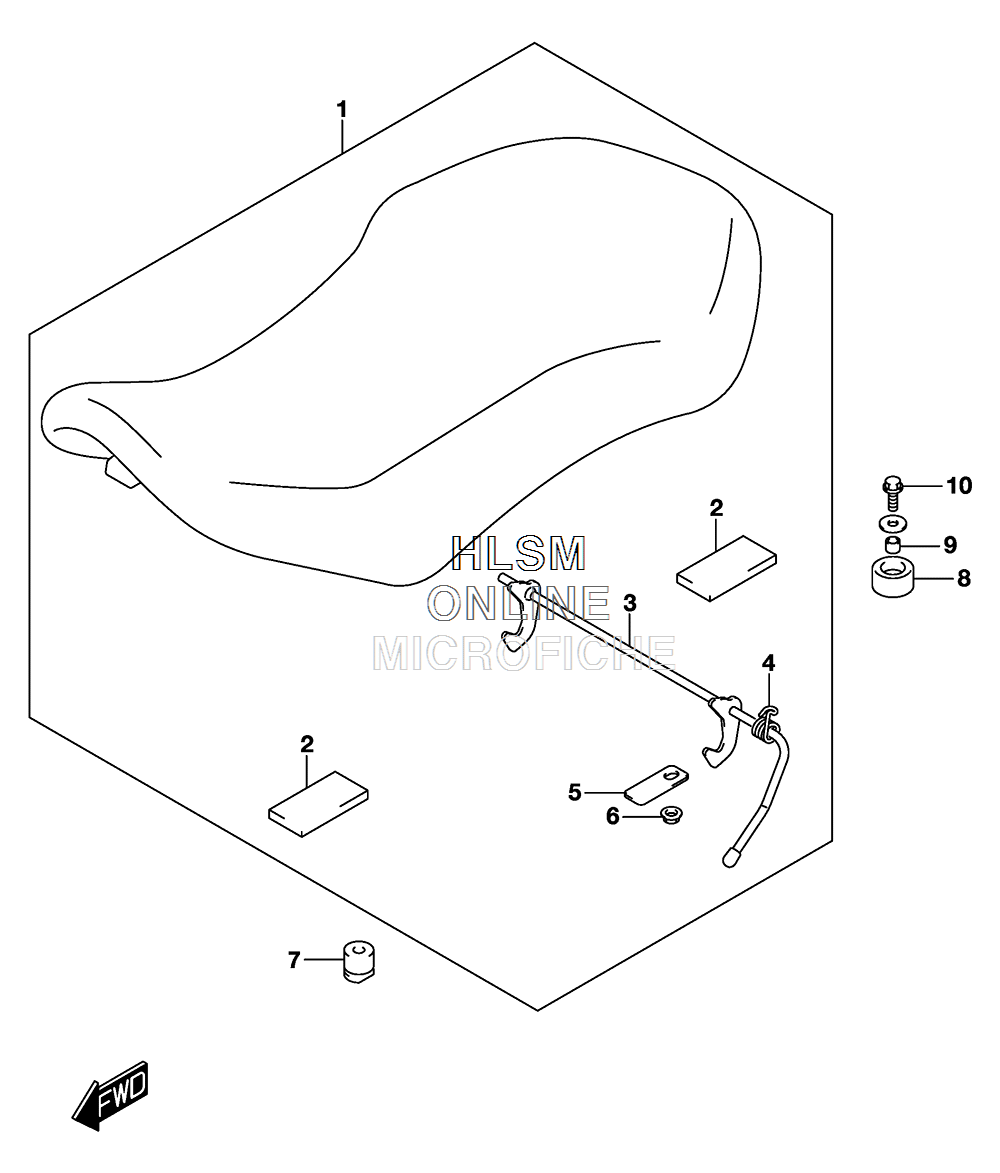

SEAT для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
145100-43G00-6BY SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245146-43G00 ...CUSHION...CUSHION
-
345210-43G00 ...CLAMP, SEAT LOCK...CLAMP, SEAT LOCK
-
445135-43F00 ...SPRING, SEAT LOCK...SPRING, SEAT LOCK
-
545222-43G00 ...PLATE, SEAT LOCK RIGHT HAND...PLATE, SEAT LOCK RIGHT HAND
-
608316-1006B ...NUT...NUT
-
745141-43G00 CUSHION, SEAT MOUNT FRONTCUSHION, SEAT MOUNT FRONT
-
845141-09F00 CUSHION, SEAT MOUNT REARCUSHION, SEAT MOUNT REAR
-
909180-06261 SPACERSPACER
-
1001550-0616B BOLTBOLT
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CENTER FENDER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CVT CASE
- CYLINDER
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FOOTREST W/ BUMPER
- FOOTREST W/MUDGUARD
- FRAME
- FRAME (CANADA)
- FRAME CENTER COVER
- FUEL COCK
- FUEL TANK
- GASKET SET
- HANDLEBAR - LEVERS / SWITCHES (LEFT)
- HANDLEBAR - LEVERS / SWITCHES (RIGHT)
- HANDLEBAR W/ CABLES
- KNUCKLE W/ TIE RODS
- LABELS
- LABELS (CANADA)
- MAGNETO
- MAGNETO COVER
- MUFFLER
- REFLECTOR (CANADA)
- • SEAT
- SEAT (CANADA)
- STARTER - RECOIL
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR
