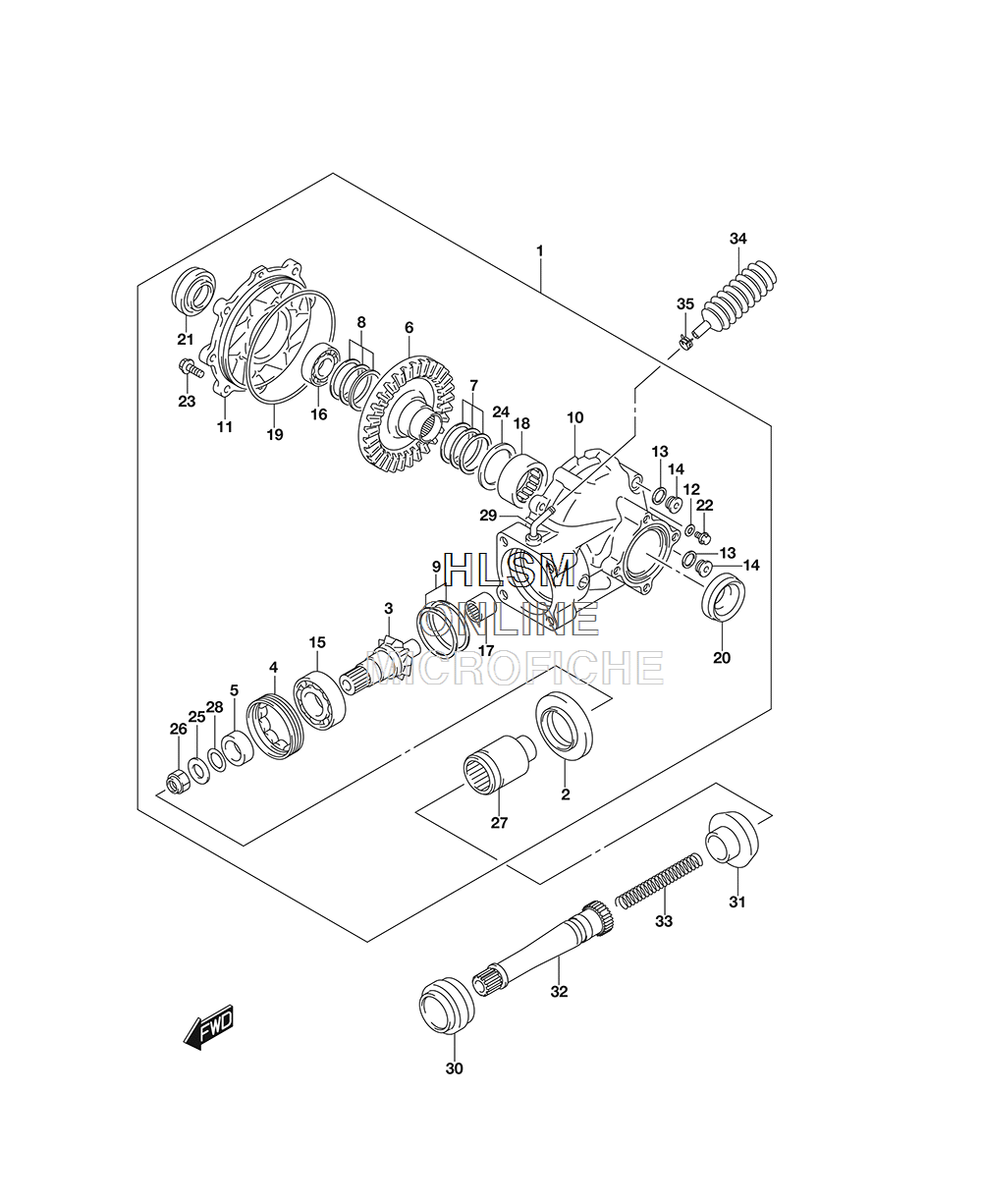

DIFFERENTIAL - REAR для Suzuki LT-F400FL8 KINGQUAD 400FSI - 2018 года выпуска
-
№АртикулНазвание
-
127410-38F50 CASE ASSY, REAR FINALCASE ASSY, REAR FINAL
-
227156-27H00 ...SEAL, FINAL DRIVEN BRG OIL...SEAL, FINAL DRIVEN BRG OIL
-
327311-27HM0 ...GEAR, FINAL DRIVEN...GEAR, FINAL DRIVEN
-
427312-38F00 ...STOPPER, FINAL DRIVEN BEARIN...STOPPER, FINAL DRIVEN BEARIN
-
527316-38FM0 ...SPACER, REAR FINAL DRIVEN...SPACER, REAR FINAL DRIVEN
-
627321-27HM0 ...GEAR, FINAL DRIVEN...GEAR, FINAL DRIVEN
-
727326-09810 ...SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)...SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
-
827326-18810 ...SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)...SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
-
927445-24810 ...SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)...SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)
-
1027450-27HM0 ...CASE, RR FINAL GR...CASE, RR FINAL GR
-
1127461-38FM0 ...CASE, RR FINAL DRIVEN, (RH)...CASE, RR FINAL DRIVEN, (RH)
-
1209168-06018 ...GASKET (6.2X13X1.2)...GASKET (6.2X13X1.2)
-
1309168-16002 ...GASKET (16X22X2)...GASKET (16X22X2)
-
1409248-16012 ...PLUG (16X8)...PLUG (16X8)
-
1527405-38FN0 ...BEARING, FINAL DRIVEN GEAR...BEARING, FINAL DRIVEN GEAR
-
1627405-38FP0 ...BEARING, FINAL DRIVEN, (RH)...BEARING, FINAL DRIVEN, (RH)
-
1727405-38FR0 ...BEARING, FINAL DRIVEN PILOT...BEARING, FINAL DRIVEN PILOT
-
1827405-38FS0 ...BEARING, FINAL DRIVEN, (LH)...BEARING, FINAL DRIVEN, (LH)
-
1927405-38FT0 ...O RING, BEARING CASE, (RH)...O RING, BEARING CASE, (RH)
-
2009283-38009 ...OIL SEAL (38X54X6)...OIL SEAL (38X54X6)
-
2109283-42011 ...OIL SEAL (42X62X7)...OIL SEAL (42X62X7)
-
2227401-38FM0 ...BOLT, OIL CHECK...BOLT, OIL CHECK
-
2327401-38FN0 ...BOLT, RR FINAL GR...BOLT, RR FINAL GR
-
2427407-38FN0 ...WASHER, FINAL DRIVEN, (LH)...WASHER, FINAL DRIVEN, (LH)
-
2509160-16026 ...WASHER (16X30X3)...WASHER (16X30X3)
-
2609159-16003 ...NUT...NUT
-
2727171-27HM0 ...COUPLING, RR FINAL...COUPLING, RR FINAL
-
2827405-27HM0 ...O RING, COUPLING...O RING, COUPLING
-
2909364-08009 ...UNION...UNION
-
3027153-27H00 BOOT, RR PROP SHAFTBOOT, RR PROP SHAFT
-
3127153-27H20 BOOT, JOINT SHAFTBOOT, JOINT SHAFT
-
3227155-27H10 SHAFT, RR PROPSHAFT, RR PROP
-
3327192-31G10 SPRING, REAR PROP SHAFTSPRING, REAR PROP SHAFT
-
3427491-38F00 CASE, BREATHERCASE, BREATHER
-
3509401-08411 CLIPCLIP
