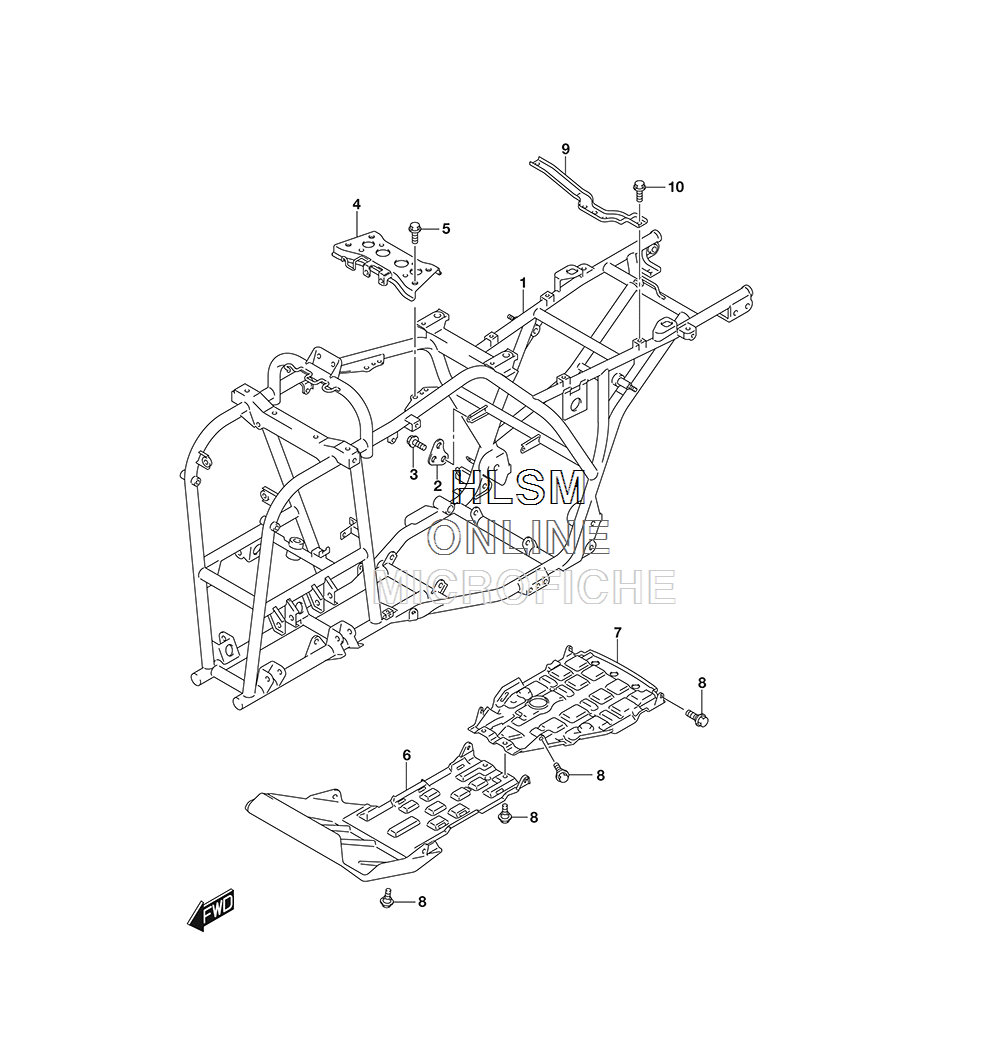

FRAME для Suzuki LT-F400FL8 KINGQUAD 400FSI - 2018 года выпуска
-
№АртикулНазвание
-
141100-27H11-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
241981-38FA0 PLATE, ENG MTG REAR (RH)PLATE, ENG MTG REAR (RH)
-
309103-08441 BOLT (8X16)BOLT (8X16)
-
441990-27H10 PLATE, ENG MTG UPPERPLATE, ENG MTG UPPER
-
509103-08441 BOLT (8X16)BOLT (8X16)
-
642521-27H00 PROTECTOR, FRONTPROTECTOR, FRONT
-
742511-38F02 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
809111-06063 BOLT (6X12)BOLT (6X12)
-
941561-27H00 PLATE, BATTERYPLATE, BATTERY
-
1001550-0616A BOLTBOLT
