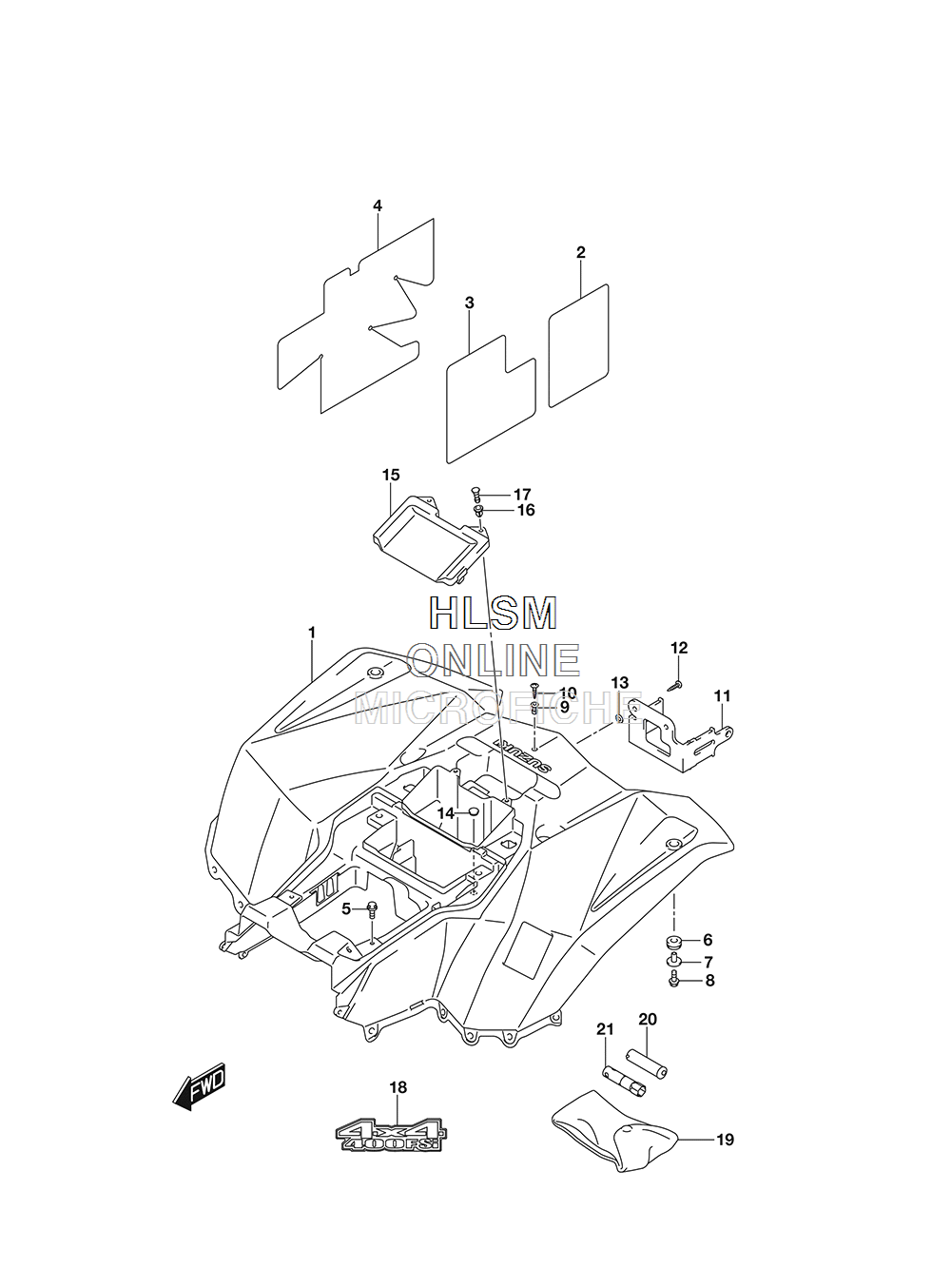

FENDER - REAR для Suzuki LT-F400FL8 KINGQUAD 400FSI - 2018 года выпуска
-
№АртикулНазвание
-
1-163111-27H02-YT9 FENDER, REAR (YT9 - RED)FENDER, REAR (YT9 - RED)
-
1-263111-27H02-YLG FENDER, REAR (YLG - GREEN)FENDER, REAR (YLG - GREEN)
-
263122-27H20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
363123-27H20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
463124-27H20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
509116-06006 BOLT (6X16)BOLT (6X16)
-
609320-11021 CUSHIONCUSHION
-
709169-06074 WASHERWASHER
-
801550-0625A BOLTBOLT
-
909159-05019 NUTNUT
-
1002142-0520B SCREWSCREW
-
1147413-27H00 PLATE, CDI UNITPLATE, CDI UNIT
-
1209229-04020 RIVETRIVET
-
1308322-0104A WASHERWASHER
-
1409250-08018 CAP (OD:16)CAP (OD:16)
-
1563112-27H00 COVER, REAR FENDERCOVER, REAR FENDER
-
1609409-08329 GROMMETGROMMET
-
1709409-08330 PLUNGERPLUNGER
-
1868171-27HG0-JLJ EMBLEM (JLJ - WHITE/GREEN/GRAY/RED/GRAY)EMBLEM (JLJ - WHITE/GREEN/GRAY/RED/GRAY)
-
1909800-21057 TOOL ASSYTOOL ASSY
-
2096200-18A02 GAUGE ASSY, AIRGAUGE ASSY, AIR
