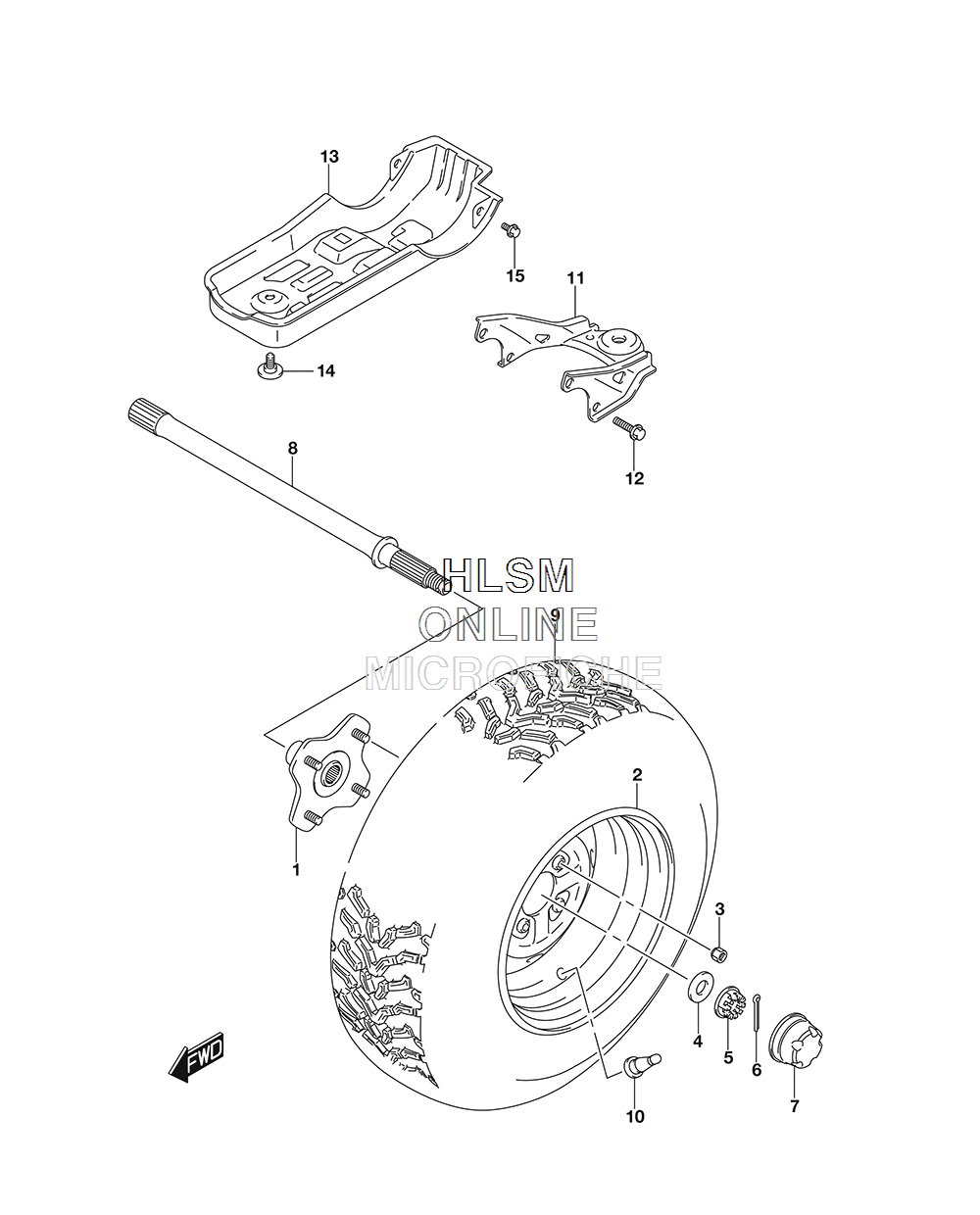

WHEEL - LEFT REAR для Suzuki LT-F400FL8 KINGQUAD 400FSI - 2018 года выпуска
-
№АртикулНазвание
-
164110-38F30 HUB, REAR WHEEL (LH)HUB, REAR WHEEL (LH)
-
265310-38F40-291 RIM, REAR WHEEL (12X7.5AT) (291 - BLACK)RIM, REAR WHEEL (12X7.5AT) (291 - BLACK)
-
309140-10021 NUTNUT
-
464723-38F00 WASHERWASHER
-
509141-20008 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
864712-38F20 AXLE, REAR (LH)AXLE, REAR (LH)
-
965110-31G30 TIRE, REAR (AT25X10-12) (AT489 CARLISLE)TIRE, REAR (AT25X10-12) (AT489 CARLISLE)
-
1043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1195210-38F10 PLATE, TRAILER TOWPLATE, TRAILER TOW
-
1209103-10422 BOLT (10X35)BOLT (10X35)
-
1361391-38F10 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1461393-09F10 BOLT, FRONTBOLT, FRONT
