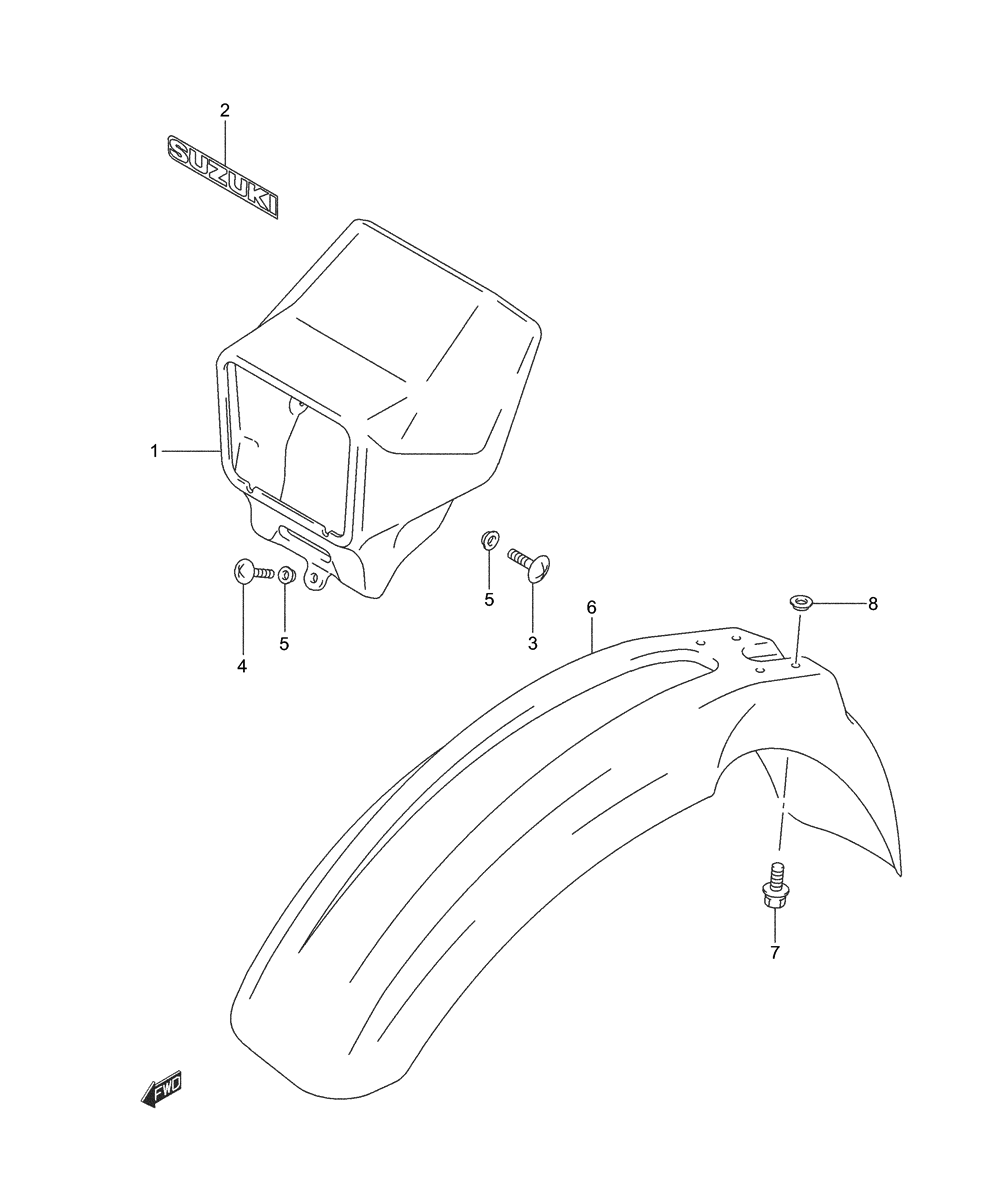

FENDER - FRONT для Suzuki DR-Z400SK1 - 2001 года выпуска
-
№АртикулНазвание
-
151811-32E00-30H COVER, HEAD LAMP (WHITE, 30H FOR N9J)COVER, HEAD LAMP (WHITE, 30H FOR N9J)
-
151811-32E00-YR1 COVER, HEAD LAMP (YELLOW, YR1 FOR YR1)COVER, HEAD LAMP (YELLOW, YR1 FOR YR1)
-
268171-44B00-8YM EMBLEM, SUZUKI (FOR N9J)EMBLEM, SUZUKI (FOR N9J)
-
268171-44B00-FR3 EMBLEM, SUZUKI (FOR YR1)EMBLEM, SUZUKI (FOR YR1)
-
302142-06123 SCREW, SIDESCREW, SIDE
-
402142-05123 SCREW, LOWERSCREW, LOWER
-
509169-06033 WASHERWASHER
-
653111-27C22-YJ4 FENDER, FRONT (BLUE FOR N9J)FENDER, FRONT (BLUE FOR N9J)
-
653111-27C22-YR1 FENDER, FRONT (YELLOW FOR YR1)FENDER, FRONT (YELLOW FOR YR1)
-
709116-06170 BOLTBOLT
-
809169-06073 WASHERWASHER
