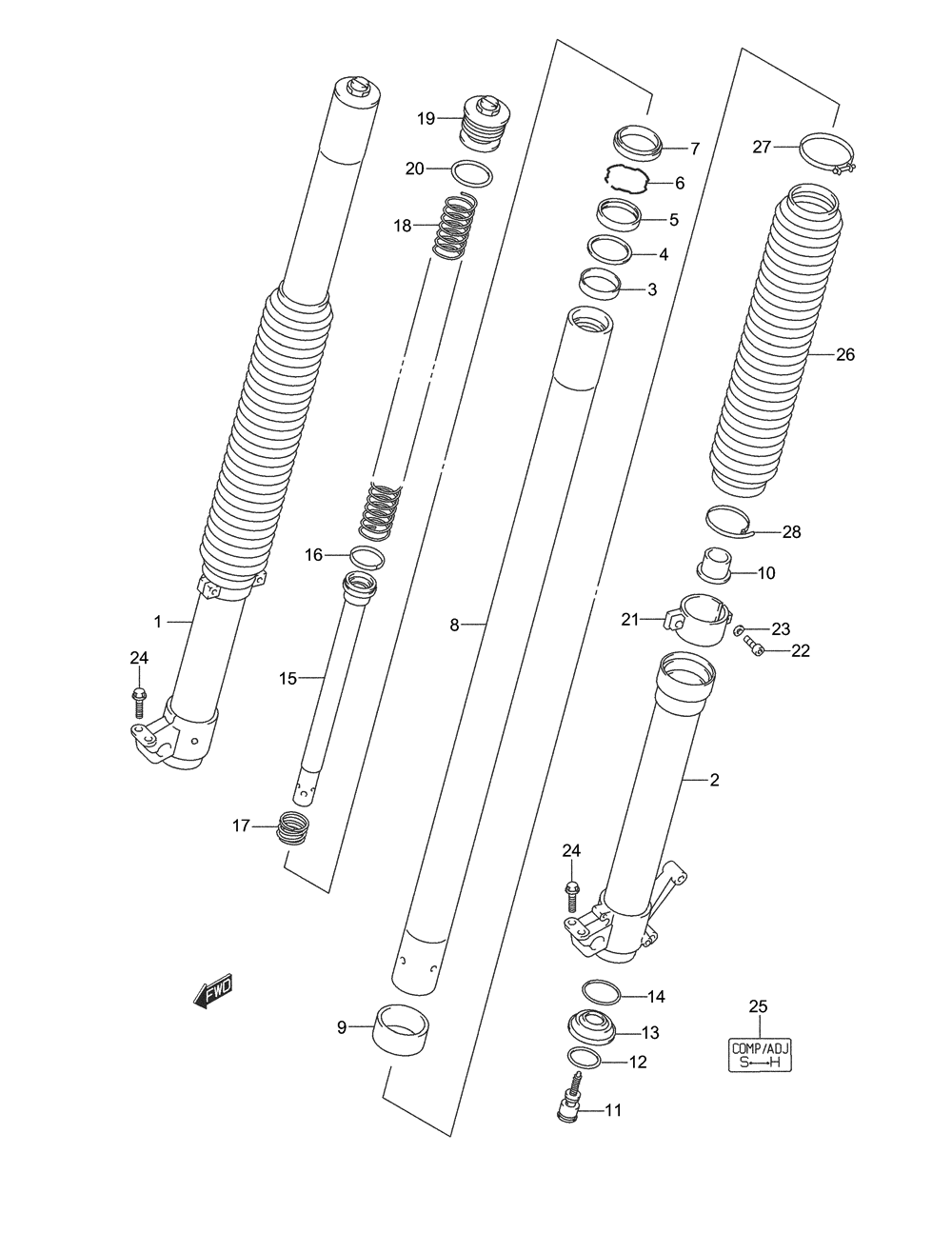

SUSPENSION - FRONT FORK для Suzuki DR-Z400SK1 - 2001 года выпуска
-
№АртикулНазвание
-
-51103-29F30 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
-51104-29F20 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
151130-29F20 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
251140-29F20 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
351167-36E40 BUSH, GUIDEBUSH, GUIDE
-
451158-36E00 SPACER, SEALSPACER, SEAL
-
551153-36E00 SEAL, OILSEAL, OIL
-
651156-36E00 RING, STOPPERRING, STOPPER
-
751173-36E00 SEAL, DUSTSEAL, DUST
-
851110-29F20 TUBE, INNERTUBE, INNER
-
951121-36E40 BUSH, SLIDEBUSH, SLIDE
-
1051195-29F20 PIECE, OIL LOCKPIECE, OIL LOCK
-
1151170-29F20 BOLT, CENTERBOLT, CENTER
-
1251183-29F20 PACKINGPACKING
-
1351205-29F20 PLATE, ENDPLATE, END
-
1451117-27C40 O RINGO RING
-
1551190-29F20 CYLINDERCYLINDER
-
1651196-29F20 RING, PISTONRING, PISTON
-
1751177-29F20 SPRING, REBOUNDSPRING, REBOUND
-
1851171-29F20 SPRING, FRONTSPRING, FRONT
-
1951351-29F20 BOLT, FORKBOLT, FORK
-
2051117-36E00 O RINGO RING
-
2151203-29F00 HOLDER, BOOTHOLDER, BOOT
-
2207130-05207 BOLTBOLT
-
2309160-05044 WASHERWASHER
-
2451321-27C40 BOLTBOLT
-
2551149-29E40 LABELLABEL
-
2651571-29F00-019 BOOT (BLACK)BOOT (BLACK)
-
2751575-29F00 BAND, BOOT UPPERBAND, BOOT UPPER
-
2851576-29F00 BAND, BOOT LOWERBAND, BOOT LOWER
