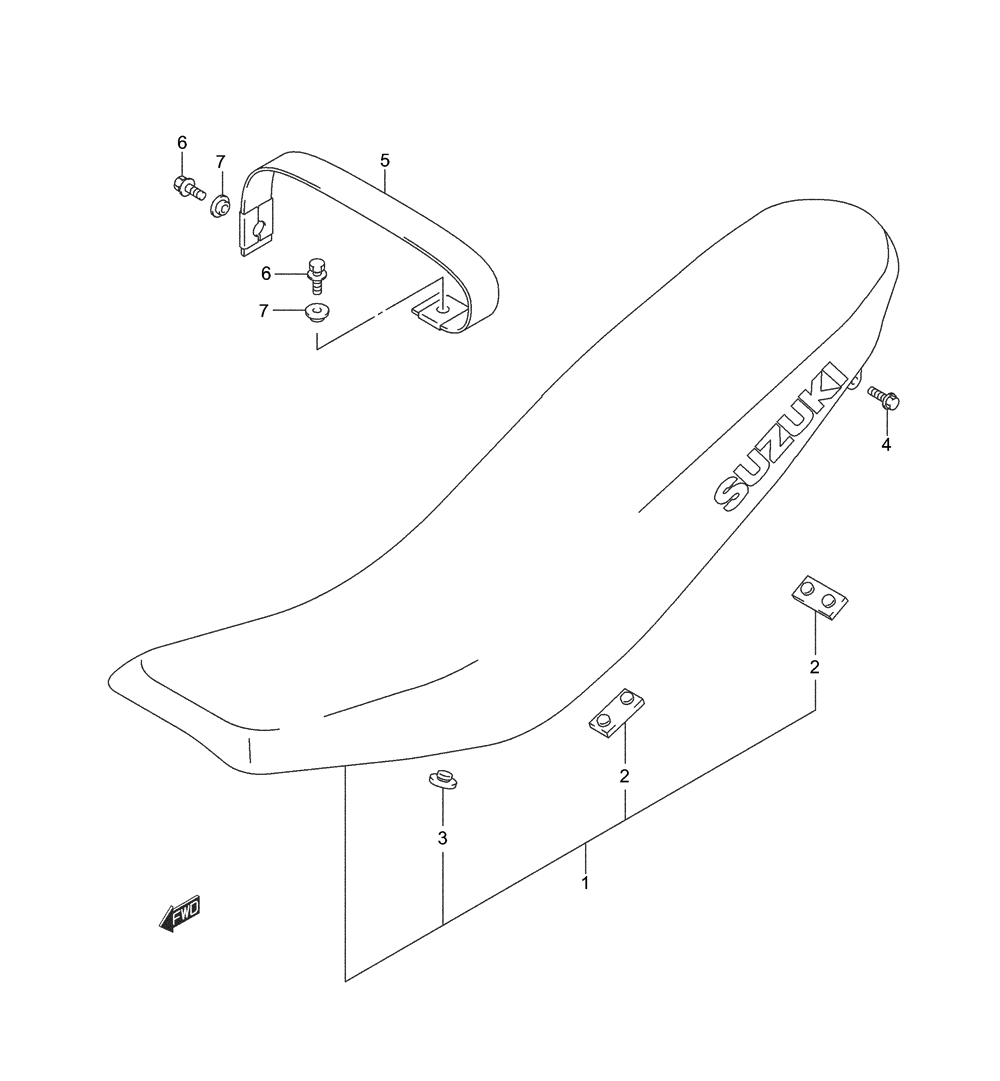

SEAT для Suzuki DR-Z400SK1 - 2001 года выпуска
-
№АртикулНазвание
-
145100-29F20-DY1 SEAT ASSYSEAT ASSY
-
245149-12C00 CUSHION (40X20X6) (FRONT/REAR)CUSHION (40X20X6) (FRONT/REAR)
-
245149-31300 CUSHION (40X20X15) (CENTER)CUSHION (40X20X15) (CENTER)
-
309321-10022 CUSHIONCUSHION
-
401550-06203 BOLT (6X20)BOLT (6X20)
-
545180-29F00-6BY BAND ASSY, SEATBAND ASSY, SEAT
-
609116-06150 BOLT, SEAT BANDBOLT, SEAT BAND
-
709169-06063 WASHER, SEAT BANDWASHER, SEAT BAND
