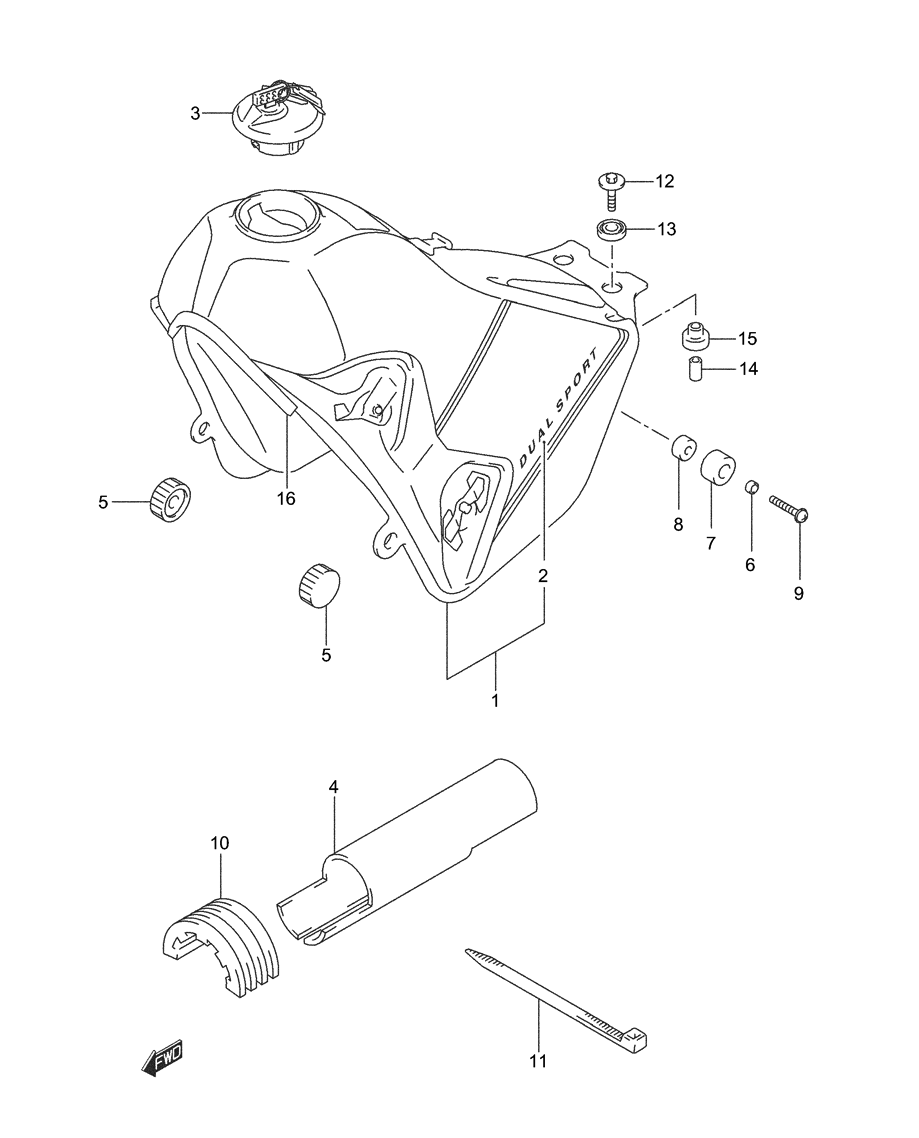

FUEL TANK для Suzuki DR-Z400SK1 - 2001 года выпуска
-
№АртикулНазвание
-
144100-29F10-YR1 TANK ASSY, FUEL (YELLOW, YR1) (EXCEPT CALIF)TANK ASSY, FUEL (YELLOW, YR1) (EXCEPT CALIF)
-
144100-29F10-YC2 TANK ASSY, FUEL (BLUE, YC2) (EXCEPT CALIF)TANK ASSY, FUEL (BLUE, YC2) (EXCEPT CALIF)
-
144100-29F40-YR1 TANK ASSY, FUEL (YELLOW, YR1) (CALIF ONLY)TANK ASSY, FUEL (YELLOW, YR1) (CALIF ONLY)
-
144100-29F40-YC2 TANK ASSY, FUEL (BLUE, YC2) (CALIF ONLY)TANK ASSY, FUEL (BLUE, YC2) (CALIF ONLY)
-
268110-29F10-ER4 TAPE SET (FOR YR1)TAPE SET (FOR YR1)
-
268110-29F10-FR1 TAPE SET (FOR YC2)TAPE SET (FOR YC2)
-
344200-29820 CAP SET, FUEL TANK (EXCEPT CALIF)CAP SET, FUEL TANK (EXCEPT CALIF)
-
344200-05820 CAP SET, FUEL TANK (CALIF ONLY)CAP SET, FUEL TANK (CALIF ONLY)
-
444194-29F00 SHIELD, FUEL TANKSHIELD, FUEL TANK
-
509329-10016 CUSHION, FRONTCUSHION, FRONT
-
609180-06215 SPACER, CUSHION LOWERSPACER, CUSHION LOWER
-
745149-14D00 CUSHION, SIDECUSHION, SIDE
-
809180-06306 SPACER, CUSHION UPPERSPACER, CUSHION UPPER
-
902112-16303 SCREWSCREW
-
1044541-29F00 CUSHION, UPPERCUSHION, UPPER
-
1109407-30402 CLAMPCLAMP
-
1209116-06172 BOLT, REARBOLT, REAR
-
1309320-14022 CUSHION, UPPERCUSHION, UPPER
-
1409180-06271 SPACERSPACER
-
1509320-10020 CUSHION, LOWERCUSHION, LOWER
-
1668241-04X50-00B MOLDING, FRONTMOLDING, FRONT
