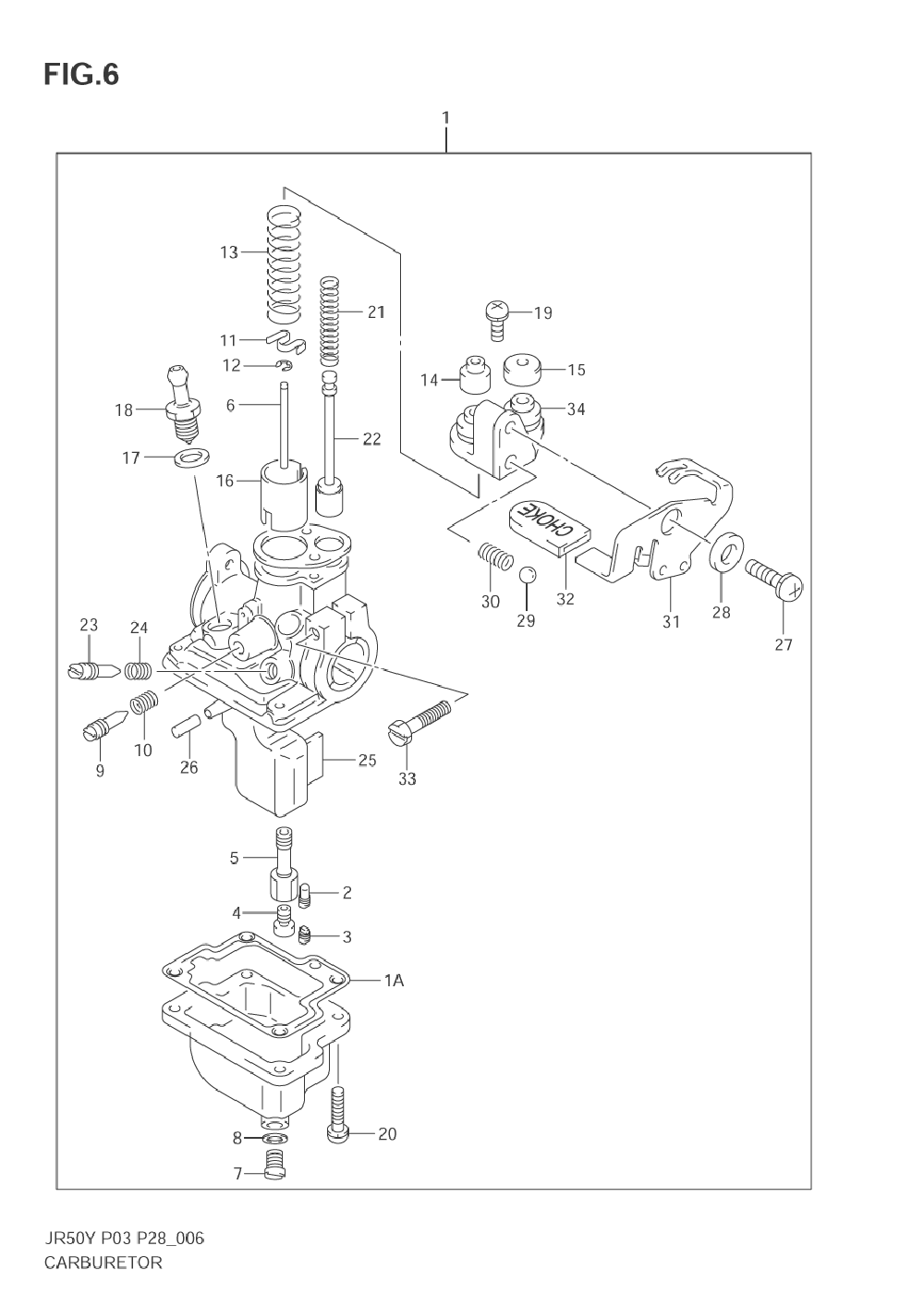

CARBURETOR для Suzuki JR50K3 - 2003 года выпуска
-
№АртикулНазвание
-
113200-04450 CARBURETOR ASSYCARBURETOR ASSY
-
1A13251-04110 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
209492-15015 ...JET, PILOT NO.1 (15)...JET, PILOT NO.1 (15)
-
309492-15009 ...JET, PILOT NO.2...JET, PILOT NO.2
-
409491-56002 ...JET, MAIN (56.3)...JET, MAIN (56.3)
-
509494-00933 ...JET, NEEDLE (E-6)...JET, NEEDLE (E-6)
-
613383-13670 ...NEEDLE, JET (3D23-3)...NEEDLE, JET (3D23-3)
-
713247-05010 ...PLUG, DRAIN...PLUG, DRAIN
-
813249-05010 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
913267-01010 ...SCREW, THROTTLE STOP...SCREW, THROTTLE STOP
-
1013268-01010 ...SPRING, STOP SCREW...SPRING, STOP SCREW
-
1113581-04010 ...SEAT, THROTTLE VALVE SPRING...SEAT, THROTTLE VALVE SPRING
-
1213394-40D00 ...CLIP, NEEDLE...CLIP, NEEDLE
-
1313573-01010 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
1413681-04010 ...CAP...CAP
-
1513682-98010 ...CAP, STARTER...CAP, STARTER
-
1613551-04110 ...VALVE, THROTTLE (CA:3.0)...VALVE, THROTTLE (CA:3.0)
-
1713663-31010 ...GASKET, VALVE SEAT...GASKET, VALVE SEAT
-
1813370-04450 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
1902112-34103 ...SCREW...SCREW
-
2002112-34123 ...SCREW...SCREW
-
2113417-43010 ...SPRING, STARTER VALVE...SPRING, STARTER VALVE
-
2213411-04410 ...VALVE, STARTER...VALVE, STARTER
-
2313269-04010 ...SCREW, PILOT AIR...SCREW, PILOT AIR
-
2413268-01010 ...SPRING...SPRING
-
2513252-04011 ...FLOAT...FLOAT
-
2613254-04010 ...PIN, FLOAT...PIN, FLOAT
-
2713601-06128 ...SCREW...SCREW
-
2813424-30650 ...RING...RING
-
2913435-33110 ...BALL...BALL
-
3013434-30650 ...SPRING...SPRING
-
3113413-04450 ...LEVER, STARTER...LEVER, STARTER
-
3213416-28700 ...CAP, LEVER...CAP, LEVER
-
3313323-04010 ...BOLT...BOLT
-
3413261-04410 ...TOP ASSY...TOP ASSY
