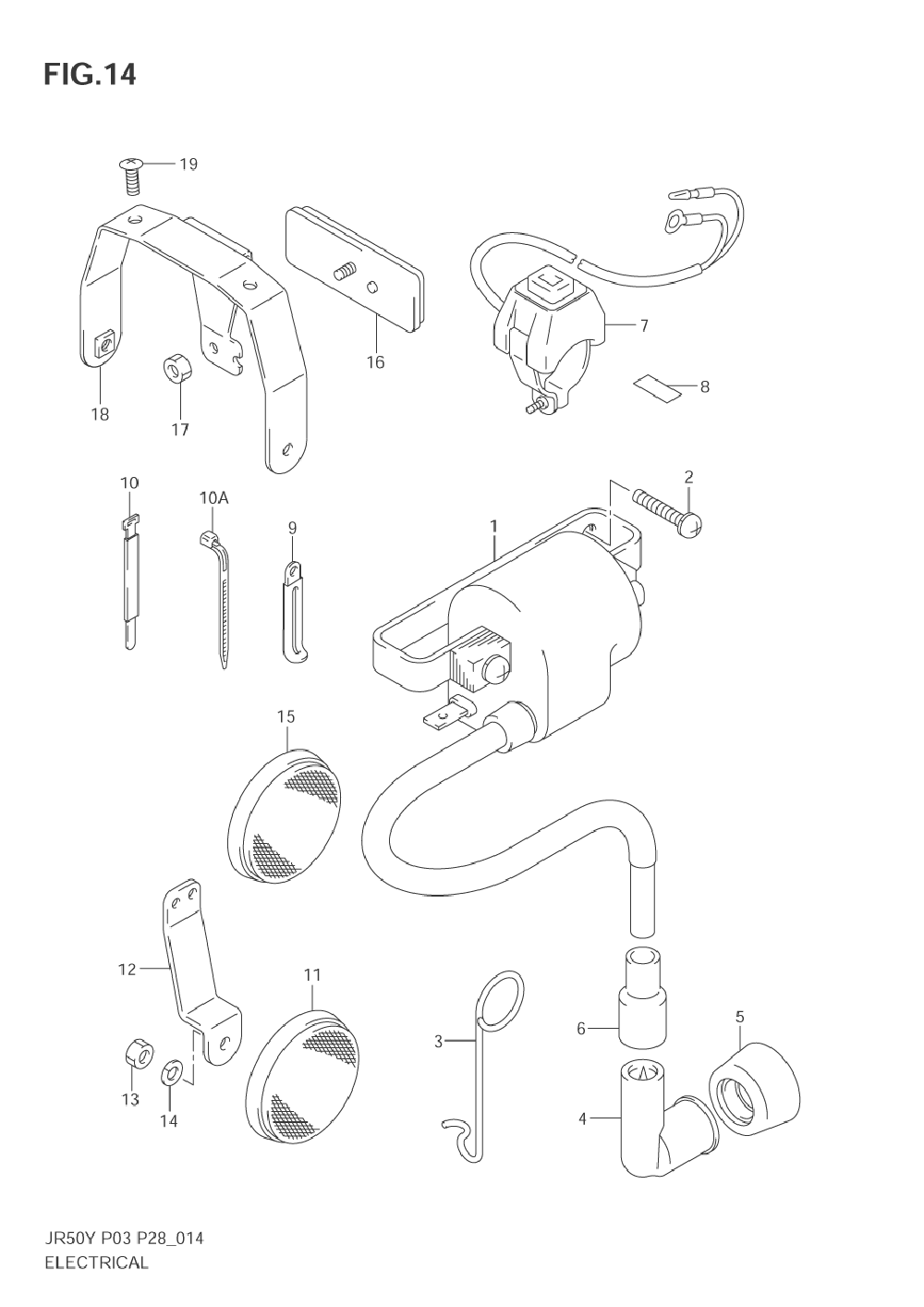

ELECTRICAL для Suzuki JR50K3 - 2003 года выпуска
-
№АртикулНазвание
-
133410-35340 UNIT & COIL ASSY, IGNITIONUNIT & COIL ASSY, IGNITION
-
202112-06207 SCREWSCREW
-
358626-04410 GUIDE, HIGH TENSION CORDGUIDE, HIGH TENSION CORD
-
433510-35411 CAP, SPARK PLUGCAP, SPARK PLUG
-
533541-69010 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
633542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
737820-14X50 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
8-137238-46401 LABELLABEL
-
8-237238-46411 LABEL (CANADA)LABEL (CANADA)
-
909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1009407-18301 CLAMP (L:180)CLAMP (L:180)
-
10A09407-18402 CLAMP (L:165)CLAMP (L:165)
-
11-135950-45010 REFLEX REFLECTOR ASSY (FRONT) (CANADA)REFLEX REFLECTOR ASSY (FRONT) (CANADA)
-
1235975-09AA0 BRACKET (FRONT/REAR) (CANADA)BRACKET (FRONT/REAR) (CANADA)
-
1308310-00053 NUT (FRONT/REAR) (CANADA)NUT (FRONT/REAR) (CANADA)
-
1408321-01053 LOCK WASHER (CANADA)LOCK WASHER (CANADA)
-
15-135970-30910 REFLEX REFLECTOR ASSY (REAR) (CANADA)REFLEX REFLECTOR ASSY (REAR) (CANADA)
-
1635970-07F00 REFLEX REFLECTOR ASSY (REAR) (CANADA)REFLEX REFLECTOR ASSY (REAR) (CANADA)
-
1708310-00053 NUT (REAR) (CANADA)NUT (REAR) (CANADA)
-
1835976-04450 BRACKET, SIDE AND REAR (CANADA)BRACKET, SIDE AND REAR (CANADA)
-
1902142-06127 SCREW, BRACKET (REAR) (CANADA)SCREW, BRACKET (REAR) (CANADA)
