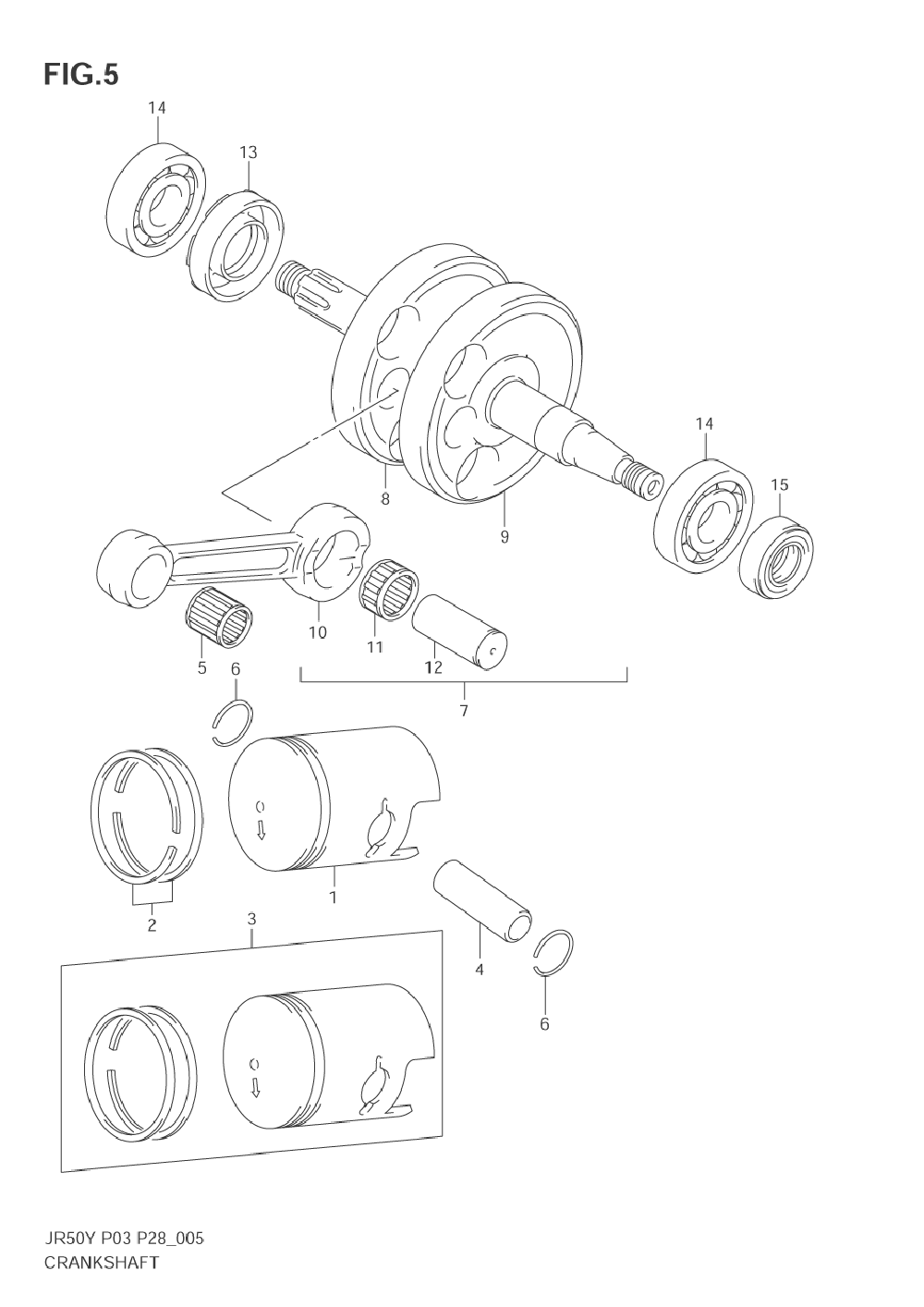

CRANKSHAFT W/ PISTONS для Suzuki JR50K3 - 2003 года выпуска

№

Артикул

Название
1-2

12110-35614-0F0 PISTON (STD)

PISTON (STD)

308 100 ₽
2-1

12140-16B10 RING SET, PISTON (STD)

RING SET, PISTON (STD)

4 060 ₽
2-2

12140-46110-050 RING SET, PISTON (OS:0.5) (OPT)

RING SET, PISTON (OS:0.5) (OPT)

195 000 ₽
2-3

12140-46110-100 RING SET, PISTON (OS:1.0) (OPT)

RING SET, PISTON (OS:1.0) (OPT)

195 000 ₽
3-2

12100-35611-050 PISTON SET (OS:0.5) (OPT)

PISTON SET (OS:0.5) (OPT)

501 800 ₽
3-4

12100-35611-100 PISTON SET (OS:1.0) (OPT)

PISTON SET (OS:1.0) (OPT)

501 800 ₽
4

12151-04700 PIN, PISTON

PIN, PISTON

1 310 ₽
5

09263-12023 BEARING, PISTON PIN

BEARING, PISTON PIN

1 780 ₽
6

09381-12001 CIRCLIP

CIRCLIP

250 ₽
7

12200-04401 CRANKSHAFT ASSY

CRANKSHAFT ASSY

60 200 ₽
8

12221-04400 ...CRANKSHAFT (RIGHT)

...CRANKSHAFT (RIGHT)

0 ₽
9

12261-04000 ...CRANKSHAFT (LEFT)

...CRANKSHAFT (LEFT)

19 590 ₽
10

12161-04001 ...ROD, CONNECTING

...ROD, CONNECTING

11 390 ₽
11

09263-15014 ...BEARING

...BEARING

2 080 ₽
12

12211-04000 ...PIN, CRANK

...PIN, CRANK

2 580 ₽
13

09283-22001 OIL SEAL (RIGHT) (22X40X8)

OIL SEAL (RIGHT) (22X40X8)

910 ₽
14

09262-17023 BEARING (17X40X12)

BEARING (17X40X12)

2 930 ₽
15

09283-17010 OIL SEAL (LEFT) (17X29X7)

OIL SEAL (LEFT) (17X29X7)

1 270 ₽
