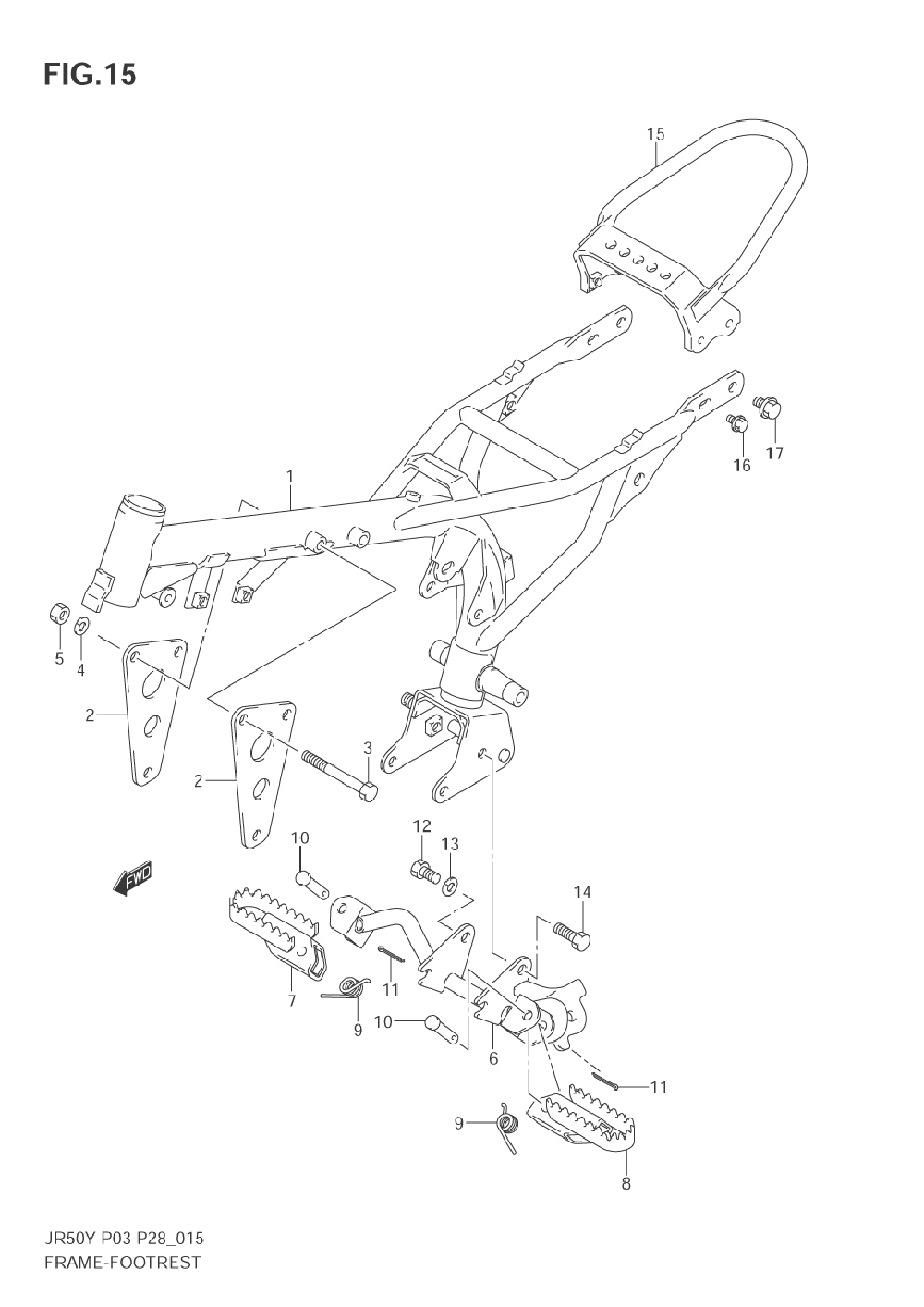

FRAME W/ FOOTREST для Suzuki JR50K3 - 2003 года выпуска
-
№АртикулНазвание
-
141100-09AA0-019 FRAME (BLACK)FRAME (BLACK)
-
241991-04410 PLATE, MOUNTINGPLATE, MOUNTING
-
301500-08703 BOLTBOLT
-
408321-01083 LOCK WASHERLOCK WASHER
-
508310-00083 NUTNUT
-
643510-04411 BAR, FOOTREST (FRONT)BAR, FOOTREST (FRONT)
-
743550-46000-019 FOOTREST (RIGHT/BLACK)FOOTREST (RIGHT/BLACK)
-
843560-46000-019 FOOTREST (LEFT/BLACK)FOOTREST (LEFT/BLACK)
-
909448-14012 SPRINGSPRING
-
1009200-08002 PINPIN
-
1104111-20158 COTTER PINCOTTER PIN
-
1201500-08163 BOLTBOLT
-
1308321-01083 LOCK WASHERLOCK WASHER
-
1409100-08143 BOLT (LEFT)BOLT (LEFT)
-
1543980-09AA0 GRIP (REAR)GRIP (REAR)
-
1601550-06103 BOLT (FRONT)BOLT (FRONT)
-
1701550-08123 BOLT (REAR)BOLT (REAR)
