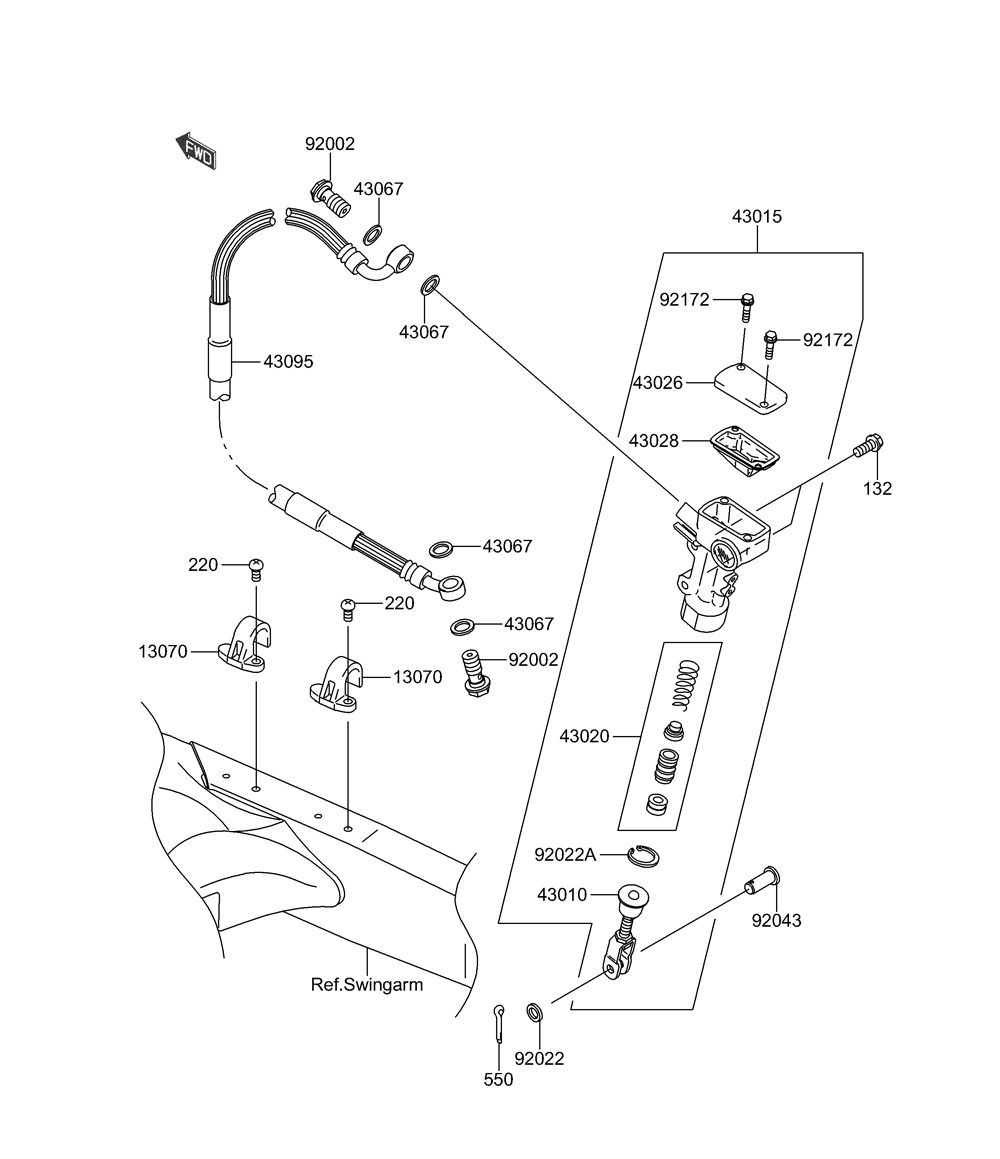

BRAKE - REAR MASTER CYLINDER для Suzuki RM-Z250K4 - 2004 года выпуска
-
№АртикулНазвание
-
13070K1307-01388 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
43010K4301-01087 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
43015K4301-50004 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
43020K4302-01094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
43026K4302-61086 CAP-BRAKECAP-BRAKE
-
43028K4302-81092 DIAPHRAGMDIAPHRAGM
-
43067KK430-67001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
43095K4309-50024 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
92002K9200-21888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92022K9202-21028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022AK9202-21601 WASHER, CIRCRIPWASHER, CIRCRIP
-
92043K9204-30004 PINPIN
-
92172K9217-21064 SCREWSCREW
-
132KK132-G0614 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220KK220-B0510 SCREW-PAN-CROSSCREW-PAN-CROS
-
550KK550-D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
