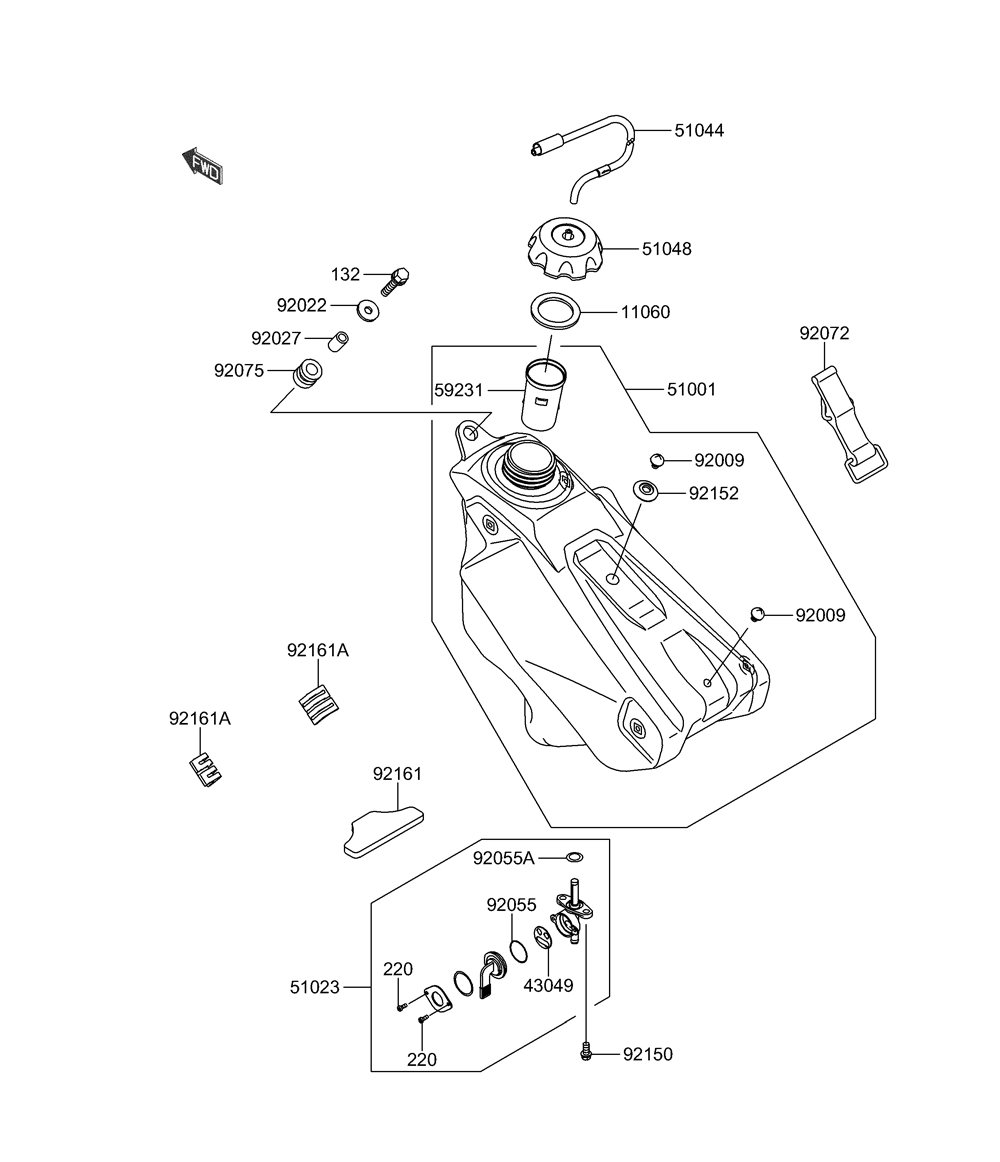

FUEL TANK для Suzuki RM-Z250K4 - 2004 года выпуска
-
№АртикулНазвание
-
11060K1106-01340 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
43049K4304-91091 PACKING, TAP VALVEPACKING, TAP VALVE
-
51001KK510-01002-06Z TANK-COMP-FUEL (F.BLACK)TANK-COMP-FUEL (F.BLACK)
-
51023K5102-31395 TAP-ASSY, FUELTAP-ASSY, FUEL
-
51044K5104-40005 TUBE-ASSYTUBE-ASSY
-
51048K5104-81124 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
59231K5923-11096 FILLERFILLER
-
92009K9200-91971 SCREW, 6MMSCREW, 6MM
-
92022K9202-21690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
92027K9202-71966 COLLAR, 6.8X10X14COLLAR, 6.8X10X14
-
92055K9205-51419 RING-O, TAP LEVERRING-O, TAP LEVER
-
92055AK9205-51700 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92072K9207-21229 BAND, FUEL TANKBAND, FUEL TANK
-
92075K9207-51787 DAMPERDAMPER
-
92150K9215-01599 BOLT, 6X12BOLT, 6X12
-
92152K9215-21346 COLLARCOLLAR
-
92161K9216-10107 DAMPERDAMPER
-
92161AK9216-11291 DAMPER, FUEL TANK, SIDEDAMPER, FUEL TANK, SIDE
-
132KK132-G0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220KK220-B0308 SCREW-PAN-CROSSCREW-PAN-CROS
Все узлы модели:
- ACCESSORY
- AIR CLEANER
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR HUB
- BRAKE - REAR MASTER CYLINDER
- BRAKE PEDAL
- BRAKE PEDAL W/ STAND
- CABLE
- CAMSHAFT/TENSIONER
- CARBURETOR ASSY.
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON
- DECAL
- ENGINE COVER
- FENDER
- FOOTREST
- FRAME
- FRAME FITTING
- FRONT HUB
- • FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABEL
- MUFFLER
- OIL PUMP
- OWNER'S TOOL
- RADIATOR
- SEAT
- SHOCK ABSORBER
- SIDE COVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- SUSPENSION - REAR SWING ARM
- TRANSMISSION
- VALVE
- WATER PUMP
- WHEEL/TIRE
