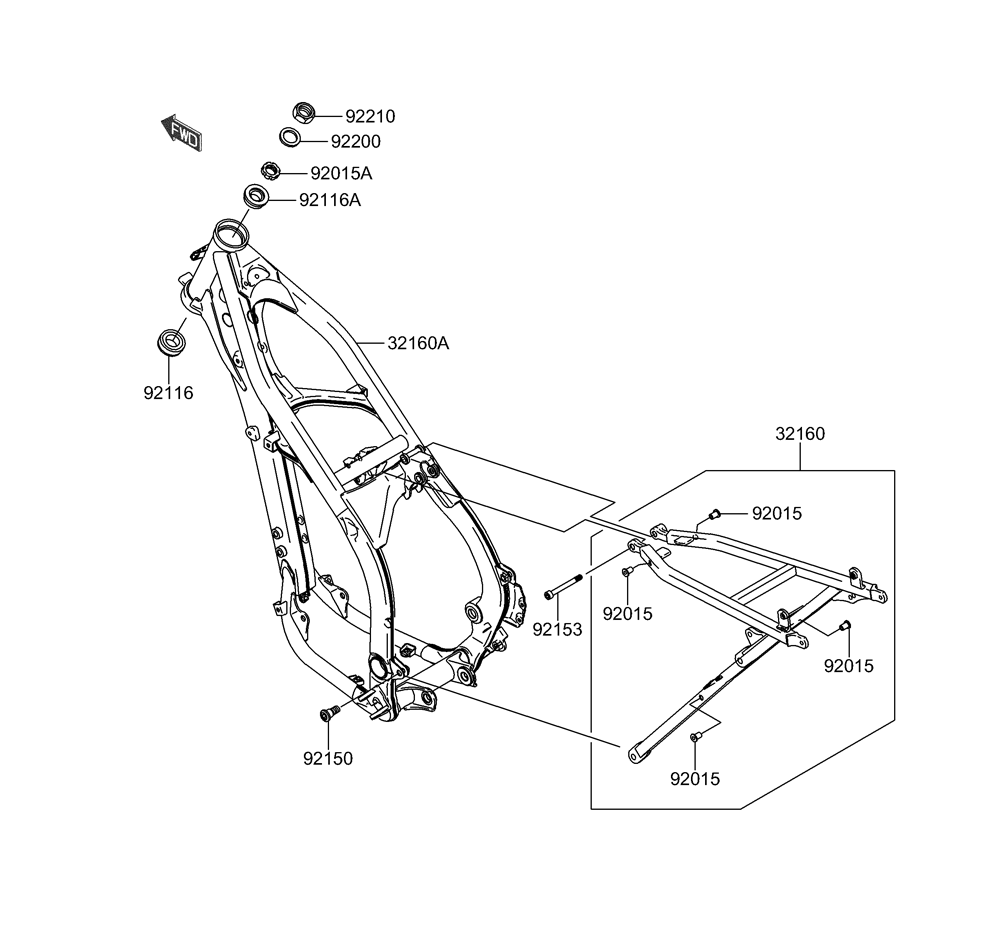

FRAME для Suzuki RM-Z250K4 - 2004 года выпуска
-
№АртикулНазвание
-
32160K3216-00052 FRAME-COMP, REARFRAME-COMP, REAR
-
32160AK3216-00053-466 FRAME-COMP, FRONT (M.F.GLAY)FRAME-COMP, FRONT (M.F.GLAY)
-
92015K9201-51791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015AK9201-51861 NUT, STEERING STEM, 28MMNUT, STEERING STEM, 28MM
-
92116K9211-61069 BEARING-ROLLER, HI-CAP32006JRRSBEARING-ROLLER, HI-CAP32006JRRS
-
92116AK9211-61076 BEARING-ROLLER, HI-CAP320/28JRRBEARING-ROLLER, HI-CAP320/28JRR
-
92150K9215-01839 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92153K9215-31124 BOLT, SOCKET, 8X74BOLT, SOCKET, 8X74
-
92200K9220-00023 WASHER, 25X36X1WASHER, 25X36X1
-
92210K9221-00066 NUT, 24MMNUT, 24MM
