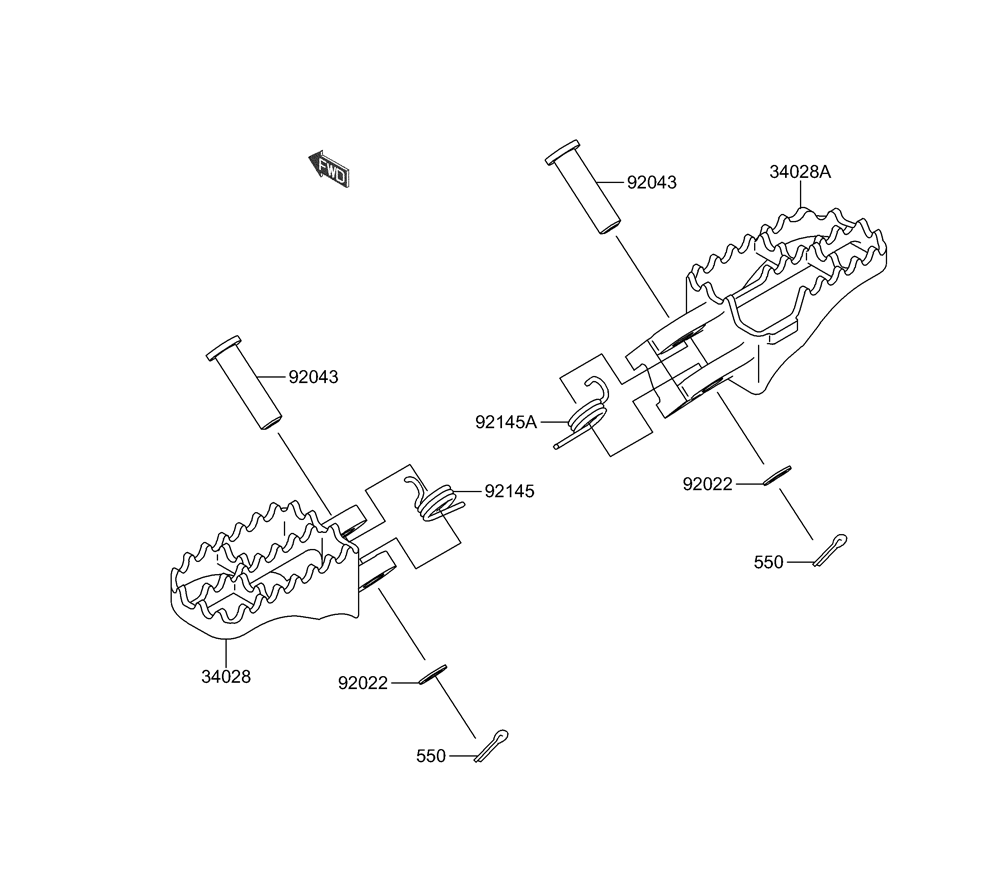

FOOTREST для Suzuki RM-Z250K4 - 2004 года выпуска
-
№АртикулНазвание
-
34028K3402-81533 STEP, LEFT HANDSTEP, LEFT HAND
-
34028AK3402-81534 STEP, RIGHT HANDSTEP, RIGHT HAND
-
92022K9202-21829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
92043K9204-30041 PIN, 10X49.5PIN, 10X49.5
-
92145K9214-51466 SPRING, STEP, LEFT HANDSPRING, STEP, LEFT HAND
-
92145AK9214-51467 SPRING, STEP, RIGHT HANDSPRING, STEP, RIGHT HAND
-
550KK550-S3020 PIN-COTTER, 3.0X20PIN-COTTER, 3.0X20
