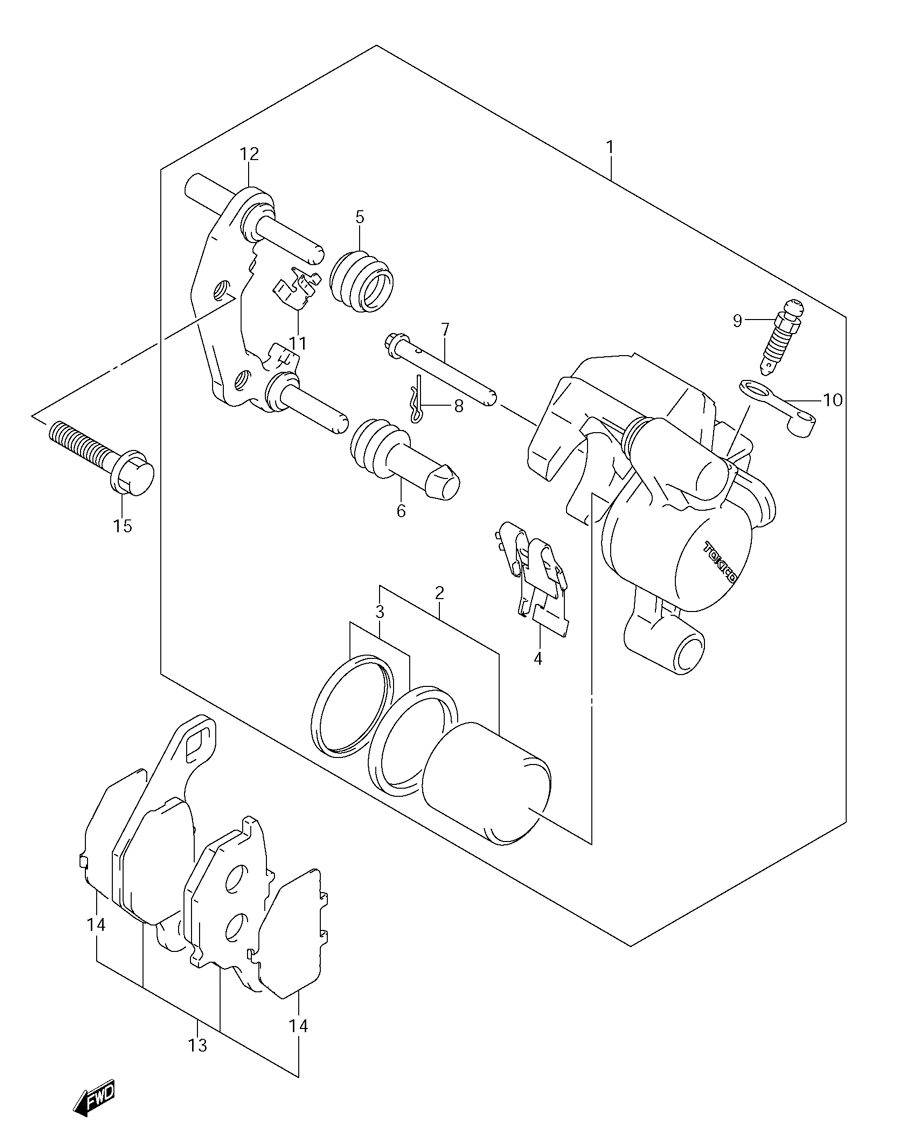

BRAKE - FRONT CALIPER для Suzuki DR-Z125LK8 - 2008 года выпуска
-
№АртикулНазвание
-
159300-03B10-999 CALIPER ASSEMBLY, FRONT LEFT HANDCALIPER ASSEMBLY, FRONT LEFT HAND
-
259301-20830 ...PISTON SET...PISTON SET
-
359300-35830 ......SEAL SET......SEAL SET
-
459315-20E00 ...SPRING...SPRING
-
559312-36500 ...BOOT...BOOT
-
659313-36500 ...INSULATOR...INSULATOR
-
769141-44B02 ...PIN...PIN
-
869142-45000 ...CLIP...CLIP
-
959121-18410 ...BLEEDER...BLEEDER
-
1059122-02B40 ...CAP...CAP
-
1159116-20E00 ...GUIDE...GUIDE
-
1259350-20E00 ...CARRIER, LEFT HAND...CARRIER, LEFT HAND
-
1359301-20870 PAD & SHIM SETPAD & SHIM SET
-
1459371-20E00 ...SHIM...SHIM
-
1501550-0835A BOLTBOLT
