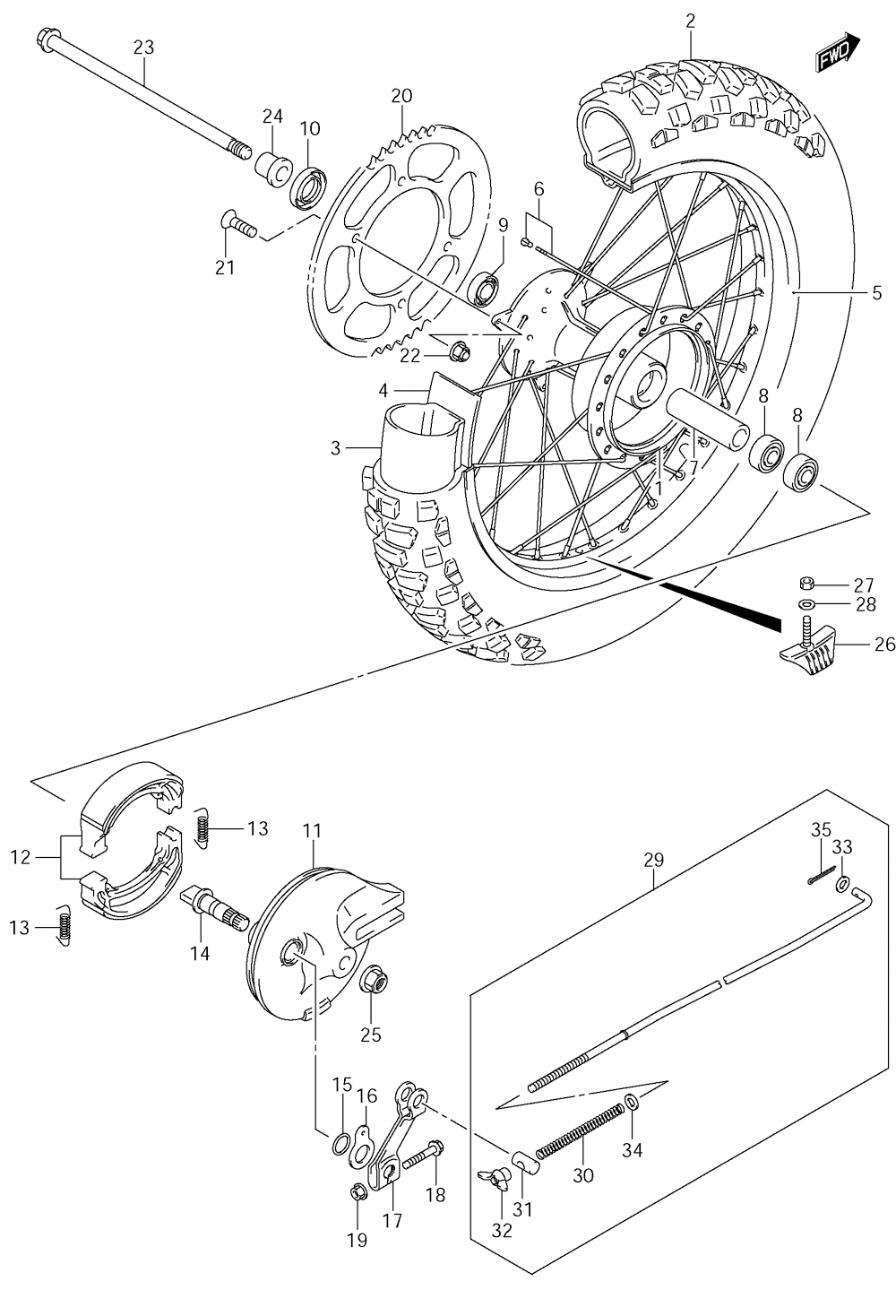

WHEEL - REAR для Suzuki DR-Z125LK8 - 2008 года выпуска
-
№АртикулНазвание
-
164110-08G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265110-08G10 TIRE, REAR, 90/100-16 IRCTIRE, REAR, 90/100-16 IRC
-
365200-08G10 TUBE ASSEMBLY, WHEEL INNERTUBE ASSEMBLY, WHEEL INNER
-
465261-08G10 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
565311-08G30 RIM, REAR WHEEL (16X1.60)RIM, REAR WHEEL (16X1.60)
-
665320-08G30 SPOKE ASSEMBLY, REAR WHEELSPOKE ASSEMBLY, REAR WHEEL
-
709180-12151 SPACER (12.5X19X95.5)SPACER (12.5X19X95.5)
-
808143-62017 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
908123-63010 BEARING, LEFT HANDBEARING, LEFT HAND
-
1009283-20025 SEAL, REAR HUB BEARINGSEAL, REAR HUB BEARING
-
1164210-08G00 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1254401-43840 SHOE SET, BRAKESHOE SET, BRAKE
-
1309443-07044 SPRINGSPRING
-
1464441-13G00 CAM, BRAKECAM, BRAKE
-
1509280-14011 O RING (DIAMETER: 2.5,INSIDE DIAMETER: 13.8)O RING (DIAMETER: 2.5,INSIDE DIAMETER: 13.8)
-
1654492-13G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1764451-08G00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1801550-0635A BOLTBOLT
-
1908316-1006A NUTNUT
-
2064511-08G10 SPROCKET, REAR (NO. OF TEETH: 57)SPROCKET, REAR (NO. OF TEETH: 57)
-
2109120-08010 SCREWSCREW
-
2208319-3108A NUTNUT
-
2364711-08G00 AXLE, REARAXLE, REAR
-
2464751-08G00 SPACER, AXLESPACER, AXLE
-
2508319-3112A NUTNUT
-
2665270-08G00 STOPPER, BEADSTOPPER, BEAD
-
2708310-0008A NUT, BEAD STOPPERNUT, BEAD STOPPER
-
2808322-0108A WASHERWASHER
-
2943300-08G10 ROD ASSEMBLY, REAR BRAKEROD ASSEMBLY, REAR BRAKE
-
3009440-09004 ...SPRING...SPRING
-
3109209-11002 ...PIN...PIN
-
3209144-06005 ...NUT...NUT
-
3308322-0105A ...WASHER, FRONT...WASHER, FRONT
-
3408322-0106A ...WASHER, REAR...WASHER, REAR
-
3504111-2020A ...COTTER PIN...COTTER PIN
