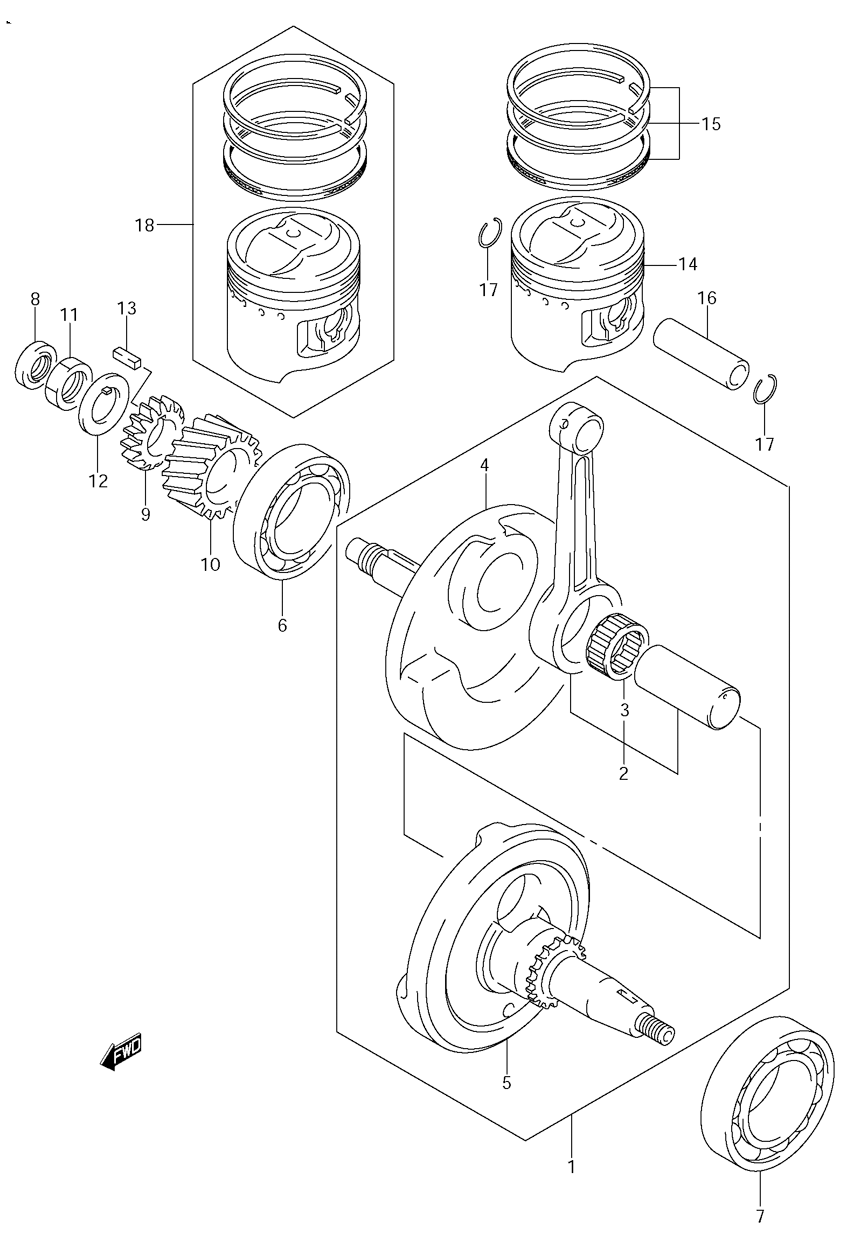

CRANKSHAFT W/ PISTON для Suzuki DR-Z125LK8 - 2008 года выпуска
-
№АртикулНазвание
-
112200-05240 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
212105-05821 ...ROD SET, CONNECTING...ROD SET, CONNECTING
-
309263-28027-0B0 ......BEARING (28X36X15.8)......BEARING (28X36X15.8)
-
412221-05210 ...CRANKSHAFT, RIGHT HAND...CRANKSHAFT, RIGHT HAND
-
512261-05210 ...CRANKSHAFT, LEFT HAND...CRANKSHAFT, LEFT HAND
-
609262-28014 BEARING, RIGHT HAND (28X68X18)BEARING, RIGHT HAND (28X68X18)
-
709262-35038 BEARING, LEFT HAND (35X72X17)BEARING, LEFT HAND (35X72X17)
-
809282-12009 OIL SEAL (12X21X7)OIL SEAL (12X21X7)
-
916321-05201 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1021111-05200-0C0 GEAR, PRIMARY DRIVE (NO. OF TEETH: 17)GEAR, PRIMARY DRIVE (NO. OF TEETH: 17)
-
1109140-16019 NUTNUT
-
1209166-16012 WASHERWASHER
-
1309421-04004 KEYKEY
-
1412111-05202-0F0 PISTONPISTON
-
1512140-01410 RING SET, PISTONRING SET, PISTON
-
1612151-05220 PIN, PISTONPIN, PISTON
-
1709381-14001 SNAP RINGSNAP RING
-
1812100-05200-050 PISTON SET (OVER SIZE: 0.5) (OPTIONAL)PISTON SET (OVER SIZE: 0.5) (OPTIONAL)
