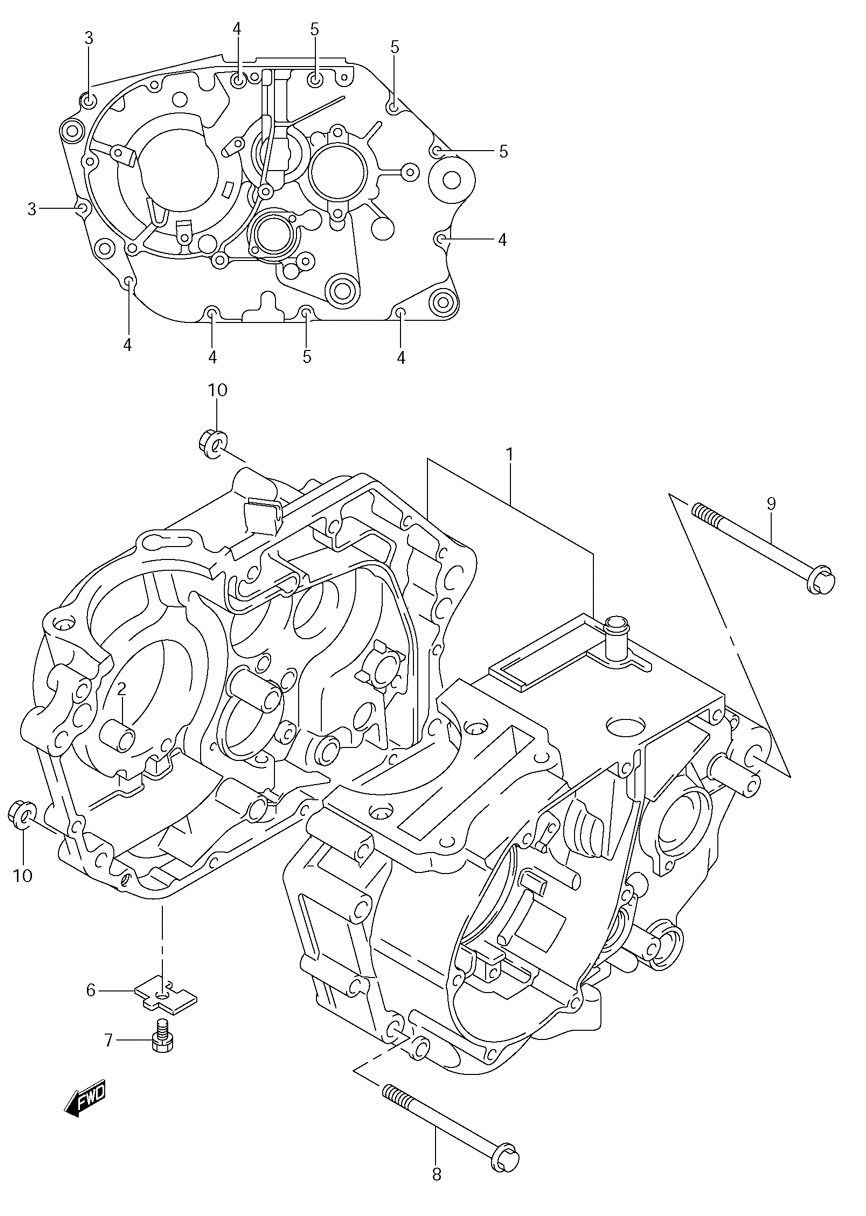

CRANKCASE для Suzuki DR-Z125LK8 - 2008 года выпуска
-
№АртикулНазвание
-
111300-08G20 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
204211-13189 ...KNOCK PIN...KNOCK PIN
-
301547-0645A ...BOLT...BOLT
-
401547-0660A ...BOLT...BOLT
-
501547-0675A ...BOLT...BOLT
-
611319-05200 ...PLATE, OIL GALLERY PLUG...PLATE, OIL GALLERY PLUG
-
701500-0610A ...BOLT...BOLT
-
809103-08016 BOLT (LENGTH: 80)BOLT (LENGTH: 80)
-
909103-08010 BOLT (LENGTH: 88)BOLT (LENGTH: 88)
-
1008319-3108A NUTNUT
