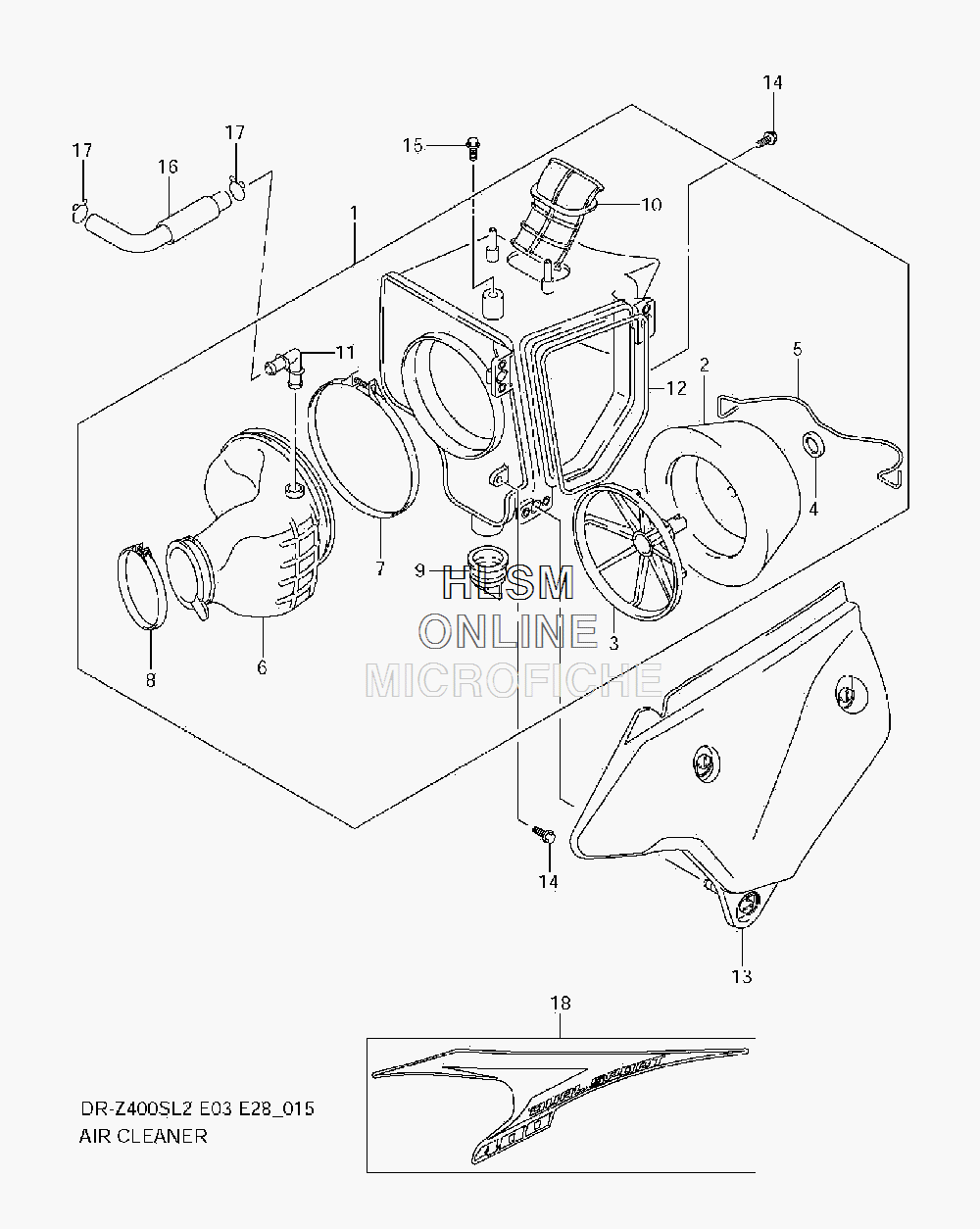

AIR CLEANER для Suzuki DR-Z400SL2 - 2012 года выпуска
-
№АртикулНазвание
-
113701-29FB1 CLEANER, AIR (INCL. 2-12)CLEANER, AIR (INCL. 2-12)
-
213780-44E00 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
313791-44E00 HOLDER, FILTERHOLDER, FILTER
-
413796-44E00 SPACERSPACER
-
513941-29F00 SPRINGSPRING
-
613881-29FB0 TUBE, OUTLETTUBE, OUTLET
-
713826-29F00 CLAMP, OUTLET TUBECLAMP, OUTLET TUBE
-
809402-64203 CLAMPCLAMP
-
913872-29F00 VALVEVALVE
-
1013891-29FA0 TUBE, INLETTUBE, INLET
-
1113858-14D20 JOINT, BREATHER HOSEJOINT, BREATHER HOSE
-
1213746-29F00 GASKET, AIR CLEANERGASKET, AIR CLEANER
-
1313740-29FB0-019 CAP, AIR CLEANER (019 - BLACK)CAP, AIR CLEANER (019 - BLACK)
-
1313740-29FB0-30H CAP, AIR CLEANER (30H - WHITE)CAP, AIR CLEANER (30H - WHITE)
-
1401547-0616B BOLTBOLT
-
1509111-06054 BOLT (6X14.6)BOLT (6X14.6)
-
1613850-29FA1 TUBE, BREATHERTUBE, BREATHER
-
1709401-14101 CLIPCLIP
-
1868145-29FD0-HMC TAPE, AIR CLEANER CAP (SILVER/BLACK FOR 019 )TAPE, AIR CLEANER CAP (SILVER/BLACK FOR 019 )
-
1868145-29FD0-HMD TAPE, AIR CLEANER CAP (BLUE/WHITE FOR 30H)TAPE, AIR CLEANER CAP (BLUE/WHITE FOR 30H)
