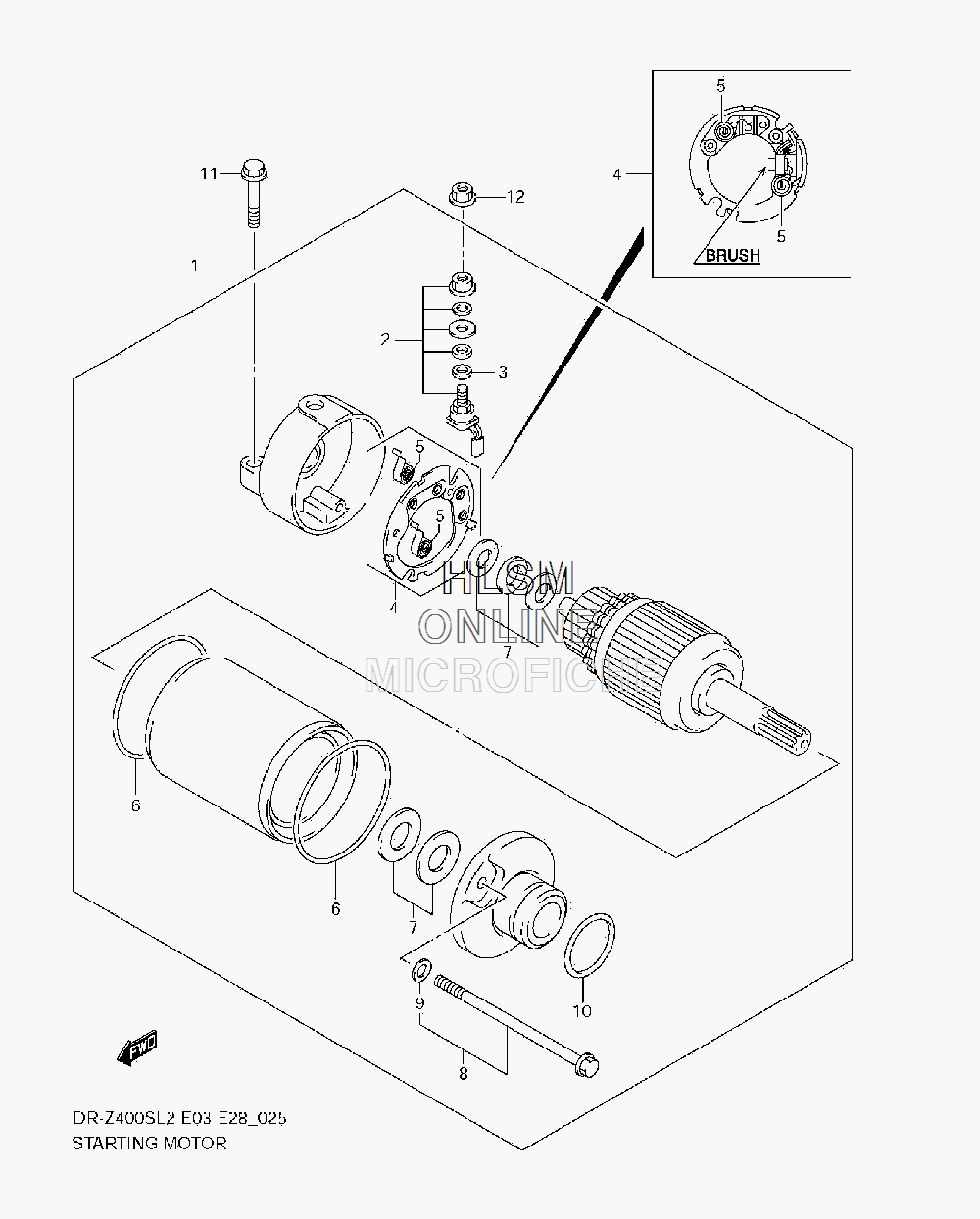

STARTING MOTOR для Suzuki DR-Z400SL2 - 2012 года выпуска
-
№АртикулНазвание
-
131100-29F00 MOTOR ASSY, STARTING (INCL. 2-10)MOTOR ASSY, STARTING (INCL. 2-10)
-
231130-13E00 BRUSH TERMINAL SETBRUSH TERMINAL SET
-
331143-49040 O RINGO RING
-
431132-13E00 BRUSH HOLDER SETBRUSH HOLDER SET
-
531135-31300 SPRING, BRUSHSPRING, BRUSH
-
631264-13E00 O RINGO RING
-
731170-19B10 WASHER SETWASHER SET
-
831280-19F00 BOLT SET (INCL. 9)BOLT SET (INCL. 9)
-
931156-13E00 O RINGO RING
-
1009280-24003 O RING (D:3.0,ID:24.5)O RING (D:3.0,ID:24.5)
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1208361-3506A NUTNUT
