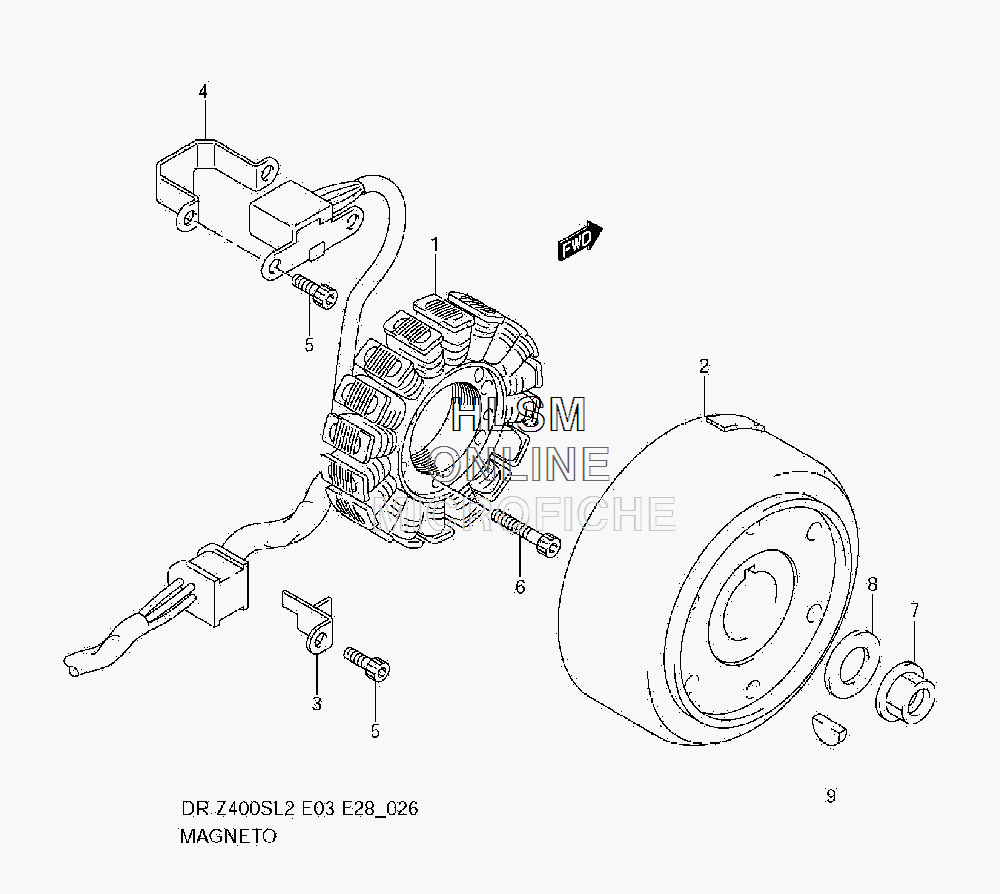

MAGNETO для Suzuki DR-Z400SL2 - 2012 года выпуска
-
№АртикулНазвание
-
132101-29F00 STATOR ASSY, MAGNETOSTATOR ASSY, MAGNETO
-
232102-29F00 ROTOR ASSY, MAGNETOROTOR ASSY, MAGNETO
-
332371-13E00 CLAMP, MAGNETO LEAD NO.1CLAMP, MAGNETO LEAD NO.1
-
432371-14D01 CLAMP, MAGNETO PULSER LEADCLAMP, MAGNETO PULSER LEAD
-
507130-0512B BOLT, SENSORBOLT, SENSOR
-
607130-0525B BOLT, STATORBOLT, STATOR
-
709159-12068 NUTNUT
-
809160-12051 WASHER (12X27X2)WASHER (12X27X2)
-
909420-04008 KEYKEY
