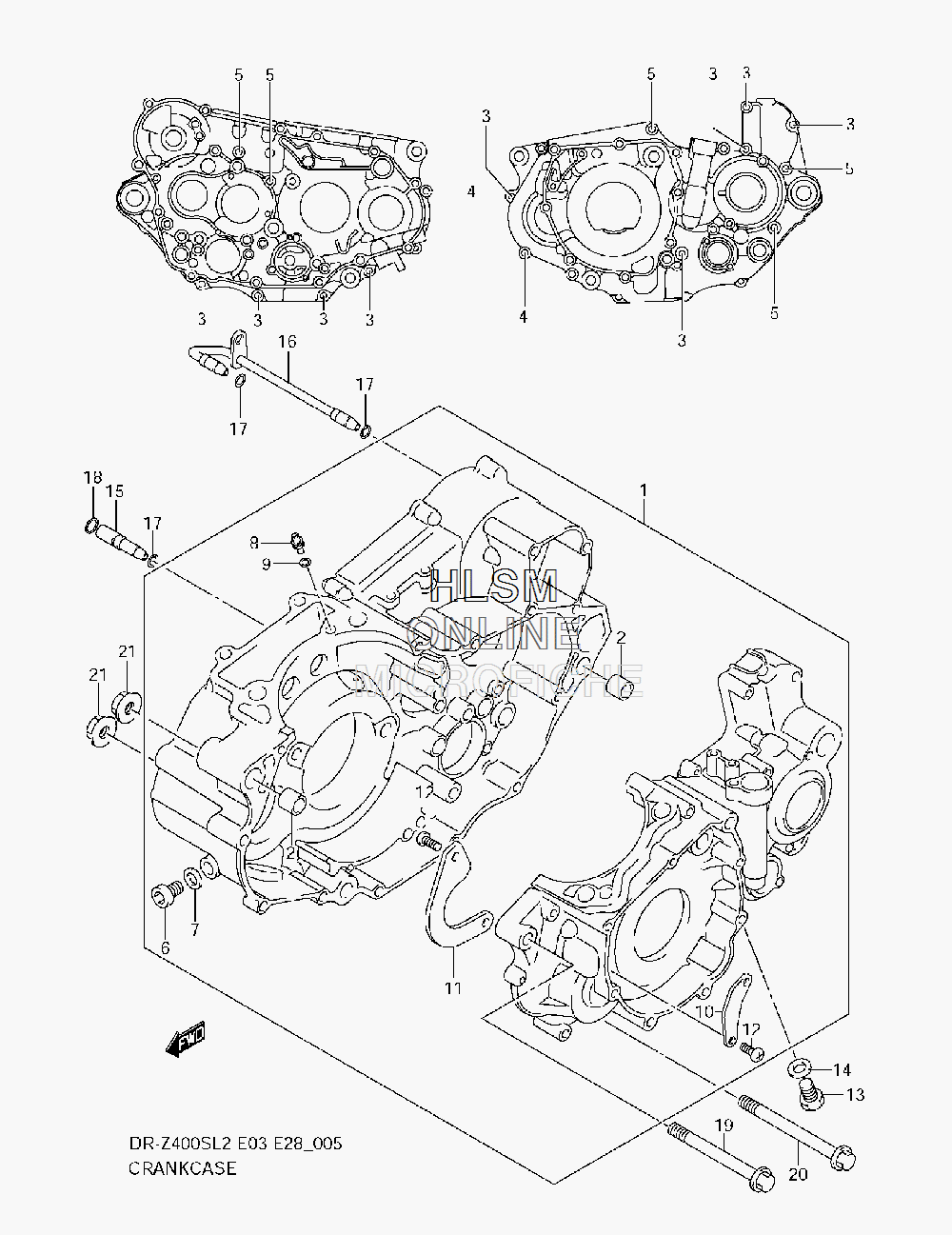

CRANKCASE для Suzuki DR-Z400SL2 - 2012 года выпуска
-
№АртикулНазвание
-
111301-29853 CRANKCASE SET (INCL. 2-12)CRANKCASE SET (INCL. 2-12)
-
204211-13189 PINPIN
-
301547-0640A BOLTBOLT
-
401547-0655A BOLTBOLT
-
501547-0670A BOLTBOLT
-
609248-10010 PLUGPLUG
-
709168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
809493-80005 JET, OIL GALLERY CYLINDERJET, OIL GALLERY CYLINDER
-
909280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1011323-29F00 SEPARATOR,CRANKCASE OIL NO.1SEPARATOR,CRANKCASE OIL NO.1
-
1111324-29F00 SEPARATOR,CRANKCASE OIL NO.2SEPARATOR,CRANKCASE OIL NO.2
-
1209125-06122 SCREW (6X12)SCREW (6X12)
-
1309247-12011 PLUGPLUG
-
1409168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1511451-29F00 PIPE, OIL INNER NO.1PIPE, OIL INNER NO.1
-
1611460-29F00 PIPE, T/M OIL INNER NO.2PIPE, T/M OIL INNER NO.2
-
1709280-05004 O RING (D:1.9,ID:4.8)O RING (D:1.9,ID:4.8)
-
1809280-07004 O RING (D:1.9,ID:6.8)O RING (D:1.9,ID:6.8)
-
1909103-10110 BOLT (10X100)BOLT (10X100)
-
2009103-10063 BOLT (10X115)BOLT (10X115)
-
2109159-10115 NUTNUT
