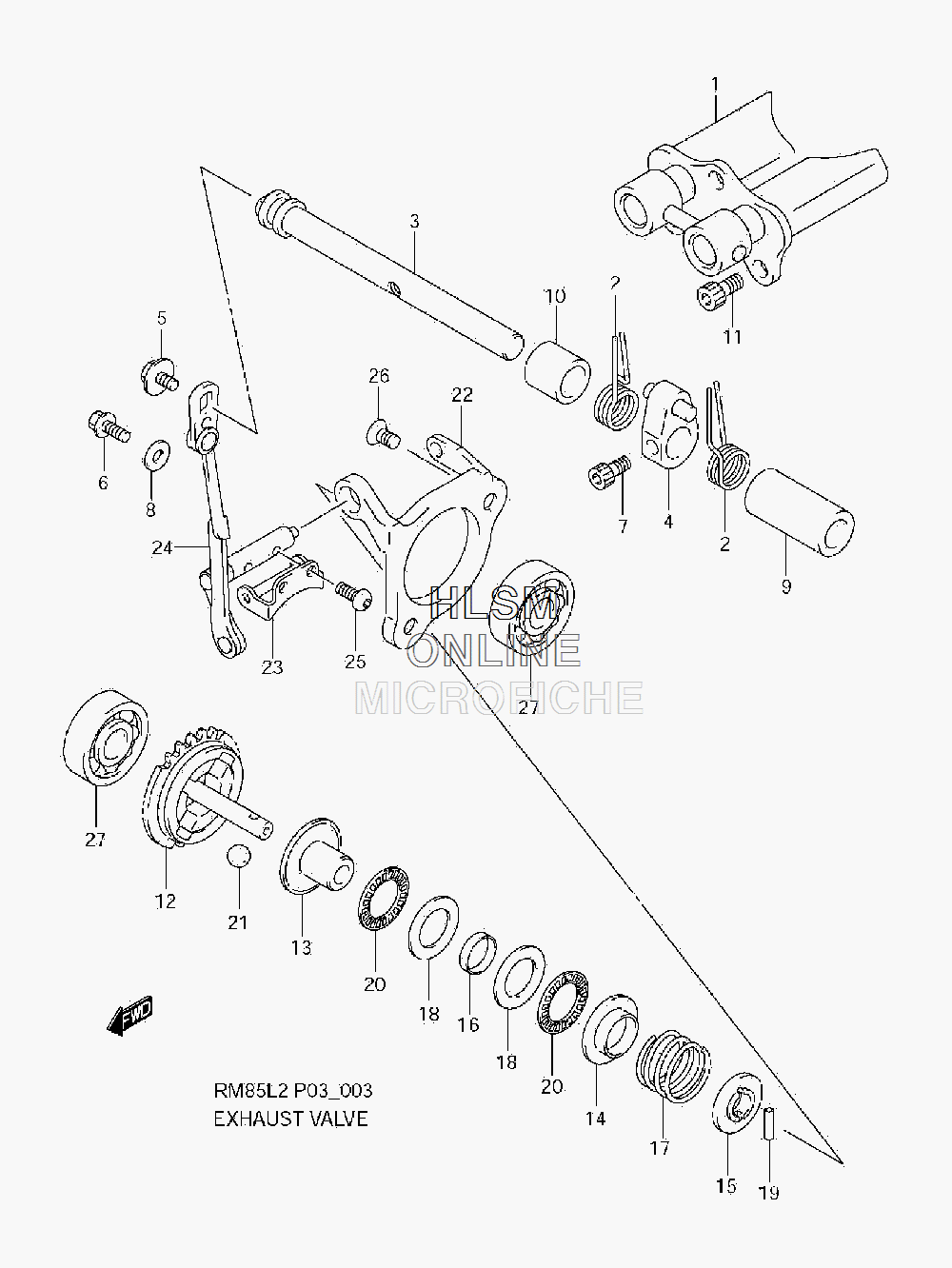

EXHAUST VALVE для Suzuki RM85L2 - 2012 года выпуска
-
№АртикулНазвание
-
111250-03B10 VALVE ASSY, EXHAUSTVALVE ASSY, EXHAUST
-
211257-36F11 SPRING, EXHAUST VALVE SHAFT ARMSPRING, EXHAUST VALVE SHAFT ARM
-
311259-03B10 SHAFT, EXHAUST VALVESHAFT, EXHAUST VALVE
-
411270-36F10 ARM, EXHAUST VALVE SHAFTARM, EXHAUST VALVE SHAFT
-
509103-05022 BOLT (5X10)BOLT (5X10)
-
609103-06256 BOLT (6X10)BOLT (6X10)
-
709106-04003 BOLT (4X8)BOLT (4X8)
-
809160-06127 WASHER (6.5X14X2.3)WASHER (6.5X14X2.3)
-
909180-08138 SPACER (8.4X12X13)SPACER (8.4X12X13)
-
1009180-08189 SPACER (8.5X12X11)SPACER (8.5X12X11)
-
1107130-0512B BOLTBOLT
-
1212670-03810 GOVERNOR, DRIVEGOVERNOR, DRIVE
-
1312672-36F10 GOVERNOR, DRIVENGOVERNOR, DRIVEN
-
1412674-36F10 STOPPER, GOVERNOR SPRING NO.1STOPPER, GOVERNOR SPRING NO.1
-
1512675-36F11 STOPPER, GOVERNOR SPRING NO.2STOPPER, GOVERNOR SPRING NO.2
-
1612676-36F10 SPACER, GOVERNORSPACER, GOVERNOR
-
1712677-03B00 SPRING, GOVERNORSPRING, GOVERNOR
-
1809181-15223 SHIM (15X28X1)SHIM (15X28X1)
-
1909261-03017 ROLLER,3X12.5ROLLER,3X12.5
-
2009263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2106111-12004 BALLBALL
-
2212681-03B00 BASE, ACTUATORBASE, ACTUATOR
-
2312682-36F21 ARM, ACTUATORARM, ACTUATOR
-
2412689-03B10 ACTUATOR, EXHAUSTACTUATOR, EXHAUST
-
2509106-04004 BOLT (4X8)BOLT (4X8)
-
2609120-05003 SCREW (5X10)SCREW (5X10)
-
2709262-08005 BEARING (8X22X7)BEARING (8X22X7)
