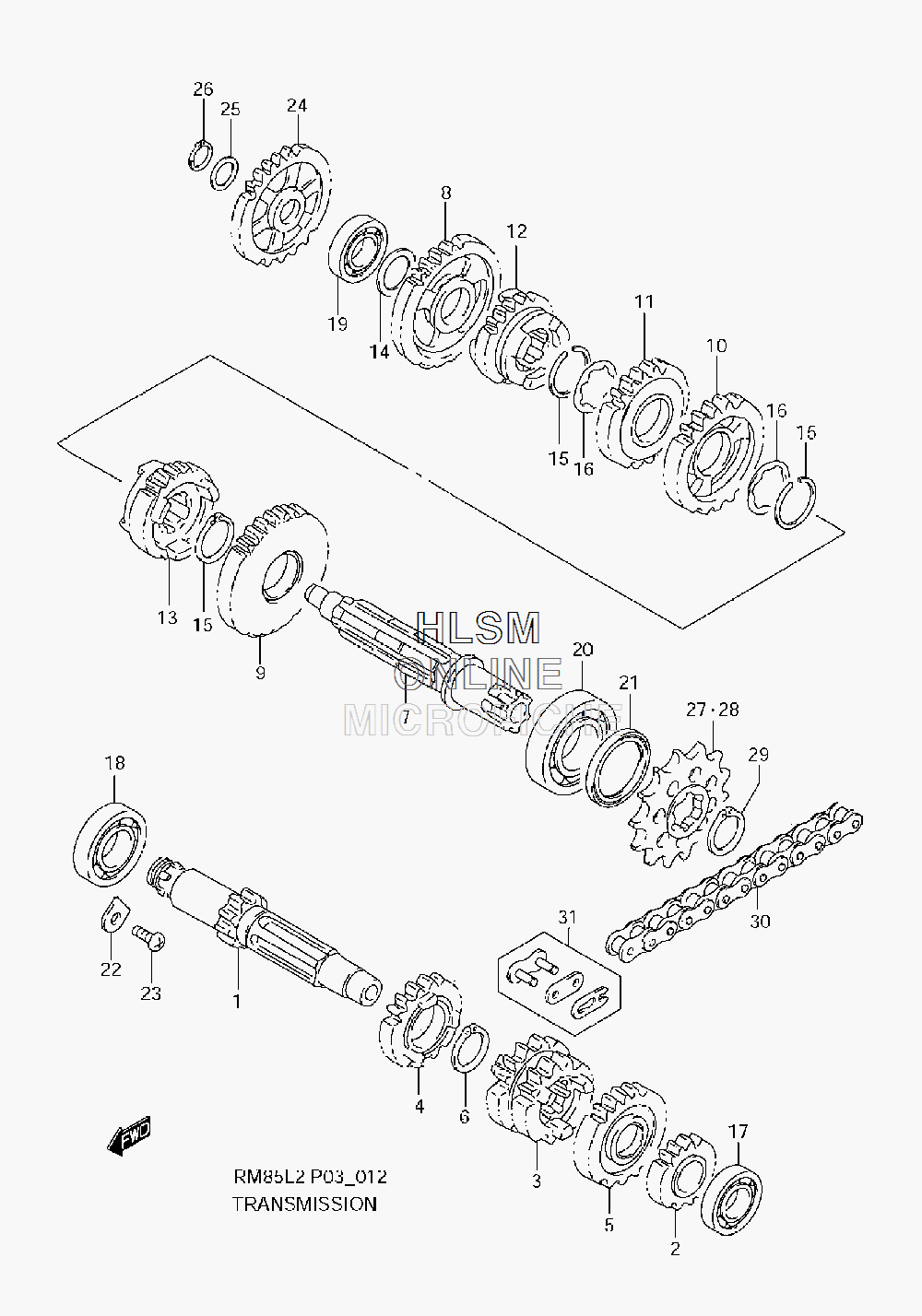

TRANSMISSION для Suzuki RM85L2 - 2012 года выпуска
-
№АртикулНазвание
-
124121-02B42 COUNTERSHAFT (NT:11)COUNTERSHAFT (NT:11)
-
224221-02B02 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
324231-02B03 GEAR, 3/4 DRIVE (NT:14/15)GEAR, 3/4 DRIVE (NT:14/15)
-
424251-02B02 GEAR, 5TH DRIVE (NT:18)GEAR, 5TH DRIVE (NT:18)
-
524260-02B01 GEAR, 6TH DRIVE (NT:22)GEAR, 6TH DRIVE (NT:22)
-
609380-20009 CIRCLIPCIRCLIP
-
724131-02B01 DRIVE SHAFTDRIVE SHAFT
-
824311-02B02 GEAR, 1ST DRIVEN (NT:28)GEAR, 1ST DRIVEN (NT:28)
-
924321-02B02 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
1024331-03B02 GEAR, 3RD DRIVEN (NT:22)GEAR, 3RD DRIVEN (NT:22)
-
1124341-03B02 GEAR, 4TH DRIVEN (NT:20)GEAR, 4TH DRIVEN (NT:20)
-
1224351-02B02 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
1324361-02B03 GEAR, 6TH DRIVEN (NT:23)GEAR, 6TH DRIVEN (NT:23)
-
1409181-15195 SHIM (15X26X1)SHIM (15X26X1)
-
1509380-22006 CIRCLIPCIRCLIP
-
1609167-22011 LOCK WASHERLOCK WASHER
-
1708113-62027 BEARING (15X35X11)BEARING (15X35X11)
-
1809262-20106 BEARING (20X42X12)BEARING (20X42X12)
-
1908113-62027 BEARING (15X35X11)BEARING (15X35X11)
-
2009262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
2109283-20057 OIL SEAL (20X35X5)OIL SEAL (20X35X5)
-
2224741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
2302112-0612A SCREWSCREW
-
2426260-02B40 GEAR, KICK STARTER IDLEGEAR, KICK STARTER IDLE
-
2509181-12158 SHIM (12X20X0.5)SHIM (12X20X0.5)
-
2608331-3112A CIRCLIPCIRCLIP
-
2727511-20421 SPROCKET, ENGINE (NT:14)SPROCKET, ENGINE (NT:14)
-
2827511-20401 SPROCKET, ENGINE (NT:13)SPROCKET, ENGINE (NT:13)
-
2909380-20009 CIRCLIPCIRCLIP
-
3027600-05350 CHAIN ASSY, DRIVE (118L)CHAIN ASSY, DRIVE (118L)
-
3127620-03B00 JOINT SET, CHAINJOINT SET, CHAIN
