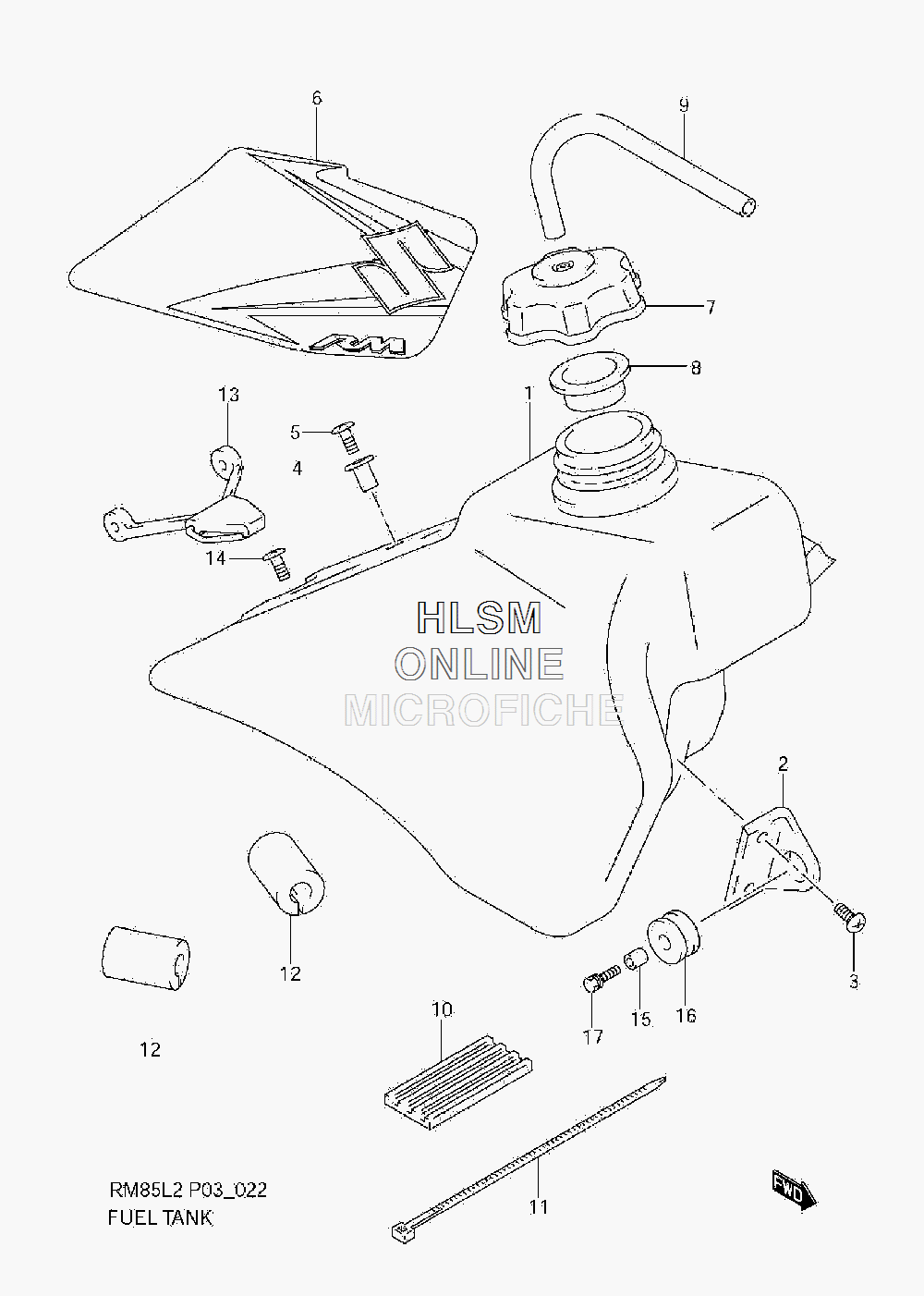

FUEL TANK для Suzuki RM85L2 - 2012 года выпуска
-
№АртикулНазвание
-
144110-03B10-YU1 TANK, FUEL (YU1 - YELLOW)TANK, FUEL (YU1 - YELLOW)
-
244131-27C01 BRACKET, FRONTBRACKET, FRONT
-
302142-0612B SCREWSCREW
-
444132-27C01 HOOK, FRONTHOOK, FRONT
-
502142-0620B SCREWSCREW
-
668110-03BK0-HBP TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
744210-37F00 CAP, FUEL TANK FILLERCAP, FUEL TANK FILLER
-
844248-27C00 GASKET, FUEL TANK FILLER CAPGASKET, FUEL TANK FILLER CAP
-
909352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
1044541-14300 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
1109407-25402 CLAMP (L:248)CLAMP (L:248)
-
1244542-17300 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1344560-26C00 BAND, REARBAND, REAR
-
1409139-06134 SCREW (6X13.5)SCREW (6X13.5)
-
1509180-06268 SPACER (6.5X9X13.5)SPACER (6.5X9X13.5)
-
1614762-01B01 CUSHIONCUSHION
-
1709116-06195 BOLT (6X35)BOLT (6X35)
