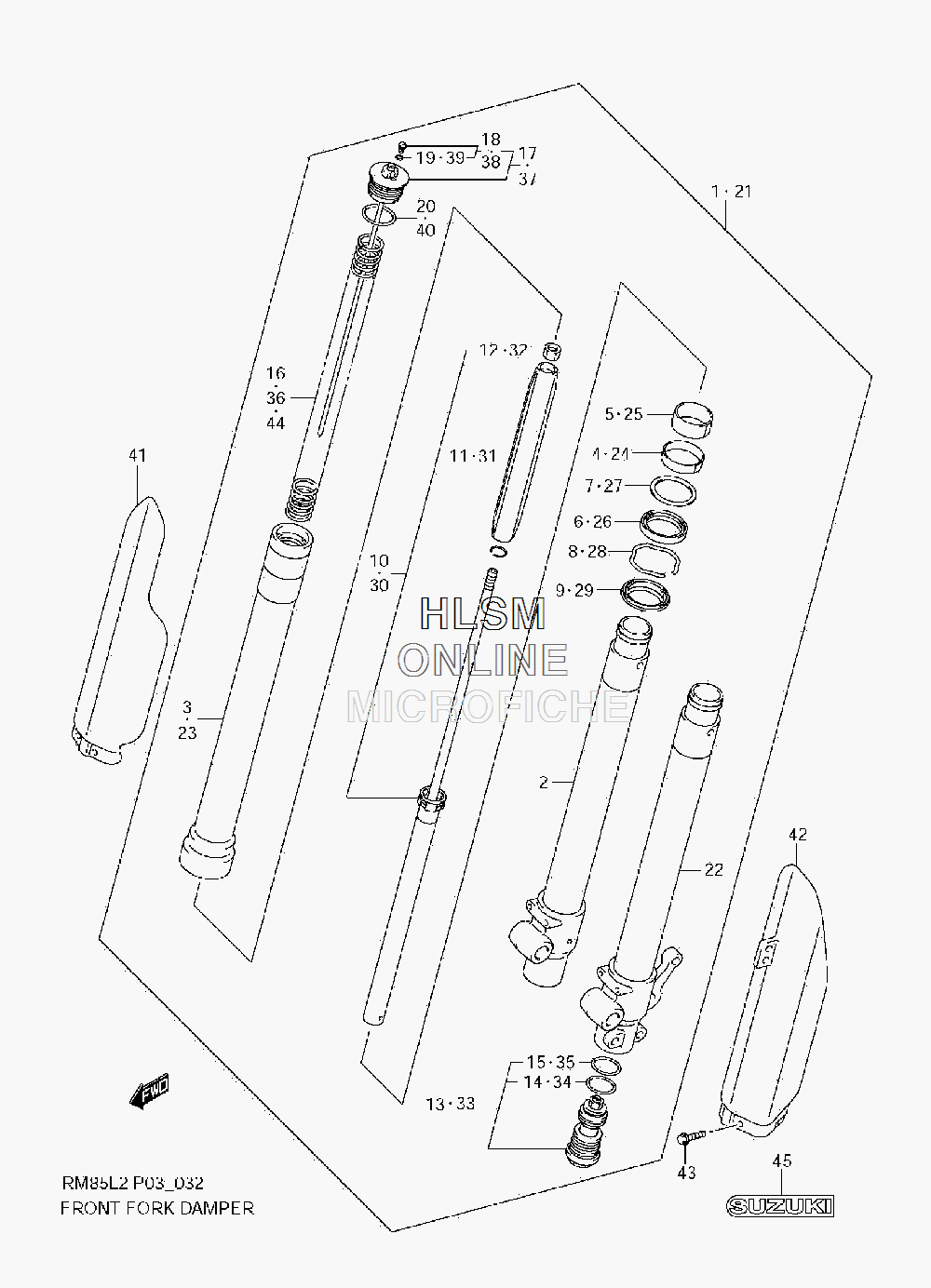

SUSPENSION - FRONT FORK для Suzuki RM85L2 - 2012 года выпуска
-
№АртикулНазвание
-
151103-03B70 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-20)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-20)
-
251110-03B30 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
351130-03B30 TUBE, OUTERTUBE, OUTER
-
451167-03B30 BUSH, GUIDEBUSH, GUIDE
-
551121-03B30 BUSH, SLIDEBUSH, SLIDE
-
651153-03B30 SEAL, OILSEAL, OIL
-
751158-03B30 SPACER, SEALSPACER, SEAL
-
851156-03B30 RING, STOPPERRING, STOPPER
-
951173-03B30 SEAL, DUSTSEAL, DUST
-
1051190-03B70 CYLINDER (INCL. 11, 12)CYLINDER (INCL. 11, 12)
-
1151172-03B30 GUIDE, SPRINGGUIDE, SPRING
-
1251129-03B30 NUTNUT
-
1351170-03B70 BOLT, CENTER (INCL. 14, 15)BOLT, CENTER (INCL. 14, 15)
-
1451177-36E20 O RINGO RING
-
1551175-03B30 O RINGO RING
-
1651171-03B50 SPRING, FRONT (K=0.28)SPRING, FRONT (K=0.28)
-
1751351-03B70 BOLT, FORK (INCL. 18)BOLT, FORK (INCL. 18)
-
1851357-27C40 BOLT, PLUG (INCL. 19)BOLT, PLUG (INCL. 19)
-
1951117-19C10 O RINGO RING
-
2051117-29EA0 O RINGO RING
-
2151104-03B70 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 22-40)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 22-40)
-
2251120-03B70 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
2351130-03B30 TUBE, OUTERTUBE, OUTER
-
2451167-03B30 BUSH, GUIDEBUSH, GUIDE
-
2551121-03B30 BUSH, SLIDEBUSH, SLIDE
-
2651153-03B30 SEAL, OILSEAL, OIL
-
2751158-03B30 SPACER, SEALSPACER, SEAL
-
2851156-03B30 RING, STOPPERRING, STOPPER
-
2951173-03B30 SEAL, DUSTSEAL, DUST
-
3051190-03B70 CYLINDER (INCL. 31, 32)CYLINDER (INCL. 31, 32)
-
3151172-03B30 GUIDE, SPRINGGUIDE, SPRING
-
3251129-03B30 NUTNUT
-
3351170-03B70 BOLT, CENTER (INCL. 34, 35)BOLT, CENTER (INCL. 34, 35)
-
3451177-36E20 O RINGO RING
-
3551175-03B30 O RINGO RING
-
3651171-03B50 SPRING, FRONT (K=0.28)SPRING, FRONT (K=0.28)
-
3751351-03B70 BOLT, FORK (INCL. 38)BOLT, FORK (INCL. 38)
-
3851357-27C40 BOLT, PLUG (INCL. 39)BOLT, PLUG (INCL. 39)
-
3951117-19C10 O RINGO RING
-
4051117-29EA0 O RINGO RING
-
4151501-03B10 PROTECTOR, FRONT FORK, RIGHT HANDPROTECTOR, FRONT FORK, RIGHT HAND
-
4251511-03B20 PROTECTOR, FRONT FORK, LEFT HANDPROTECTOR, FRONT FORK, LEFT HAND
-
4309103-06256 BOLT (6X10)BOLT (6X10)
-
4451171-03B30 SPRING, FRONT (SOFT K=0.26) (OPT)SPRING, FRONT (SOFT K=0.26) (OPT)
-
4451171-03B60 SPRING, FRONT (,HARD K=0.30) (OPT)SPRING, FRONT (,HARD K=0.30) (OPT)
-
4568111-03410-DSV EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
