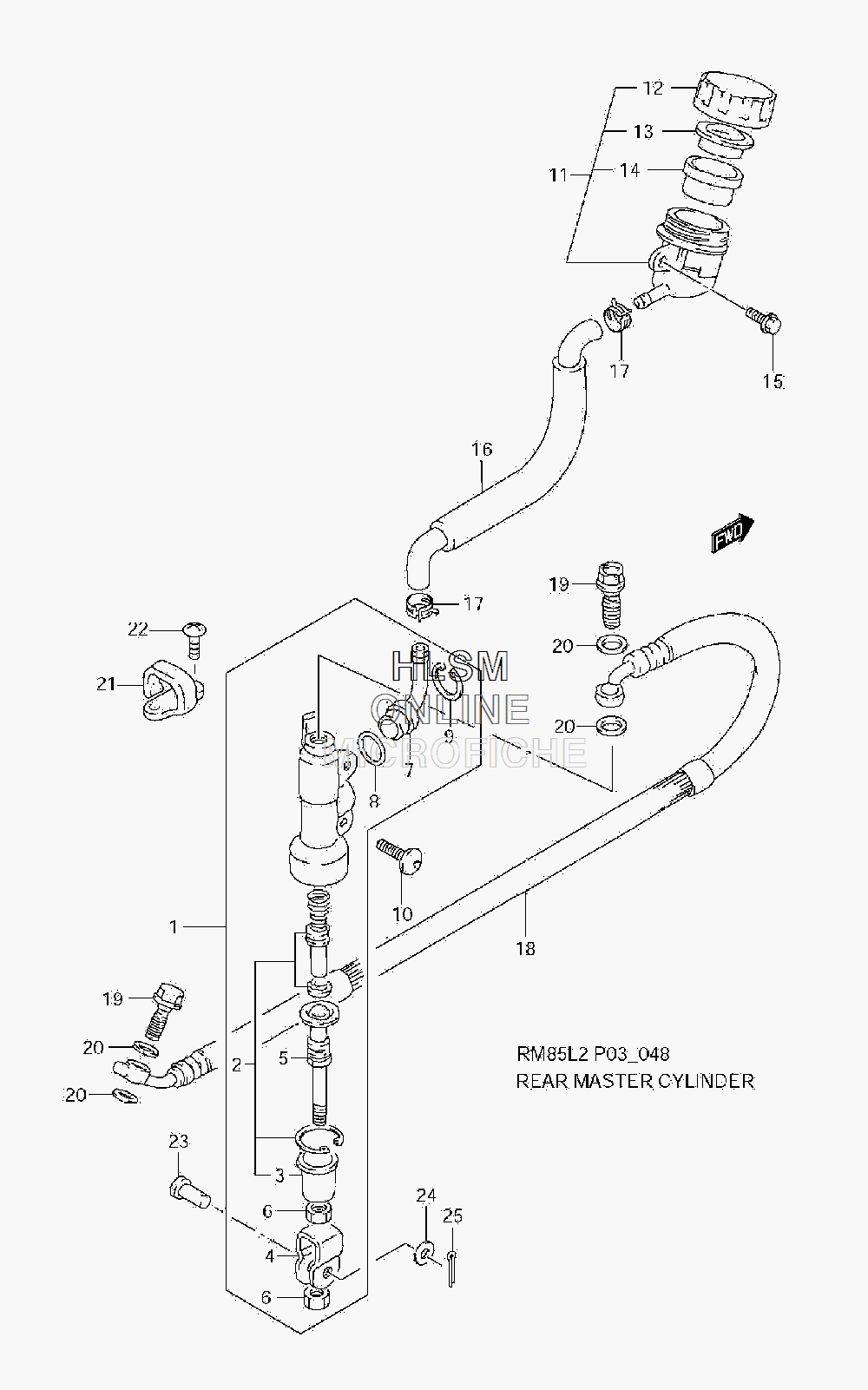

BRAKE - REAR MASTER CYLINDER для Suzuki RM85LL2 - 2012 года выпуска
-
№АртикулНазвание
-
169600-03B00 CYLINDER ASSY, REAR MASTER (INCL. 2-9)CYLINDER ASSY, REAR MASTER (INCL. 2-9)
-
269600-04820 PISTON/CUP SET (INCL. 3)PISTON/CUP SET (INCL. 3)
-
369691-00A00 BOOTBOOT
-
469692-37F20 YOKEYOKE
-
569670-40A00 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769672-00B20 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
969674-00B20 CIRCLIPCIRCLIP
-
1009139-06139 SCREW (6X16)SCREW (6X16)
-
1169740-03D00 TANK ASSY, RESERVOIR (INCL. 12-14)TANK ASSY, RESERVOIR (INCL. 12-14)
-
1269669-03D00 CAPCAP
-
1369668-00B20 PLATEPLATE
-
1469667-00B20 DIAPHRAGMDIAPHRAGM
-
1509103-06233 BOLT (6X12)BOLT (6X12)
-
1669731-02B50 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
1769735-00B20 CLAMPCLAMP
-
1869480-03B70 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1909360-10062 UNIONUNION
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2161196-00B21 CLAMP, REAR BRAKE HOSECLAMP, REAR BRAKE HOSE
-
2202142-0510B SCREWSCREW
-
2309200-08048 PINPIN
-
2409160-08090 WASHER (8.5X14X1.5)WASHER (8.5X14X1.5)
-
2504111-2015A PIN, COTTERPIN, COTTER
