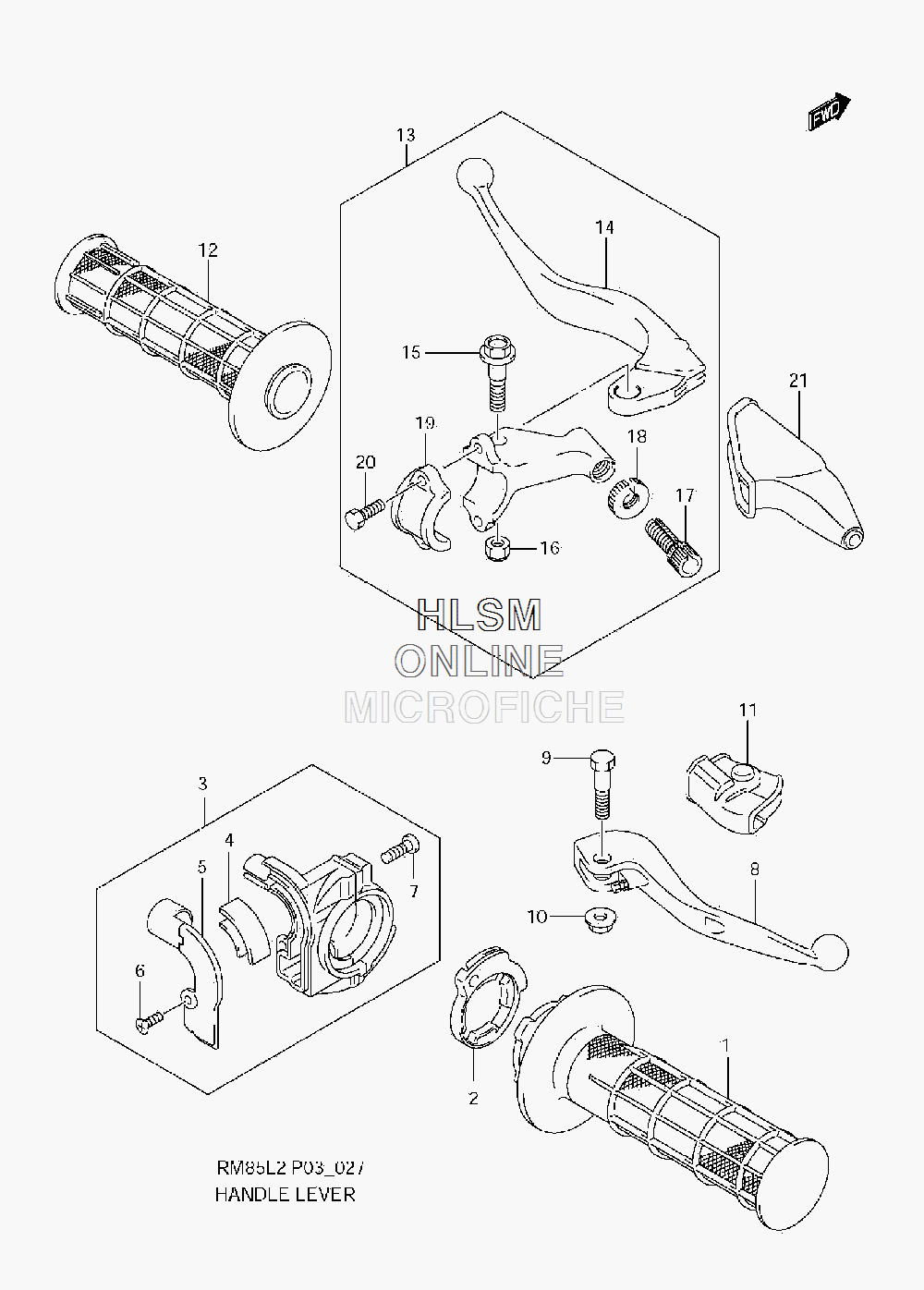

HANDLEBAR - LEVERS для Suzuki RM85LL2 - 2012 года выпуска
-
№АртикулНазвание
-
157110-27C00 GRIP, THROTTLEGRIP, THROTTLE
-
257114-20430 ROTOR, THROTTLE GRIPROTOR, THROTTLE GRIP
-
357100-03D10 CASE ASSY, THROTTLE (INCL. 4-7)CASE ASSY, THROTTLE (INCL. 4-7)
-
457122-03D10 GUIDE, PIECEGUIDE, PIECE
-
557129-03D10 COVERCOVER
-
602132-0406B SCREWSCREW
-
702112-0516A SCREWSCREW
-
857310-37F00 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
957431-14500 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
1008316-1006B NUTNUT
-
1157343-35G00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
1257211-27C00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1357500-28C12 LEVER ASSY, CLUTCH (INCL. 14-20)LEVER ASSY, CLUTCH (INCL. 14-20)
-
1457621-28C00 LEVER, CLUTCHLEVER, CLUTCH
-
1557431-28C01 BOLTBOLT
-
1608319-2106A NUTNUT
-
1757441-28C10 ADJUSTER, CABLEADJUSTER, CABLE
-
1857442-28C00 NUTNUT
-
1957512-28C00 BRACKETBRACKET
-
2001500-0516B BOLTBOLT
-
2157341-40002 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
