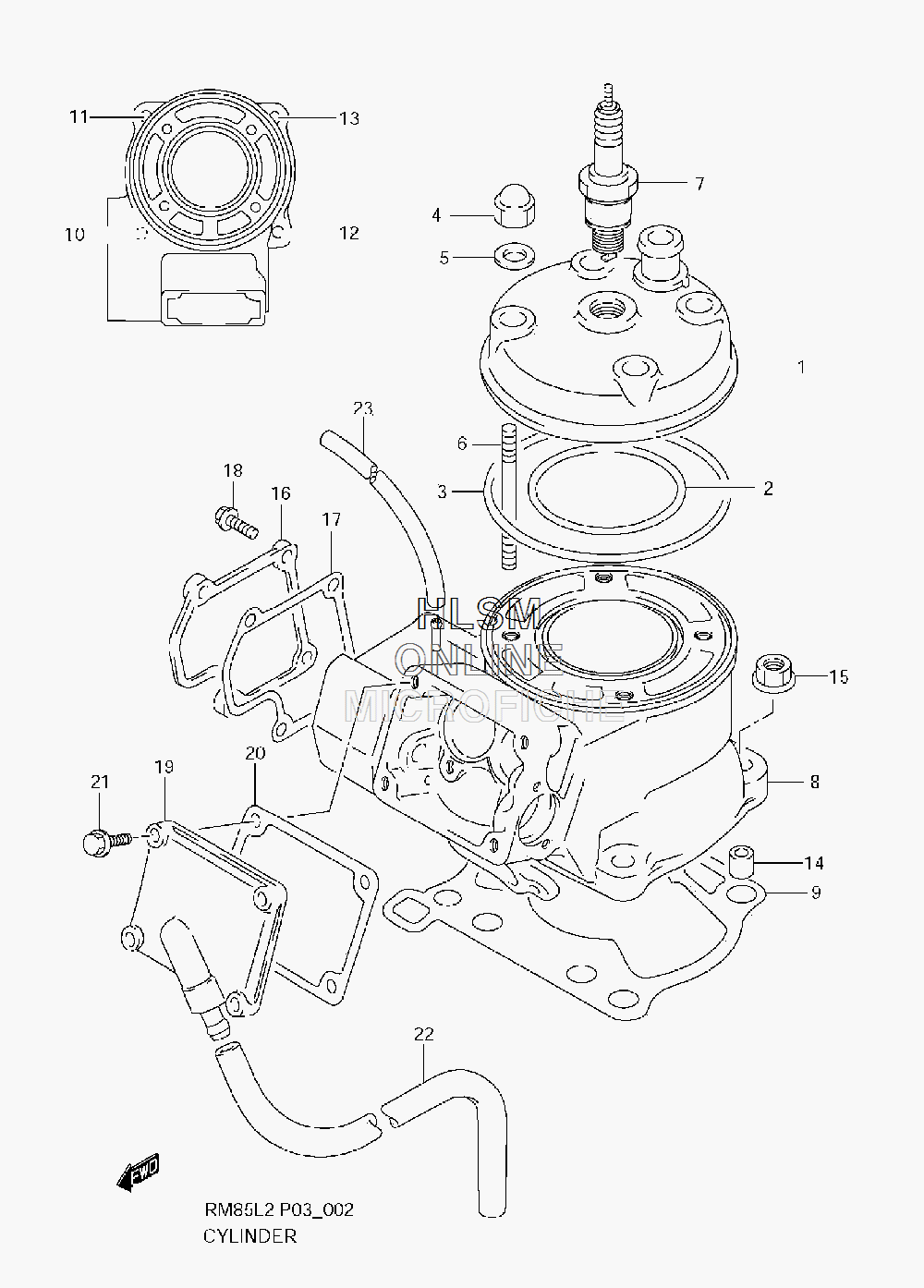

CYLINDER для Suzuki RM85LL2 - 2012 года выпуска
-
№АртикулНазвание
-
111111-03B10 HEAD, CYLINDERHEAD, CYLINDER
-
211147-03B00 O RING, CYLINDER HEAD NO.1O RING, CYLINDER HEAD NO.1
-
311148-03B00 O RING, CYLINDER HEAD NO.2O RING, CYLINDER HEAD NO.2
-
409159-08049 NUTNUT
-
509168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
609108-08227 STUD BOLTSTUD BOLT
-
709482-00360 SPARK PLUG (BR10ES) NGKSPARK PLUG (BR10ES) NGK
-
811200-03830 CYLINDER SETCYLINDER SET
-
911241-03B01 GASKET, CYLINDERGASKET, CYLINDER
-
1001421-0820A STUD BOLTSTUD BOLT
-
1101421-0825A STUD BOLTSTUD BOLT
-
1209108-08220 STUD BOLTSTUD BOLT
-
1301421-0835A STUD BOLTSTUD BOLT
-
1409206-11004 PINPIN
-
1508316-1008A NUTNUT
-
1611231-02B40 COVER, CYLINDER NO.1COVER, CYLINDER NO.1
-
1711233-02B42 GASKET, CYLINDER COVER NO.1GASKET, CYLINDER COVER NO.1
-
1809103-05016 BOLT (5X16)BOLT (5X16)
-
1911248-12C01 COVER, CYLINDER NO.2COVER, CYLINDER NO.2
-
2011238-01B30-H17 GASKET, CYLINDER COVER NO.2GASKET, CYLINDER COVER NO.2
-
2109103-05016 BOLT (5X16)BOLT (5X16)
-
2209359-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2309352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
