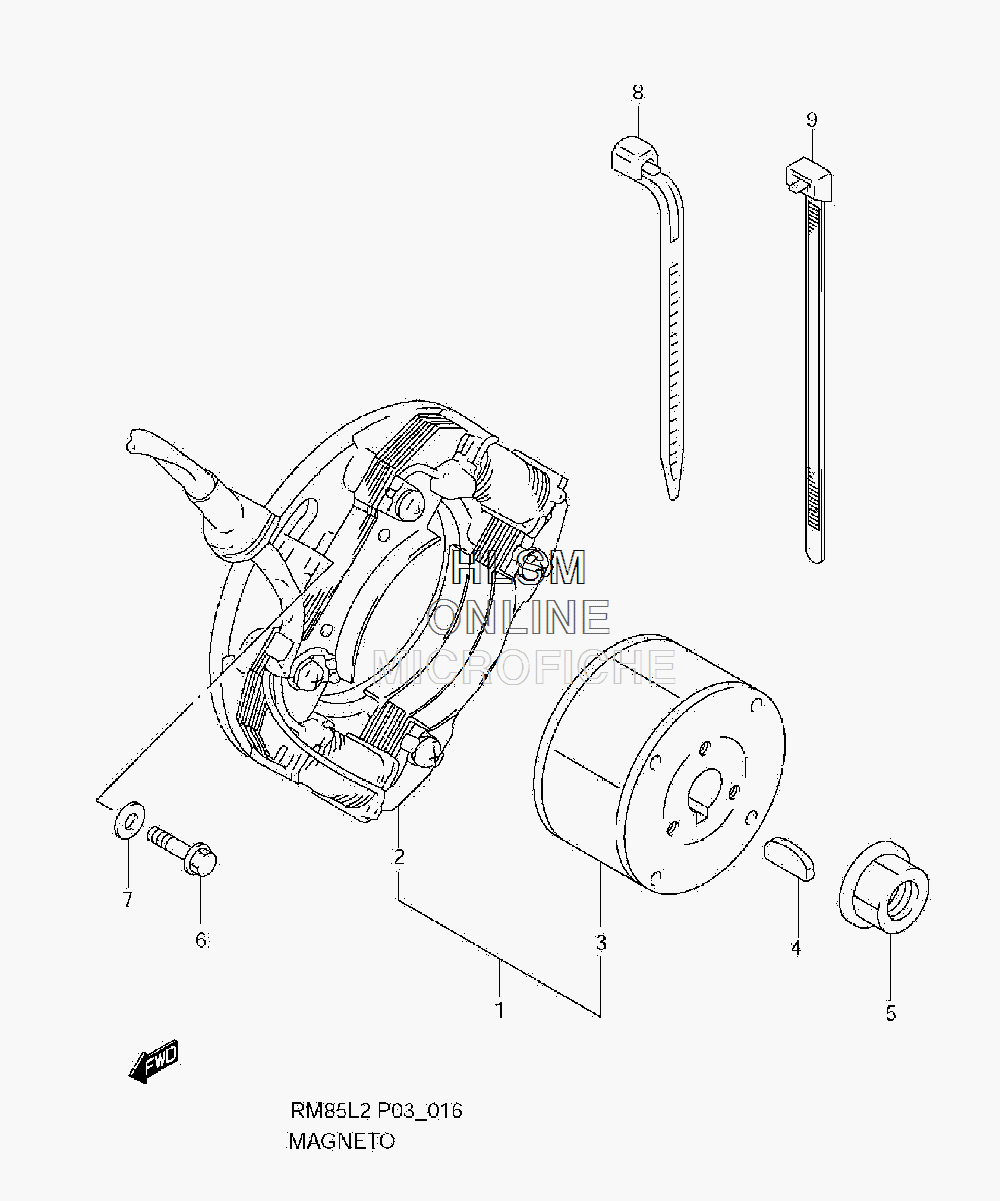

MAGNETO для Suzuki RM85LL2 - 2012 года выпуска
-
№АртикулНазвание
-
132100-02B32 MAGNETO ASSYMAGNETO ASSY
-
232101-02B32 STATOR ASSY.STATOR ASSY.
-
332102-02B31 ROTOR (INCL. 2, 3)ROTOR (INCL. 2, 3)
-
409420-04008 KEYKEY
-
508316-1010B NUTNUT
-
601547-06207 BOLT 6 X 20BOLT 6 X 20
-
708322-0106B WASHERWASHER
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
909407-15401 CLAMP (L:150)CLAMP (L:150)
