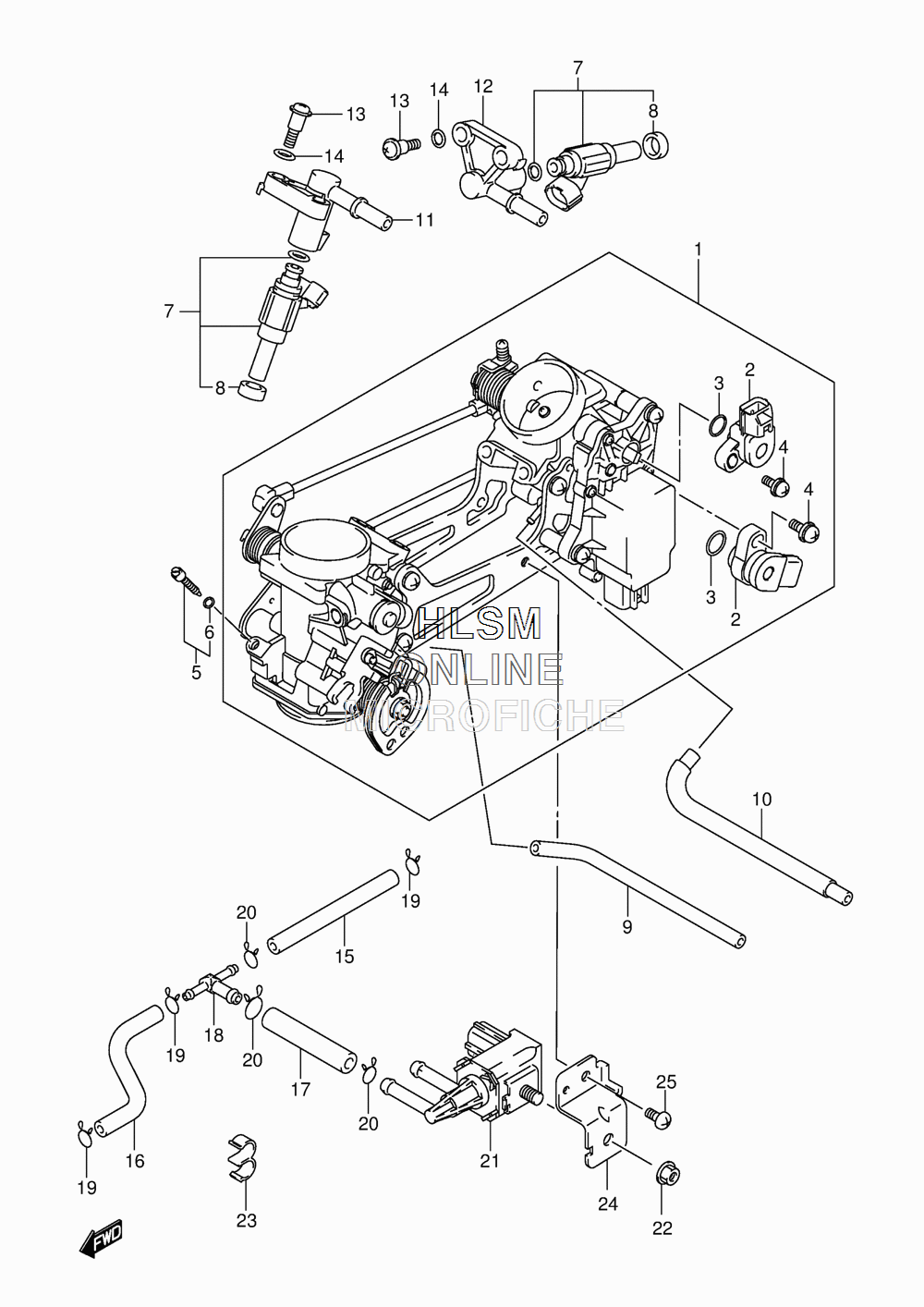

CARBURETOR - THROTTLE BODY (CALIF.) для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
113405-31J10 THROTTLE BODYTHROTTLE BODY
-
213580-27G21 SENSOR ASSYSENSOR ASSY
-
313575-29G00 O RINGO RING
-
413605-02F00 SCREWSCREW
-
513662-22J00 ADJUSTERADJUSTER
-
613453-36F00 O RINGO RING
-
715710-31J00 INJECTOR ASSYINJECTOR ASSY
-
815722-14J00 SEALSEAL
-
913683-48G10 HOSEHOSE
-
1013683-31J20 HOSEHOSE
-
1115731-11J00 DELIVERY PIPEDELIVERY PIPE
-
1215732-11J00 DELIVERY PIPEDELIVERY PIPE
-
1313601-11J00 SCREW, DELIVERY PIPESCREW, DELIVERY PIPE
-
1413602-29G00 PACKINGPACKING
-
1513681-06G40 HOSEHOSE
-
1613683-31J00 HOSEHOSE
-
1713683-31J10 HOSEHOSE
-
1813685-04F10 NIPPLENIPPLE
-
1913671-12C00 CLIPCLIP
-
2013671-48B10 CLIPCLIP
-
2118117-52G10 VALVE, CANISTER PURGEVALVE, CANISTER PURGE
-
2208316-1006A NUTNUT
-
2309408-00200 CLAMPCLAMP
-
2413627-31J00 BRACKETBRACKET
-
2513602-06128 SCREWSCREW
