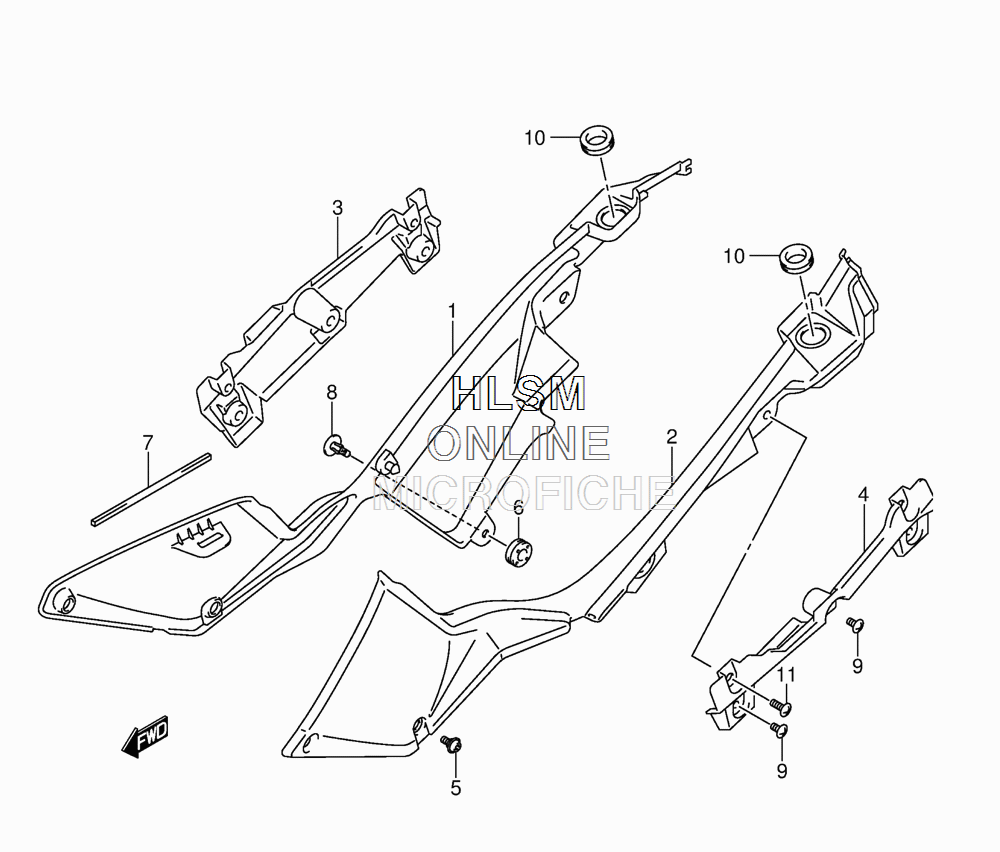

SIDE COVER для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
147111-31J00 COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
247211-31J00 COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
347411-31J00 COVER, FRAME REAR, RIGHTCOVER, FRAME REAR, RIGHT
-
447511-31J00 COVER, FRAME REAR, LEFTCOVER, FRAME REAR, LEFT
-
509139-05074 BOLT (5X13)BOLT (5X13)
-
609320-08028 CUSHIONCUSHION
-
747121-31J00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
894479-35F00 CLIPCLIP
-
947913-31J00 SCREWSCREW
-
1009320-20010 CUSHIONCUSHION
-
1109139-06120 SCREW (6X16)SCREW (6X16)
