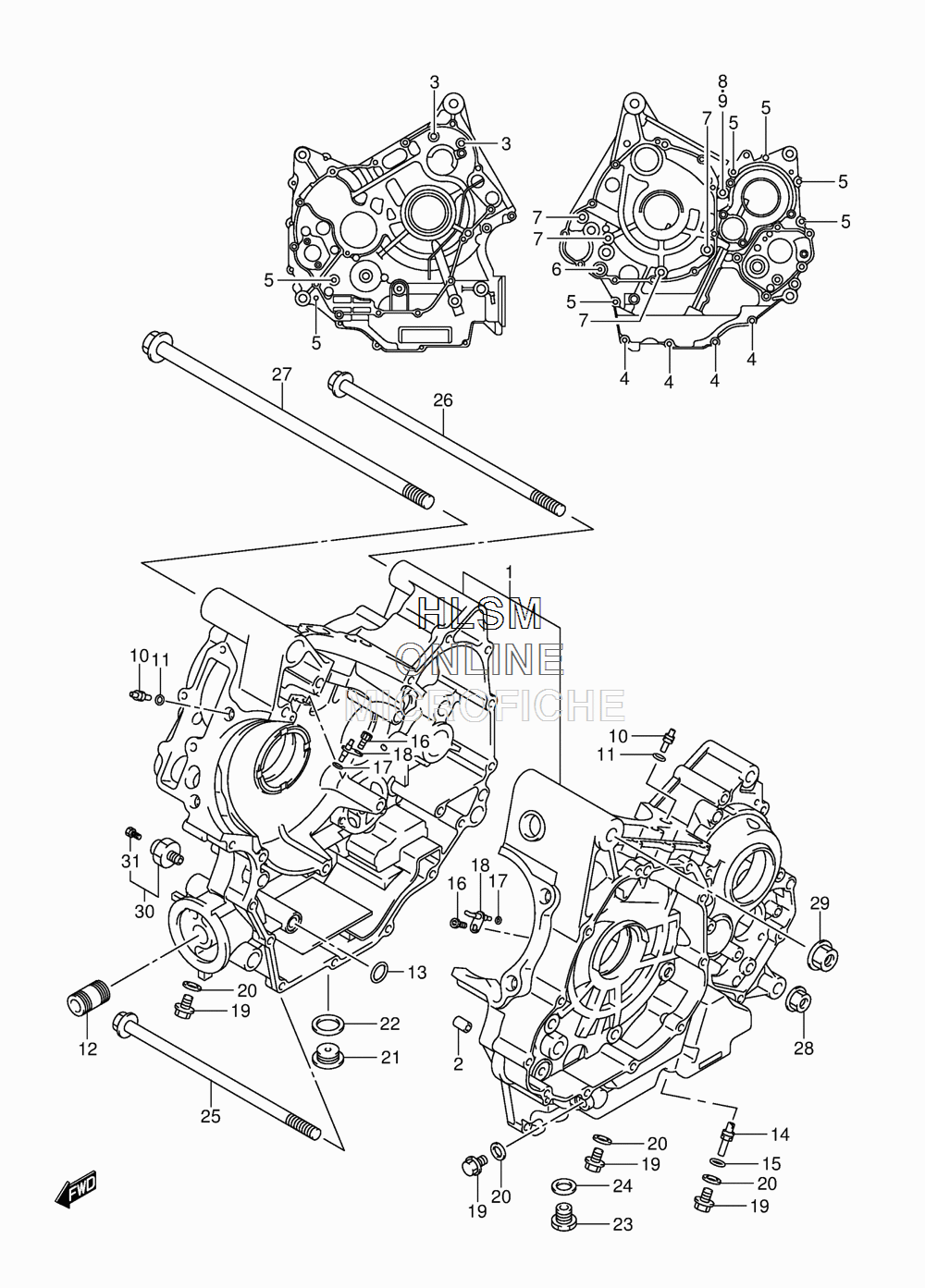

CRANKCASE для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
111306-06830 CRANKCASE SETCRANKCASE SET
-
211319-33E00 PINPIN
-
309106-08142 BOLT (8X110)BOLT (8X110)
-
401547-0630A BOLTBOLT
-
501547-0670A BOLTBOLT
-
601547-0685A BOLTBOLT
-
707120-0890A BOLTBOLT
-
809106-08136 BOLT (8X125)BOLT (8X125)
-
908322-0108A WASHERWASHER
-
1009493-28010 JET AIR(14)JET AIR(14)
-
1109280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1216591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
1309280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
1409493-20014 JET,OIL GALLERYJET,OIL GALLERY
-
1509280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1609106-06075 BOLT (6X12)BOLT (6X12)
-
1709280-05007 O RING (D:1.2,ID:4.7)O RING (D:1.2,ID:4.7)
-
1811390-06G10 JET, PISTON COOLINGJET, PISTON COOLING
-
1901550-0812A BOLTBOLT
-
2009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2109248-16012 PLUG (16X8)PLUG (16X8)
-
2209168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2309247-14036 PLUG (14X20)PLUG (14X20)
-
2409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2509103-10205 BOLT (10X225)BOLT (10X225)
-
2609103-10226 BOLT (10X265)BOLT (10X265)
-
2709103-12016 BOLT (12X300)BOLT (12X300)
-
2808319-3110A NUTNUT
-
2909159-12056 NUTNUT
-
3037820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
3137822-33D00 BOLTBOLT
