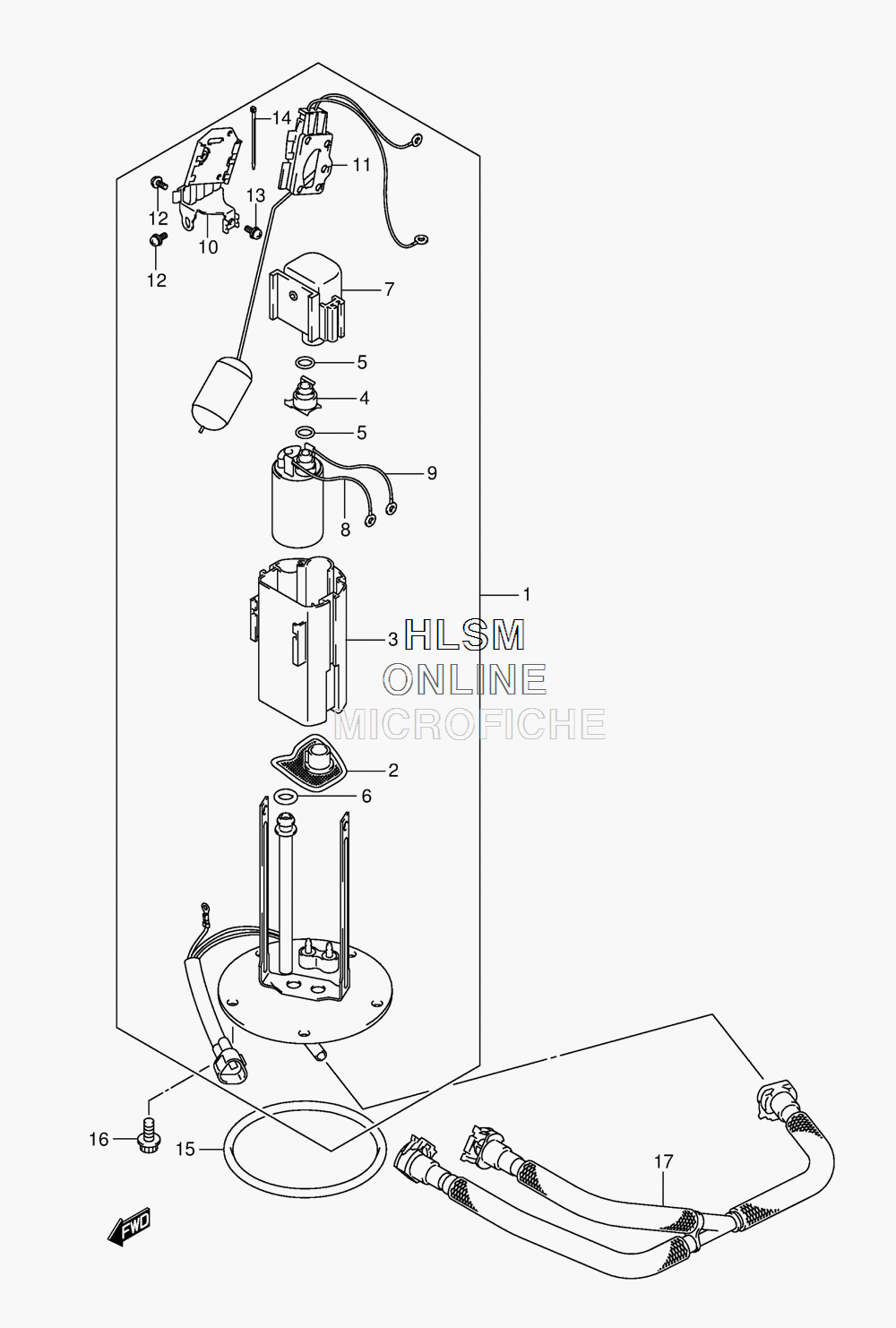

FUEL PUMP для Suzuki DL1000A V-STORM 1000 - 2014 года выпуска
-
№АртикулНазвание
-
115100-31J00 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215420-05H00 STRAINERSTRAINER
-
315111-27G00 CUP, RESERVOIRCUP, RESERVOIR
-
415112-05H00 JOINTJOINT
-
515113-05H00 O RINGO RING
-
615113-35F00 O RINGO RING
-
715610-14J00 REGULATORREGULATOR
-
815114-14J00 WIRE, EARTHWIRE, EARTH
-
915115-08J00 WIRE, LEADWIRE, LEAD
-
1015181-31J00 BRACKET, FUEL GAUGEBRACKET, FUEL GAUGE
-
1134810-31J00 GAUGE ASSYGAUGE ASSY
-
1215116-10F00 SCREWSCREW
-
1315116-31J00 SCREWSCREW
-
1415151-31J00 BINDERBINDER
-
1515201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1607120-0612A BOLTBOLT
-
1715810-31J00 HOSE, FUELHOSE, FUEL
