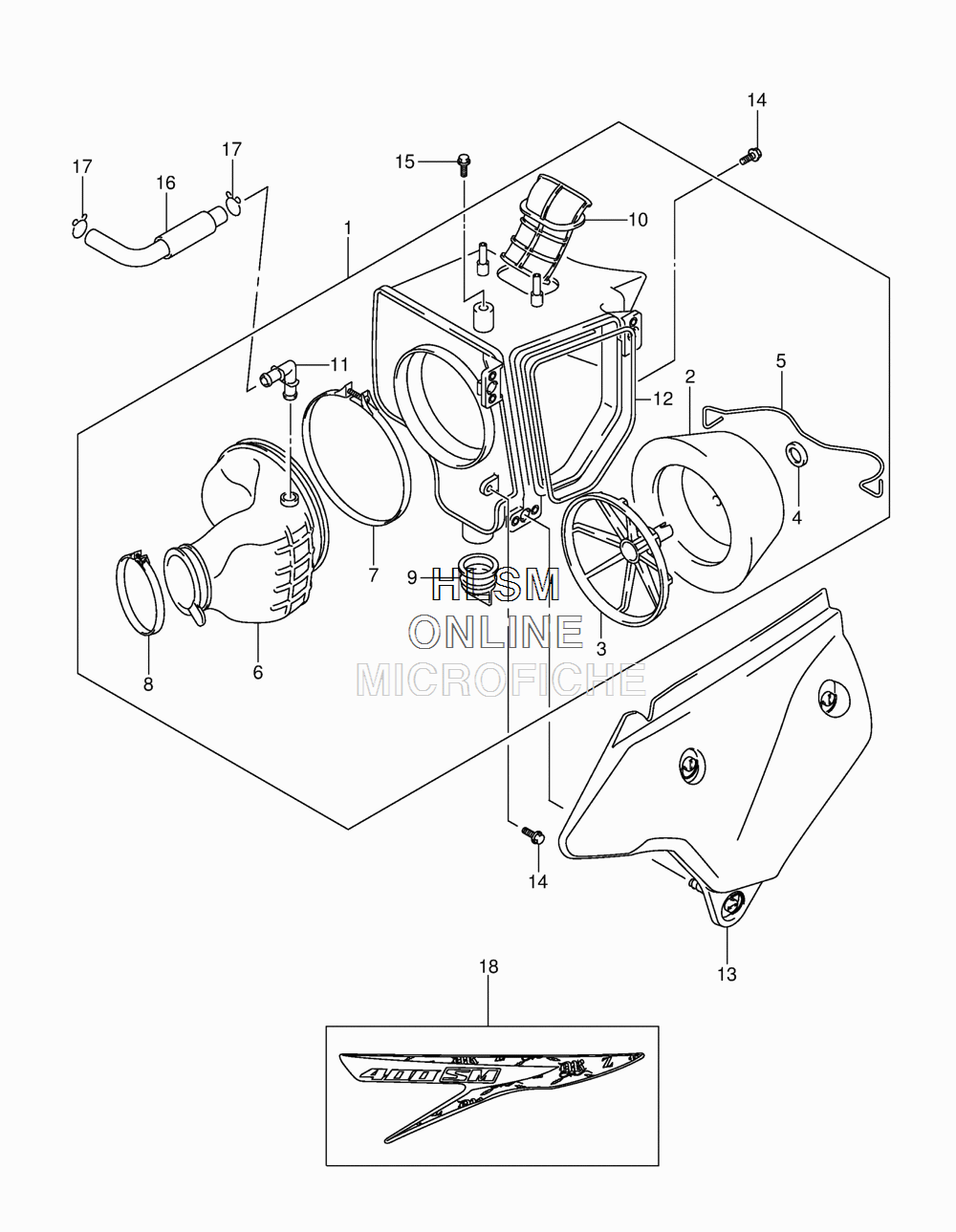

AIR CLEANER для Suzuki DR-Z400SM - 2014 года выпуска
-
№АртикулНазвание
-
113701-29FB2 CLEANER, AIRCLEANER, AIR
-
213780-44E00 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
313791-44E00 HOLDER, FILTERHOLDER, FILTER
-
413796-44E00 SPACERSPACER
-
513941-29F00 SPRINGSPRING
-
613881-29FB0 TUBE, OUTLETTUBE, OUTLET
-
713826-29F00 CLAMP, OUTLET TUBECLAMP, OUTLET TUBE
-
809402-64203 CLAMPCLAMP
-
913872-29F00 VALVEVALVE
-
1013891-29FA0 TUBE, INLETTUBE, INLET
-
1113858-14D20 JOINT, BREATHER HOSEJOINT, BREATHER HOSE
-
1213746-29F00 GASKET, AIR CLEANERGASKET, AIR CLEANER
-
1313740-29FB1-019 CAP, AIR CLEANER (BLACK) FOR 019CAP, AIR CLEANER (BLACK) FOR 019
-
1313740-29FB1-30H CAP, AIR CLEANER (WHITE) FOR 8YMCAP, AIR CLEANER (WHITE) FOR 8YM
-
1401547-0616A BOLTBOLT
-
1509111-06054 BOLT (6X14.6)BOLT (6X14.6)
-
1613850-29FA1 TUBE, BREATHERTUBE, BREATHER
-
1709401-14101 CLIPCLIP
-
1868145-29FF0-HMS TAPE, AIR CLEANER CAP FOR 019TAPE, AIR CLEANER CAP FOR 019
-
1868145-29FG0-HMT TAPE, AIR CLEANER CAP FOR 8YMTAPE, AIR CLEANER CAP FOR 8YM
