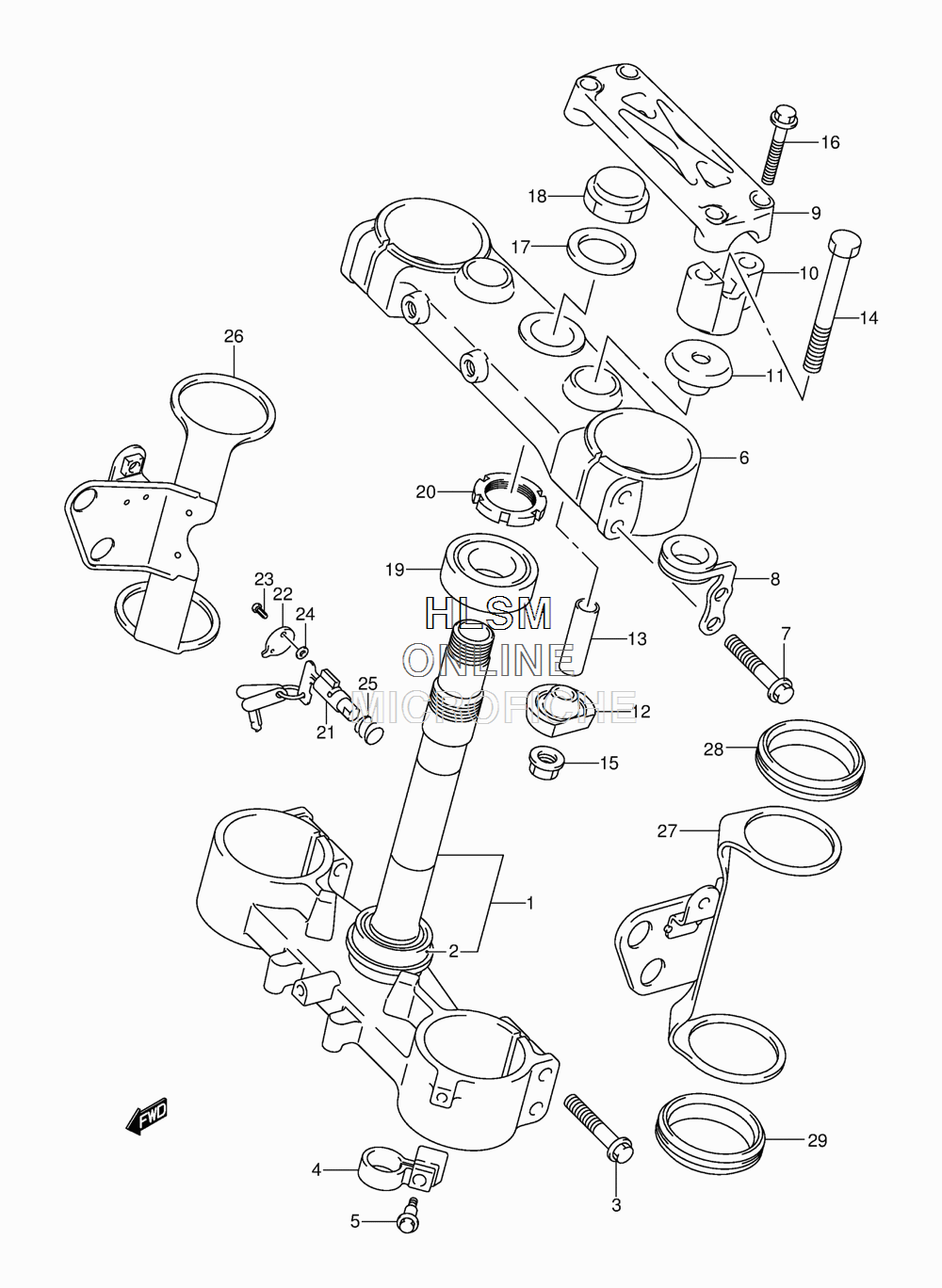

STEERING STEM для Suzuki DR-Z400SM - 2014 года выпуска
-
№АртикулНазвание
-
151410-29F70 BRACKET, UNDERBRACKET, UNDER
-
209265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
351166-35F00 BOLTBOLT
-
458621-29F00 GUIDE, FR BRAKE HOSEGUIDE, FR BRAKE HOSE
-
509111-06087 BOLT (6X20.5)BOLT (6X20.5)
-
651311-29F70 BRACKET, UPPERBRACKET, UPPER
-
751166-35F00 BOLTBOLT
-
851280-29F00 GUIDE, CABLEGUIDE, CABLE
-
956211-29FA0 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
1056221-35G00 HOLDER, HANDLE, UNDERHOLDER, HANDLE, UNDER
-
1156241-42AE0 CUSHIONCUSHION
-
1256242-28C60 CUSHION, UNDERCUSHION, UNDER
-
1356243-42A00 SPACERSPACER
-
1456321-35G00 BOLTBOLT
-
1508319-31107 NUTNUT
-
1651166-35F00 BOLT, HANDLE HOLDERBOLT, HANDLE HOLDER
-
1751356-29E00 WASHER, STEM HEADWASHER, STEM HEAD
-
1851353-27G00 NUT, STEM HEADNUT, STEM HEAD
-
1909265-30014 BEARING (30X52X16)BEARING (30X52X16)
-
2051631-28E00 NUT, STEERINGNUT, STEERING
-
2151900-29F00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2251912-29F00 CAP, STEERING LOCKCAP, STEERING LOCK
-
2351913-29F00 PIN, STEERING LOCKPIN, STEERING LOCK
-
2451914-29F00 WASHER, STEERING LOCKWASHER, STEERING LOCK
-
2551931-29F00 SPRING, STEERING LOCKSPRING, STEERING LOCK
-
2651530-29F10 BRACKET, HEADLAMP HSG RIGHT HANDBRACKET, HEADLAMP HSG RIGHT HAND
-
2751540-29F10 BRACKET, HEADLAMP HSG LEFT HANDBRACKET, HEADLAMP HSG LEFT HAND
-
2851553-29F10 DAMPER, UPPERDAMPER, UPPER
-
2951553-29F20 DAMPER, LOWERDAMPER, LOWER
