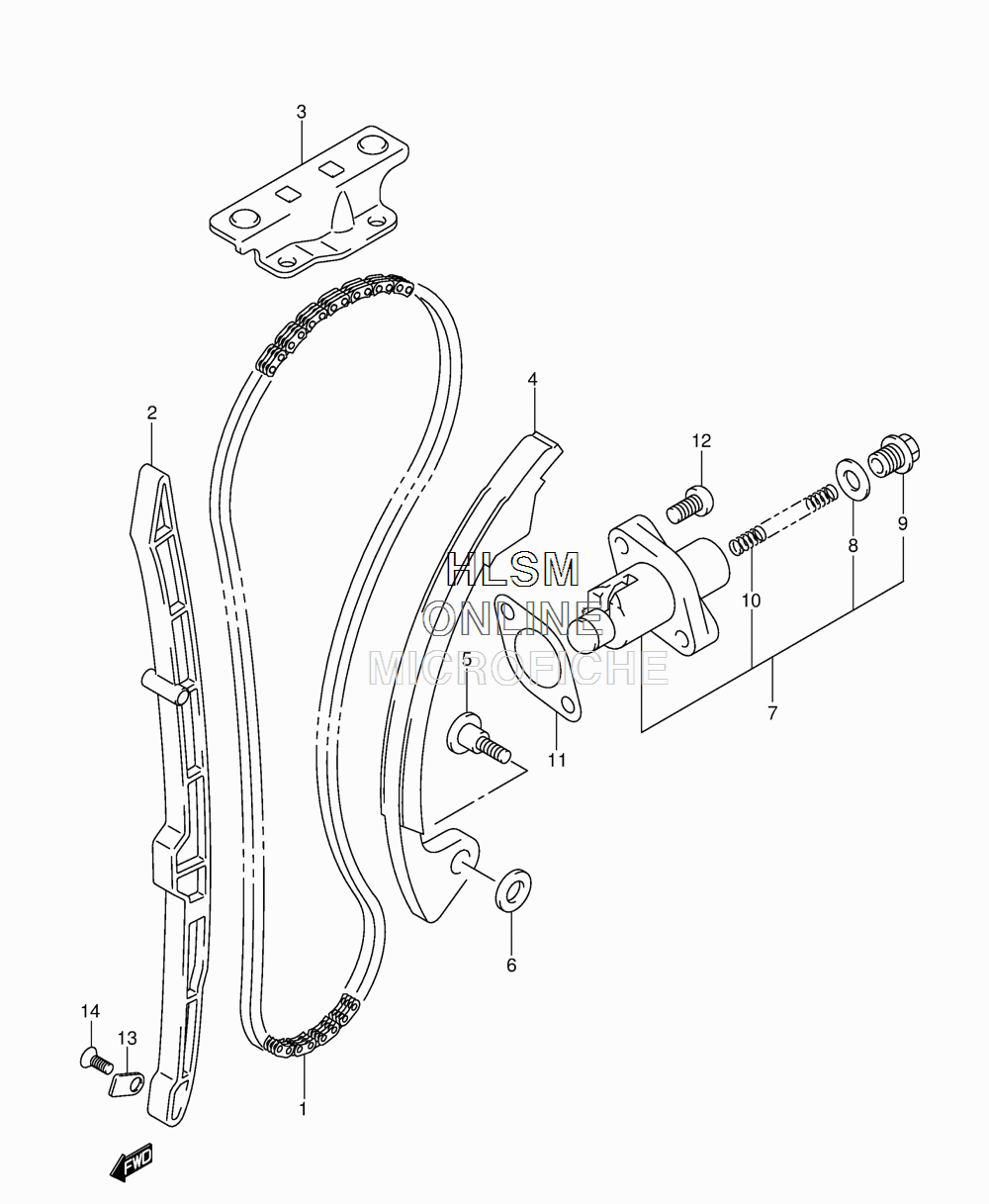

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DR-Z400SM - 2014 года выпуска
-
№АртикулНазвание
-
112760-29F01 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-29F00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-29F00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412811-29F10 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
512812-35C00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
608211-06181 WASHERWASHER
-
712830-29F10 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
812837-24F10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
912833-05A00 PLUGPLUG
-
1012831-39F00 SPRINGSPRING
-
1112837-24A10 GASKET, TENSIONER ADJUSTER (NA)GASKET, TENSIONER ADJUSTER (NA)
-
1207130-0625A BOLTBOLT
-
1312773-24F00 RETAINER, CAM CHAIN GUIDE NO.1RETAINER, CAM CHAIN GUIDE NO.1
-
1409126-06011 SCREW (6X12)SCREW (6X12)
