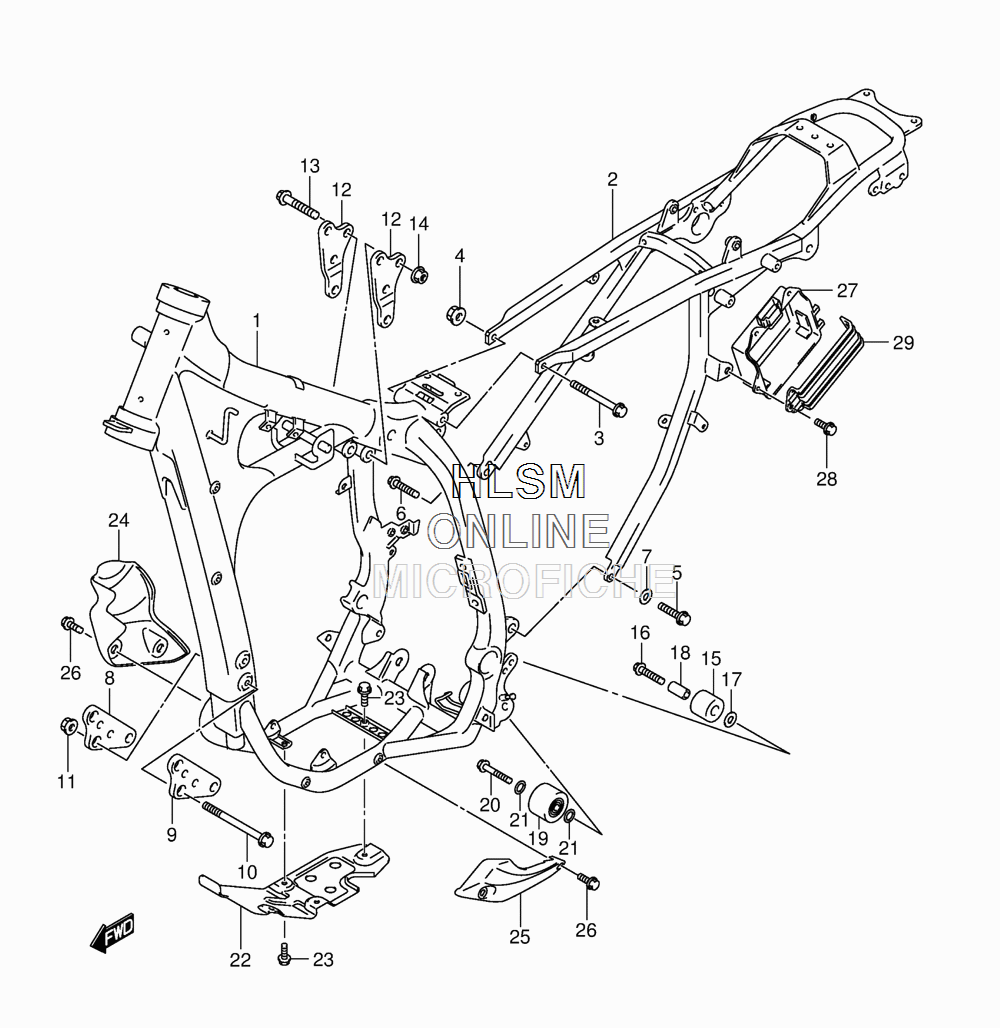

FRAME для Suzuki DR-Z400SM - 2014 года выпуска
-
№АртикулНазвание
-
141100-29F60-019 FRAME (BLACK)FRAME (BLACK)
-
241200-29F70 RAIL, SEATRAIL, SEAT
-
309103-08098 BOLT (8X115)BOLT (8X115)
-
408319-3108A NUTNUT
-
509104-08035 BOLT (8X18)BOLT (8X18)
-
609103-08431 BOLT (8X20)BOLT (8X20)
-
709160-08120 WASHER (8.5X18X2)WASHER (8.5X18X2)
-
841911-29F00 PLATE, ENGINE MOUNT FRONT RIGHT HANDPLATE, ENGINE MOUNT FRONT RIGHT HAND
-
941911-29F00 PLATE, ENGINE MOUNT FRONT LEFT HANDPLATE, ENGINE MOUNT FRONT LEFT HAND
-
1009103-08363 BOLT (8X90)BOLT (8X90)
-
1108319-3108A NUTNUT
-
1241993-29F10 PLATE, ENGINE MOUNT REARPLATE, ENGINE MOUNT REAR
-
1309103-08081 BOLT (8X50)BOLT (8X50)
-
1408319-3108A NUTNUT
-
1543911-13E00 ROLLER, CHAIN UPPERROLLER, CHAIN UPPER
-
1609103-08083 BOLT (8X41)BOLT (8X41)
-
1708211-08201 WASHERWASHER
-
1809180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
-
1943910-27C11 ROLLER, CHAIN LOWERROLLER, CHAIN LOWER
-
2009103-08083 BOLT (8X41)BOLT (8X41)
-
2109181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
2242510-29F00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2301550-0612A BOLTBOLT
-
2442521-29F00 GUARD, WATER PUMPGUARD, WATER PUMP
-
2542531-29F00 GUARD, MAG COVERGUARD, MAG COVER
-
2609111-08087 BOLT (8X16.5)BOLT (8X16.5)
-
2741541-29F00 HOLDER, BATTERYHOLDER, BATTERY
-
2809111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
2941561-29F00 BANDBAND
