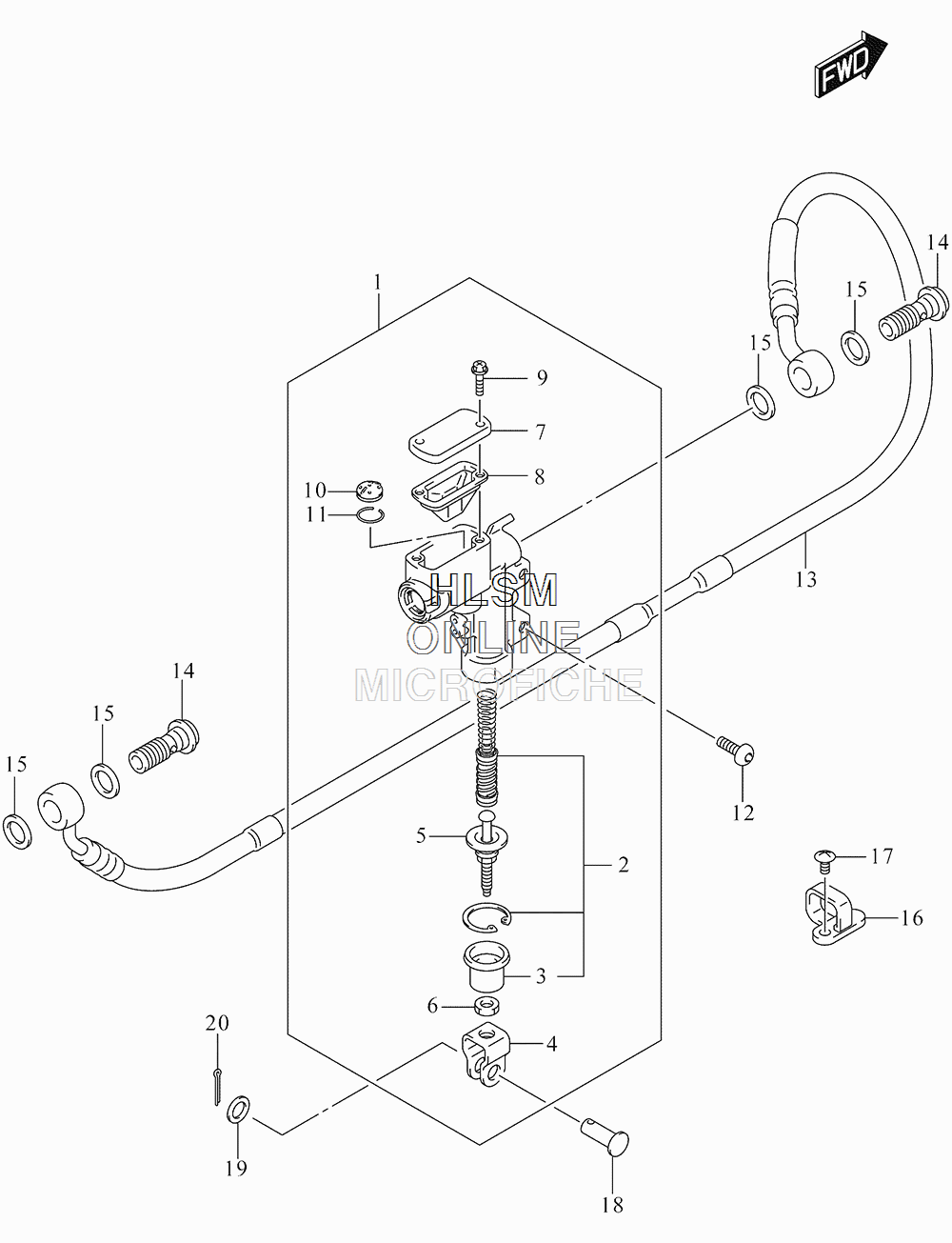

BRAKE - REAR MASTER CYLINDER для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска
-
№АртикулНазвание
-
169604-28H10 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-35811 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-35G00 YOKEYOKE
-
569670-28H00 ROD, PUSHROD, PUSH
-
651212-77500 NUTNUT
-
769669-28H00 CAPCAP
-
869667-37F20 DIAPHRAGMDIAPHRAGM
-
969689-37F30 SCREWSCREW
-
1059748-36E00 SEPARATORSEPARATOR
-
1169744-36E00 RINGRING
-
1209139-06139 SCREW (6X16)SCREW (6X16)
-
1369480-28H01 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1409360-10065 UNIONUNION
-
1509161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1661196-27C40 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
1702142-0510A SCREWSCREW
-
1809200-08048 PINPIN
-
1909160-08090 WASHER (8.5X14X1.6)WASHER (8.5X14X1.6)
-
2004111-2015A COTTER PINCOTTER PIN
