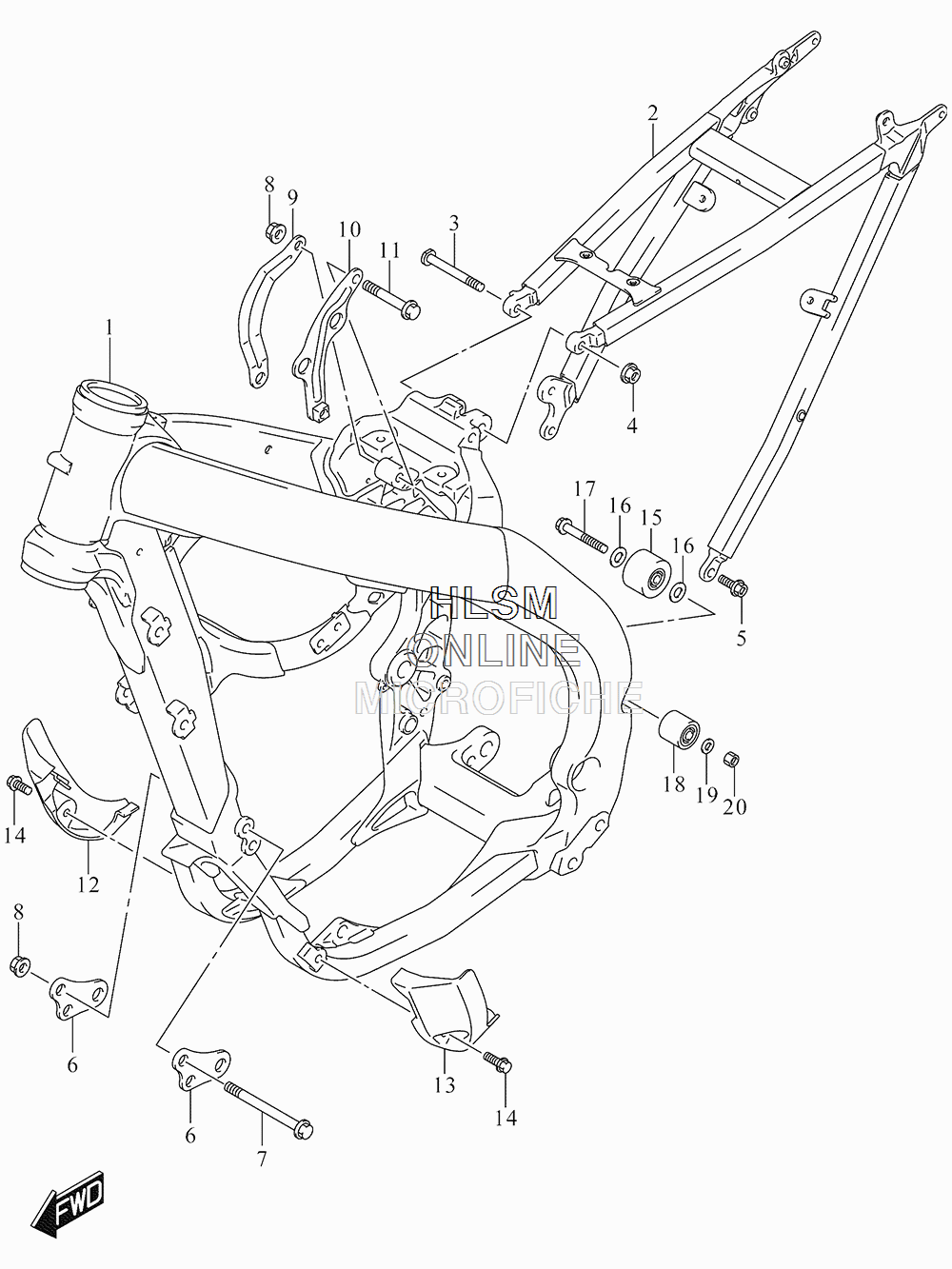

FRAME для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска
-
№АртикулНазвание
-
141100-49H21 FRAMEFRAME
-
241200-49H20 RAIL, SEATRAIL, SEAT
-
341311-28H20 BOLT, SEAT RAIL UPPERBOLT, SEAT RAIL UPPER
-
409159-08146 NUTNUT
-
509103-08426 BOLT (8X20)BOLT (8X20)
-
641911-49H20 BRACKET, ENGINE MOUNT FRONTBRACKET, ENGINE MOUNT FRONT
-
709103-08016 BOLT (8X80)BOLT (8X80)
-
809159-08146 NUTNUT
-
941931-49H20 BRACKET, ENG MOUNT UPPER RIGHT HANDBRACKET, ENG MOUNT UPPER RIGHT HAND
-
1041940-49H20 BRACKET, ENG MOUNT UPPER LEFT HANDBRACKET, ENG MOUNT UPPER LEFT HAND
-
1109103-08523 BOLT (8X40)BOLT (8X40)
-
1242520-10H10 PROTECTOR, FRONT RIGHT HANDPROTECTOR, FRONT RIGHT HAND
-
1342530-49H10 PROTECTOR, FRONT LEFT HANDPROTECTOR, FRONT LEFT HAND
-
1409116-06200 BOLT (6X16)BOLT (6X16)
-
1543910-27C11 ROLLER, CHAIN UPPERROLLER, CHAIN UPPER
-
1609181-08167 SHIM (8X16X1)SHIM (8X16X1)
-
1709103-08207 BOLT (8X45)BOLT (8X45)
-
1843910-35G00 ROLLER, CHAIN LOWERROLLER, CHAIN LOWER
-
1909181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
2008319-2108A NUTNUT
