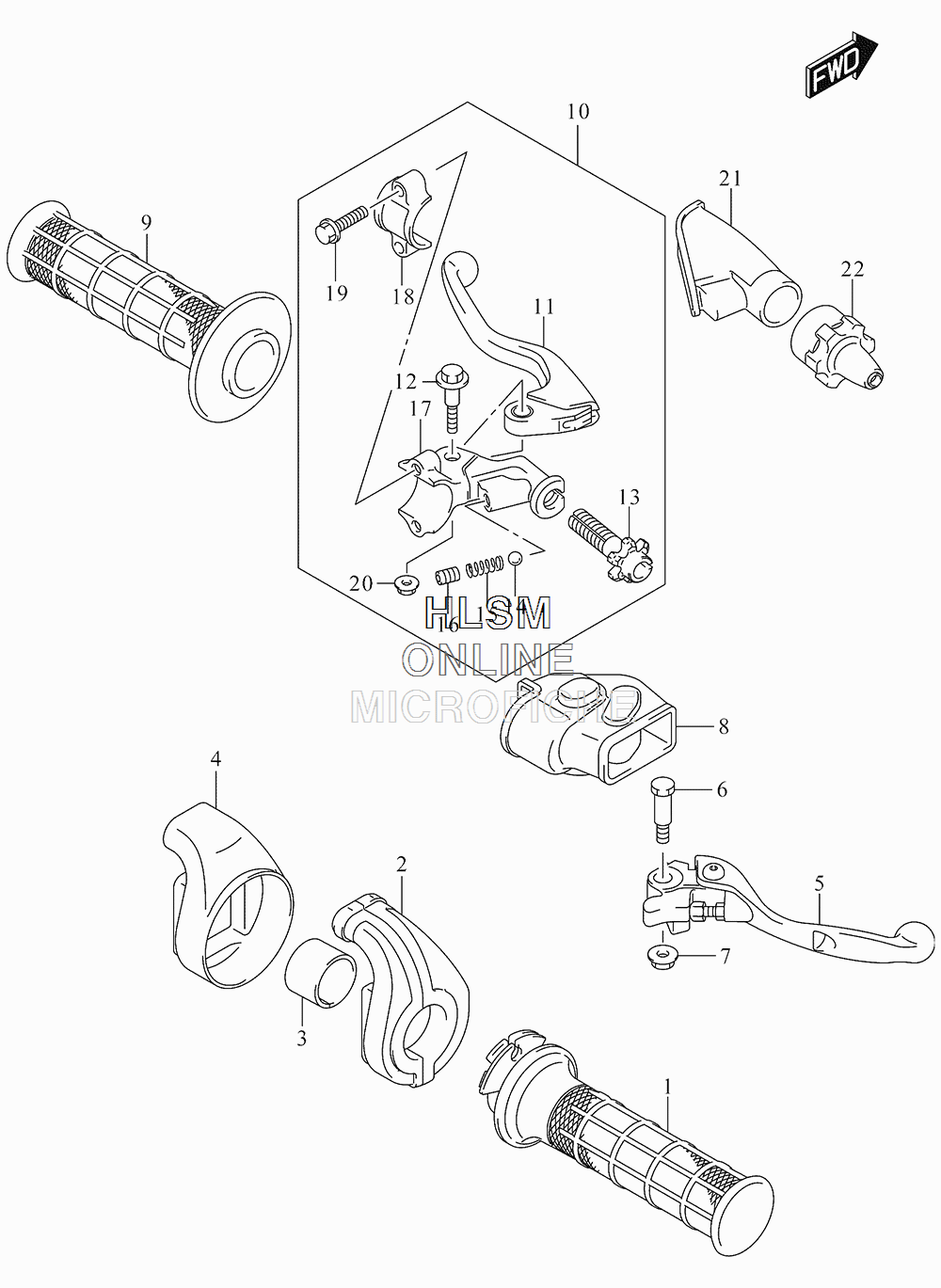

HANDLEBAR - LEVERS для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска
-
№АртикулНазвание
-
157110-10H10 GRIP, THROTTLEGRIP, THROTTLE
-
257100-10H00 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357151-35G00 COLLAR, THROTTLE CASECOLLAR, THROTTLE CASE
-
457129-35G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
557310-37F00 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
657431-14500 BOLTBOLT
-
708316-1006A NUTNUT
-
857343-35G00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
957211-28H00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1057500-28H00 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1157621-35G10 LEVER, CLUTCHLEVER, CLUTCH
-
1257431-35G00 BOLTBOLT
-
1357441-37F00 ADJUSTER, CLUTCH CABLEADJUSTER, CLUTCH CABLE
-
1406111-06003 BALLBALL
-
1509440-04010 SPRINGSPRING
-
1609134-06009 SCREW (6X8)SCREW (6X8)
-
1757511-28H00 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1857512-28C00 BRACKET, CLUTCH LEVER HOLDERBRACKET, CLUTCH LEVER HOLDER
-
1957513-29F10 BOLTBOLT
-
2008310-00057 NUTNUT
-
2157341-28H00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
-
2257342-37F00 COVER, CLUTCH ADJUSTERCOVER, CLUTCH ADJUSTER
