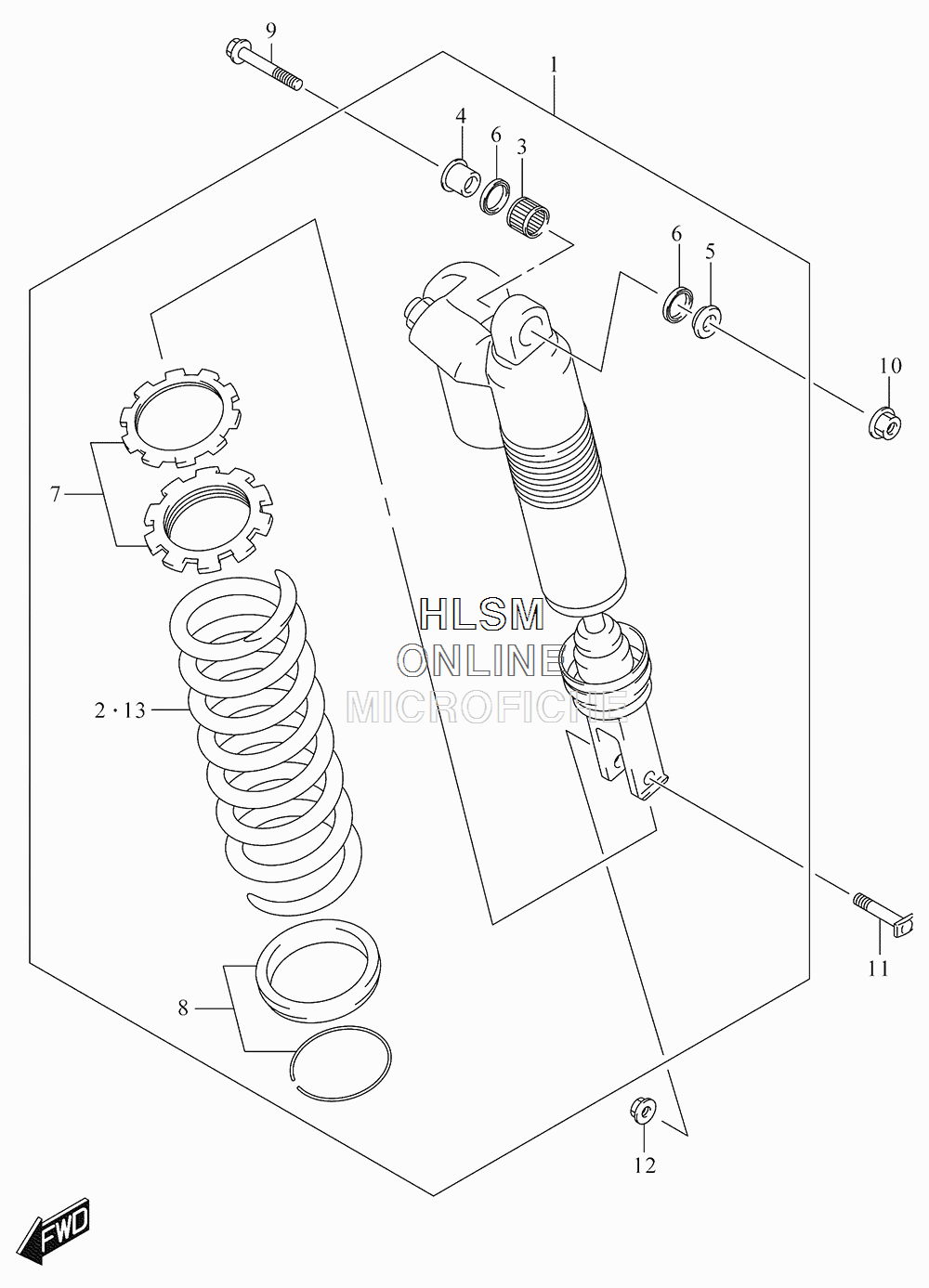

SUSPENSION - SHOCKS REAR для Suzuki RM-Z250 [RMZ250L5] - 2015 года выпуска
-
№АртикулНазвание
-
162100-49HD0-YKS ABSORBER ASSY,RR SHOCK (RED)ABSORBER ASSY,RR SHOCK (RED)
-
262211-49H60 SPRINGSPRING
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, UPPER BEARING RIGHT HANDSPACER, UPPER BEARING RIGHT HAND
-
562685-36F00 SPACER, UPPER BEARING LEFT HANDSPACER, UPPER BEARING LEFT HAND
-
609284-16005 OIL SEAL (16X22X2.5)OIL SEAL (16X22X2.5)
-
762190-28H90 ADJUSTER SETADJUSTER SET
-
862220-36F00 SPRING SEAT SETSPRING SEAT SET
-
962311-28H00 BOLT, RR SHOCK ABSORBER UPRBOLT, RR SHOCK ABSORBER UPR
-
1009159-10122 NUTNUT
-
1162221-37F30 BOLT, RR SHOCK ABSORBER LWRBOLT, RR SHOCK ABSORBER LWR
-
1209159-10067 NUTNUT
-
1362211-37FK0 SPRING (SOFT) (OPT)SPRING (SOFT) (OPT)
-
1362211-28H90 SPRING (HARD) (OPT)SPRING (HARD) (OPT)
