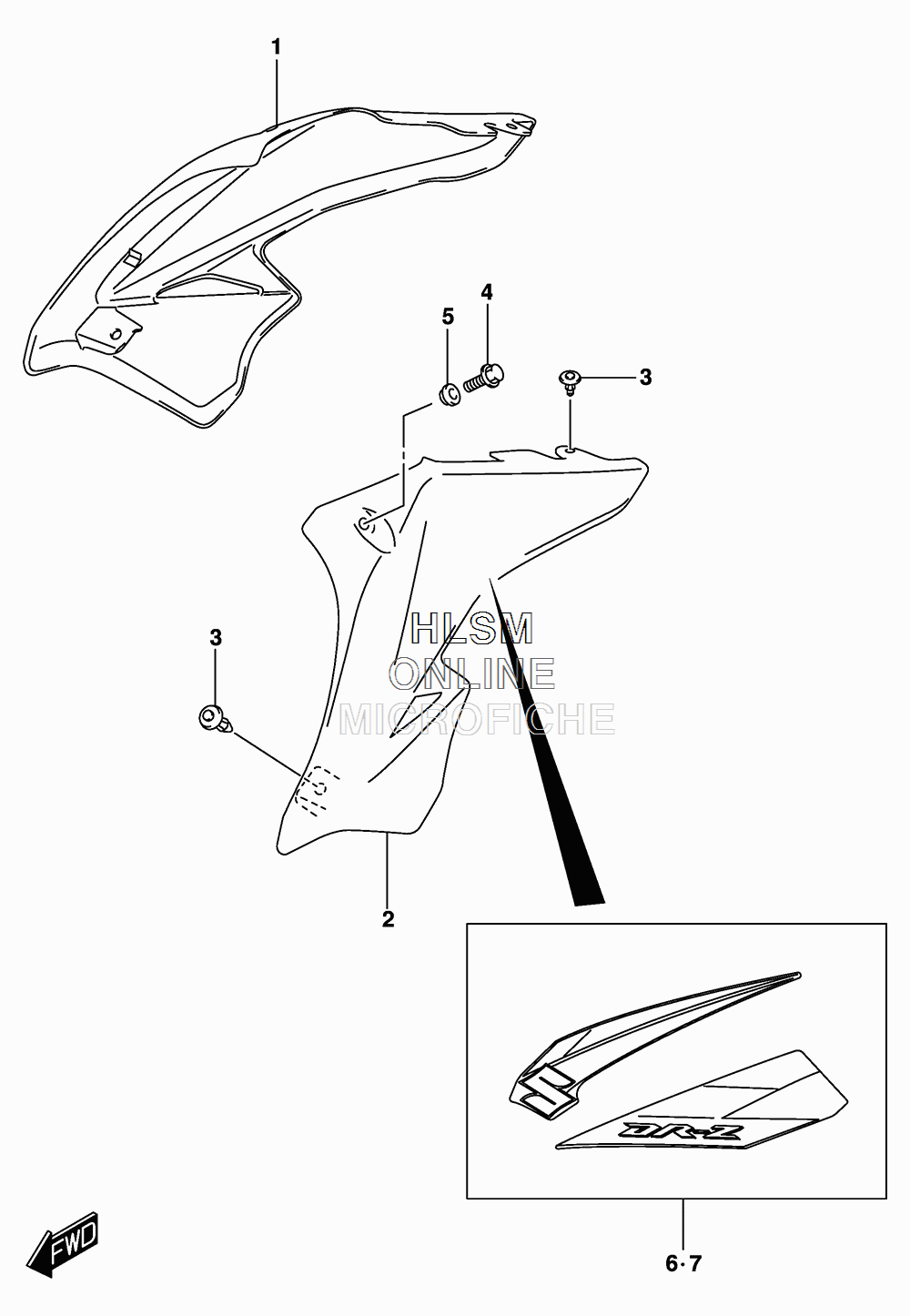

FUEL TANK COVER для Suzuki DR-Z70 - 2016 года выпуска
-
№АртикулНазвание
-
144271-14H00-YU1 COVER, FUEL TANK RH (YELLOW)COVER, FUEL TANK RH (YELLOW)
-
244281-14H00-YU1 COVER, FUEL TANK LH (YELLOW)COVER, FUEL TANK LH (YELLOW)
-
309409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
401547-0616A BOLTBOLT
-
509169-06081 WASHERWASHER
-
668110-14H10-KGH TAPE SET, FUEL TANK COVER RHTAPE SET, FUEL TANK COVER RH
-
768120-14H10-KGH TAPE SET, FUEL TANK COVER LHTAPE SET, FUEL TANK COVER LH
