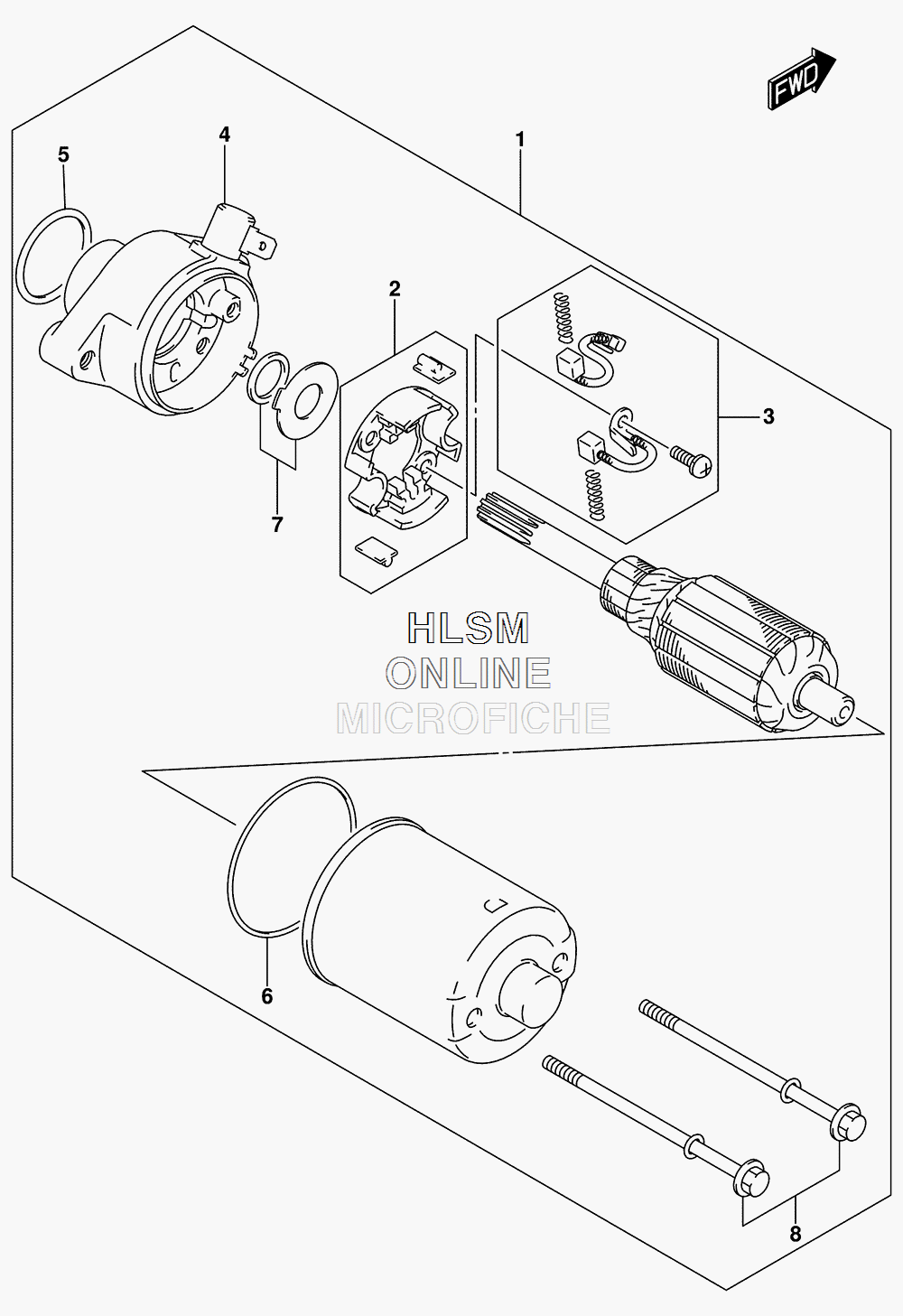

STARTING MOTOR для Suzuki DR-Z70 - 2016 года выпуска
-
№АртикулНазвание
-
131100-30D00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-35400 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
331131-35400 ...BRUSH SET...BRUSH SET
-
431151-30D01 ...HOUSING ASSY...HOUSING ASSY
-
509280-25004 ...O RING (D:2.4,ID:24.7)...O RING (D:2.4,ID:24.7)
-
631158-35400 ...O RING...O RING
-
731170-43400 ...SHIM SET...SHIM SET
-
831280-31C00 ...BOLT SET...BOLT SET
Все узлы модели:
- ACCESSORIES
- AIR CLEANER
- BATTERY HOLDER
- BRAKE PEDAL W/ STAND
- CAM CHAIN ASSY. W/ TENSIONER
- CAMSHAFT W/ VALVES
- CARBURETOR ASSY.
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS - WARNING LABEL
- DECALS - WARNING LABEL (CAN)
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- ELECTRICAL - WIRING HARNESS (CALIF)
- FENDER - FRONT
- FOOTREST
- FRAME
- FUEL TANK
- FUEL TANK COVER
- GASKET KIT
- GEAR SHIFTING
- HANDLE LEVER
- HANDLEBAR
- KICK STARTER
- MAGNETO
- MUFFLER
- OIL PUMP
- REAR SWINGARM
- REFLECTOR
- SEAT
- SIDE COVER
- STARTER CLUTCH
- • STARTING MOTOR
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR DAMPER
- SUSPENSION - SHOCKS REAR
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
